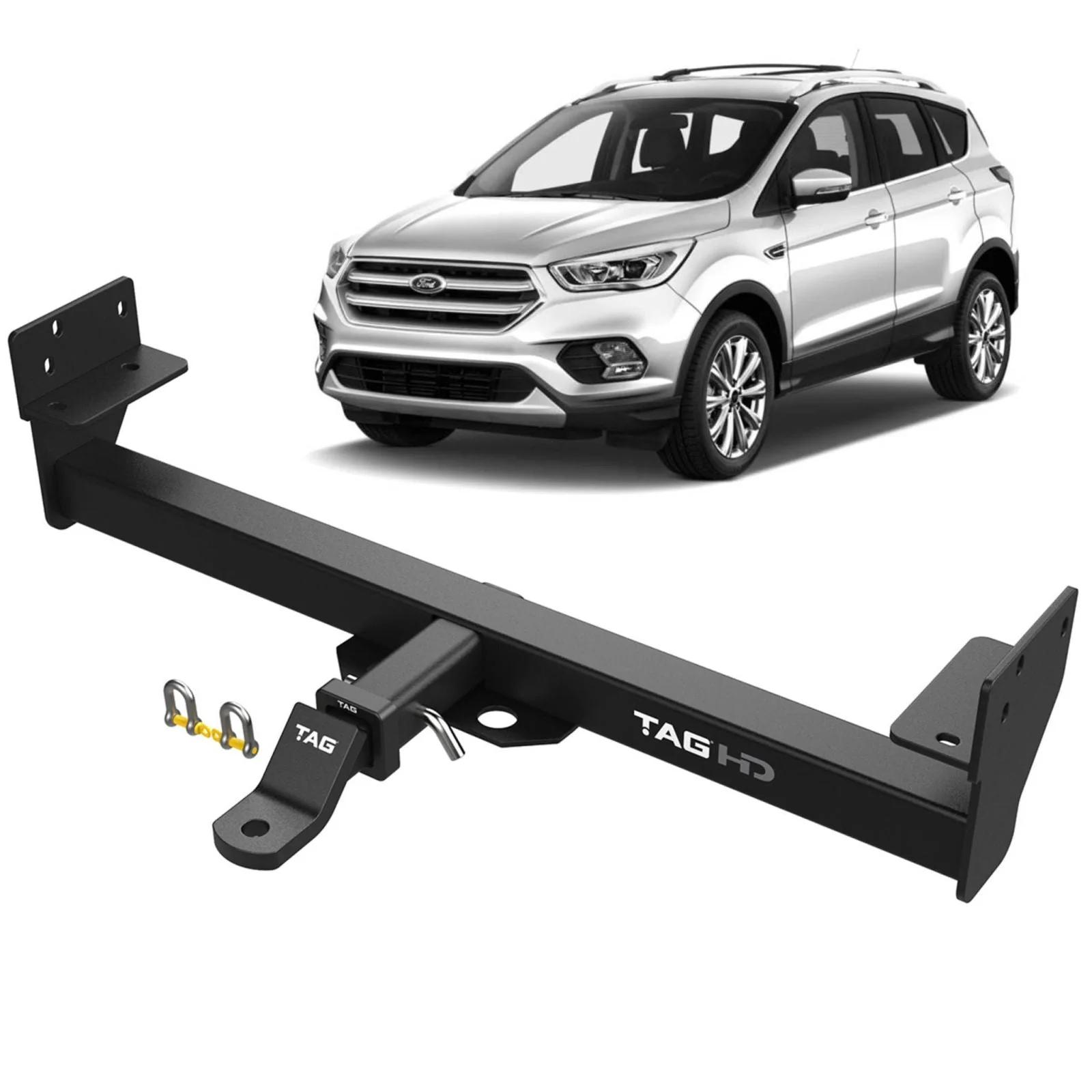

TAG Heavy Duty Towbar & Direct Fit Wiring Harness (T4F655-K101)

This TAG Heavy Duty Towbar and Direct Fit Wiring Kit (T4F655-K101) provides a towing capacity of 1800kg and is designed for the Ford Escape ZG models built from 09/2016 to 04/2020. The towbar is concealed when fitted but requires both bumper removal and a bumper cut out during installation.

This Kit Includes:

TAG Heavy Duty Towbar (T4F655)

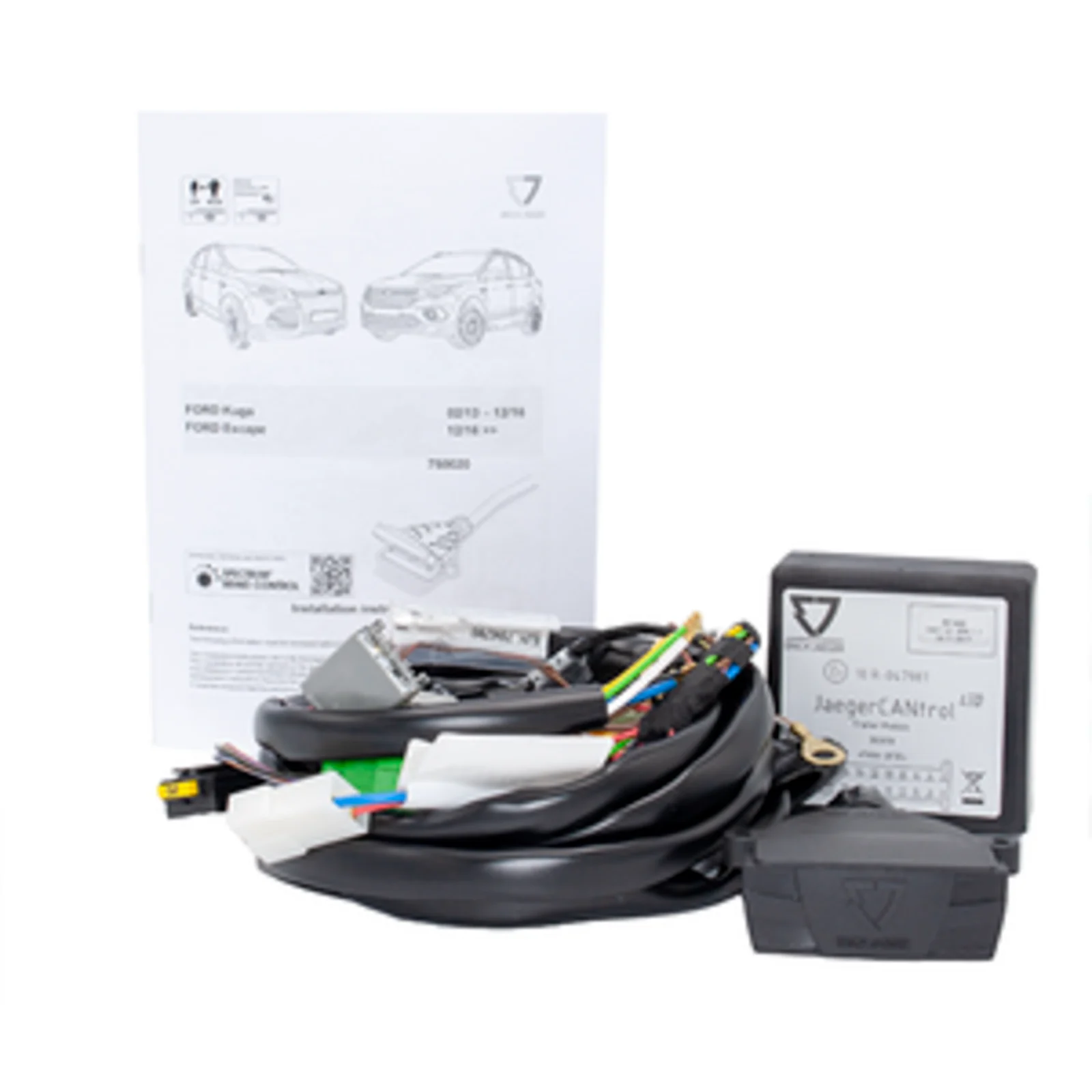

Erich Jaeger Direct Fit CAN-Bus Wiring Harness

TAG Heavy Duty Towbars are designed and manufactured in Australia and feature:

Factory Mounting Points for ease of fitment
Durable Powder Coated Finish (Enamel Immersion Dipped Coating).
Class 4, 50mm x 50mm Hitch Receiver
Tow Ball Mount: L4180
TAG Limited Lifetime Warranty
Towbar includes - Tow Ball, Tow Ball Mount, Hitch Pin & R-Clip and D-Shackles

Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.

Specifications:

Towbar Class: Heavy Duty
Towbar Capacity [kg]: 1800
Static Load Capacity (Ball Weight) [kg]: 180
Hitch Type: 50mm Square Hitch Receiver
Coating: Enamel Immersion Dipped (Durable Powder Coated Finish)
Exposure: Concealed
Bumper Cut Out Required: Yes
Bumper Removed During Fitment: Yes
Towbar Fitting Time [min.]: 90 (T4F655)

Wiring Specifics:

Wiring Option: Direct Fit CAN-Bus Wiring Harness (Erich Jaeger)
Wiring Fitting Time [min.]: 120 (750020EJ)
Diagnostic Coding: Optional
Reverse Sensor Cut Off: Automatic
Fog Cut Off: Automatic

Important Information

The image shown may not reflect the actual product
Shipping times may vary depending on destination and stock availability

Vehicle Applications (Full Details)

Make	Model	Year Start - Year End	Body Type	Series	Engine Details	Drivetrain	Variant
Ford Escape (09/2016 - 04/2020) ZG Series
FORD	ESCAPE	09/2016 - 04/2020	Wagon	ZG	1.5L \| -		Ambiente
FORD	ESCAPE	09/2016 - 04/2020	Wagon	ZG	1.5L \| -		Ambiente\| Trend
FORD	ESCAPE	09/2016 - 04/2020	Wagon	ZG	2.0L \| -		Ambiente\| Trend\| Titanium
FORD	ESCAPE	09/2016 - 04/2020	Wagon	ZG	2.0L \| -		Trend\| Titanium
FORD	ESCAPE	09/2016 - 04/2020	Wagon	ZG	1.5L \| Petrol	AWD	Ambiente
FORD	ESCAPE	09/2016 - 04/2020	Wagon	ZG	M9MA \| 1.5L \| Petrol	AWD	AMBIENTE
FORD	ESCAPE	09/2016 - 04/2020	Wagon	ZG	M9MA \| 1.5L \| Petrol	FWD	AMBIENTE
FORD	ESCAPE	09/2016 - 04/2020	Wagon	ZG	1.5L \| Petrol	FWD	Ambiente\| Trend
FORD	ESCAPE	09/2016 - 04/2020	Wagon	ZG	2.0L \| Petrol	AWD	Ambiente\| Trend\| Titanium
FORD	ESCAPE	09/2016 - 04/2020	Wagon	ZG	2.0L \| Diesel	AWD	Trend\| Titanium
FORD	ESCAPE	09/2016 - 04/2020	Wagon	ZG	T8MB \| 2.0L \| Diesel	AWD
FORD	ESCAPE	09/2016 - 04/2020	Wagon	ZG	TPMB \| 2.0L \| Petrol	AWD
FORD	ESCAPE	09/2016 - 04/2020	Wagon	ZG	M8MA \| 1.5L \| Petrol	FWD
FORD	ESCAPE	09/2016 - 04/2020	SUV	ZG	TPWA \| 2.0L \| Petrol	AWD
FORD	ESCAPE	09/2016 - 04/2020	SUV	ZG	M9MA \| 1.5L \| Petrol	AWD	EcoBoost
FORD	ESCAPE	09/2016 - 04/2020	SUV	ZG	M8MA \| 1.5L \| Petrol	FWD	EcoBoost
FORD	ESCAPE	09/2016 - 04/2020	SUV	ZG	M9MA \| 1.5L \| Petrol	FWD	EcoBoost
FORD	ESCAPE	09/2016 - 04/2020	SUV	ZG	T8MA, T8MB \| 2.0L \| Diesel	AWD	TDCi
