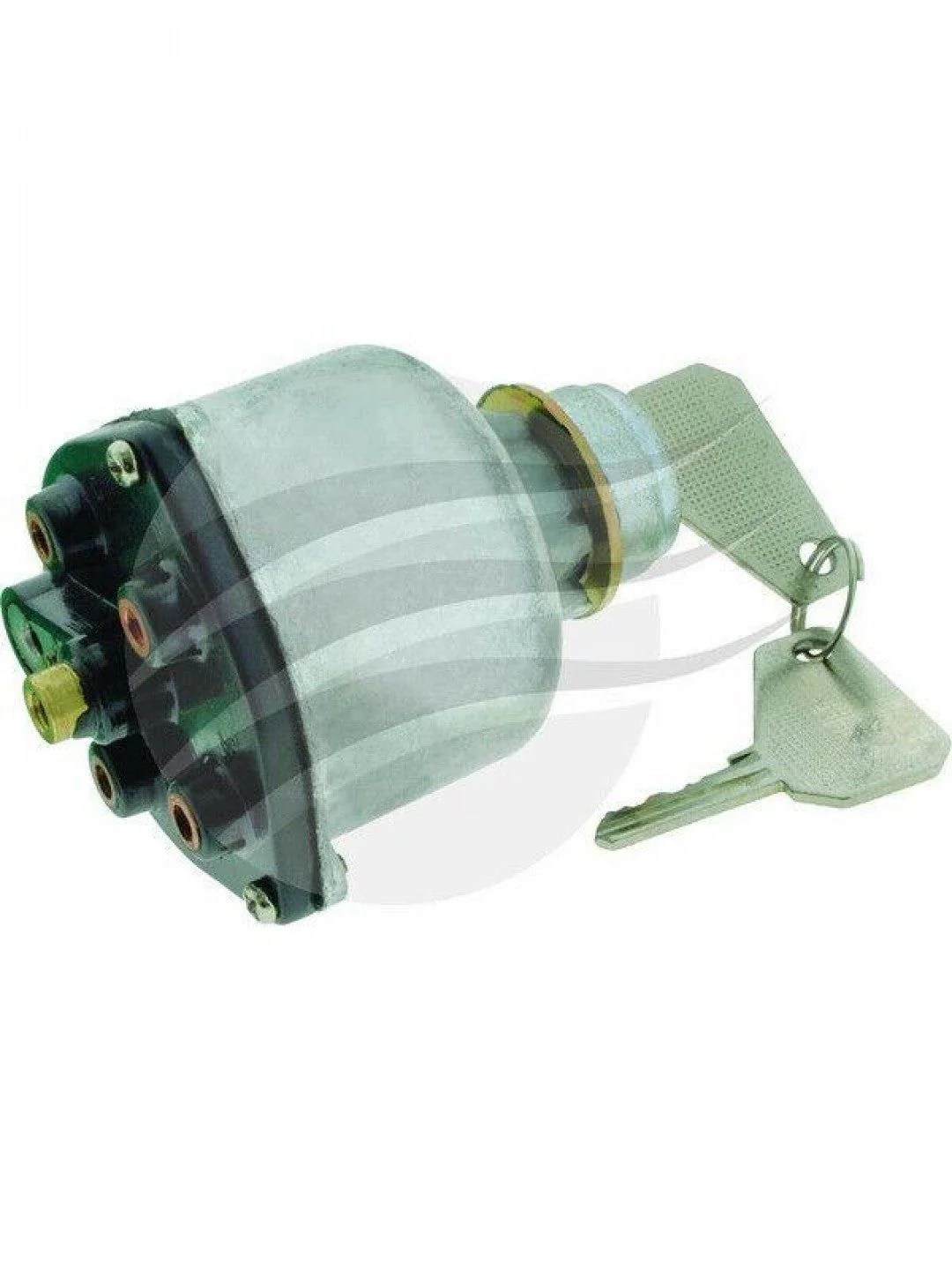

Jaylec - Ignition Switch 12 Volts 30 Amps 4 Pos
Jaylec Diesel Ignition Switch 12/24 Volt 30amp.
4 Position - Glow/Off/Glow/Glow Start- 2 keys- spring return to Ign.
Maximum Load all at 12 Volt: 30amp at Ignition Run - Glow- 5amp at Start.
Key is only removable in the Off position.
Copper Contacts- Corrosion resistant Die-cast housing.
6 Screw terminals.
Mounting Stem: 22.00mm long with a 3/4"-24 thread and 19.00mm diameter.-Suits panel thickness 1.52mm to 9.52mm.-1 year Warranty.--Applications:-Isuzu and Nissan Trucks.-SW9412BL-Jaylec
| Specifications | |
| Voltage | 12 - 24 VOLT |
| Amps | 30 |
| Function | GLOW / OFF / GLOW START |
| Number of Terminals | 6 |
| Number of Postions | 4 |
$33.16
Jaylec - Ignition Switch 12 Volts 30 Amps 4 Pos—
$33.16
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Jaylec Diesel Ignition Switch 12/24 Volt 30amp.
4 Position - Glow/Off/Glow/Glow Start- 2 keys- spring return to Ign.
Maximum Load all at 12 Volt: 30amp at Ignition Run - Glow- 5amp at Start.
Key is only removable in the Off position.
Copper Contacts- Corrosion resistant Die-cast housing.
6 Screw terminals.
Mounting Stem: 22.00mm long with a 3/4"-24 thread and 19.00mm diameter.-Suits panel thickness 1.52mm to 9.52mm.-1 year Warranty.--Applications:-Isuzu and Nissan Trucks.-SW9412BL-Jaylec
| Specifications | |
| Voltage | 12 - 24 VOLT |
| Amps | 30 |
| Function | GLOW / OFF / GLOW START |
| Number of Terminals | 6 |
| Number of Postions | 4 |
