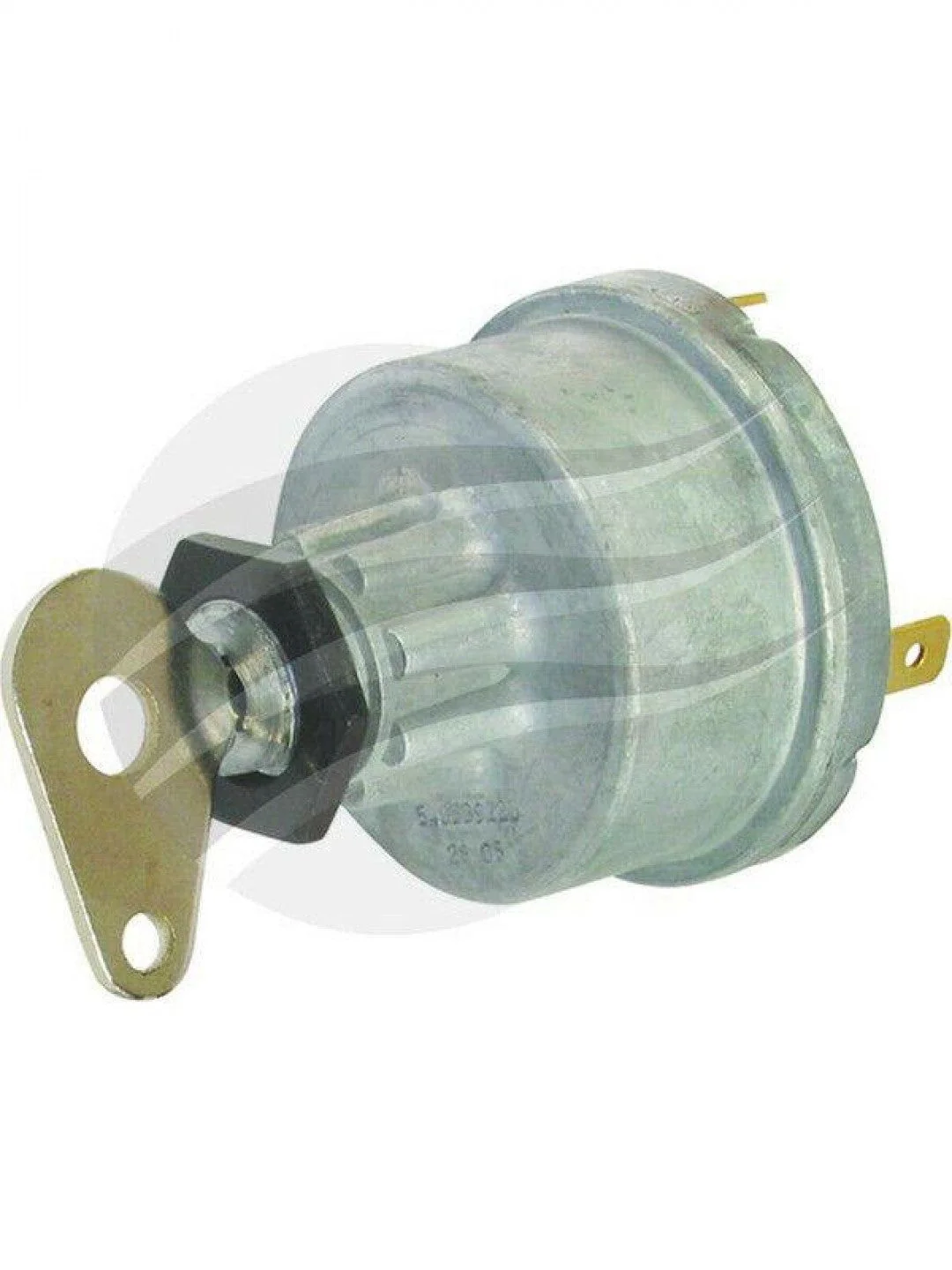

Jaylec - Ignition Switch Diesel Pre-Heat 12/24 Volts 50 Amps 4 Pos 6 Terms

Product image 1

Jaylec - Ignition Switch Diesel Pre-Heat 12/24 Volts 50 Amps 4 Pos 6 Terms

Lucas Diesel Ignition Switch 12/24 Volt 50amp.
Lucas Part No. 35670
4 Position - Off/Glow/Glow Start- 2 keys- spring return to Ign.
Maximum Load all at 12 Volt: 50amp at Ignition Run - Glow- 5amp at Start.
Key is only removable in the Off position.
Copper Contacts- Corrosion resistant Die-cast housing.
6 Brass Blade terminals.
Mounting Stem: 22.00mm long with a 3/4"-24 thread and 15.80mm diameter.-Suits panel thickness 1.52mm to 6.65mm.-Replaces Lucas Part No. 34228
KS34228.-1 year Warranty.-Applications:-Massey Ferguson Tractors.-SW9601-Lucas
Specifications
Voltage 12 - 24 VOLT
Amps 50
Function OFF / GLOW / GLOW START
Number of Terminals 6
Number of Postions 4
$27.39
Jaylec - Ignition Switch Diesel Pre-Heat 12/24 Volts 50 Amps 4 Pos 6 Terms
$27.39

Product Information

Shipping & Returns

Description

Lucas Diesel Ignition Switch 12/24 Volt 50amp.
Lucas Part No. 35670
4 Position - Off/Glow/Glow Start- 2 keys- spring return to Ign.
Maximum Load all at 12 Volt: 50amp at Ignition Run - Glow- 5amp at Start.
Key is only removable in the Off position.
Copper Contacts- Corrosion resistant Die-cast housing.
6 Brass Blade terminals.
Mounting Stem: 22.00mm long with a 3/4"-24 thread and 15.80mm diameter.-Suits panel thickness 1.52mm to 6.65mm.-Replaces Lucas Part No. 34228
KS34228.-1 year Warranty.-Applications:-Massey Ferguson Tractors.-SW9601-Lucas
Specifications
Voltage 12 - 24 VOLT
Amps 50
Function OFF / GLOW / GLOW START
Number of Terminals 6
Number of Postions 4
