Jaylec - Starter 12 Volts 1.2Kw 9T Cw John Deere Yanmar Marine Inboard

Product image 1

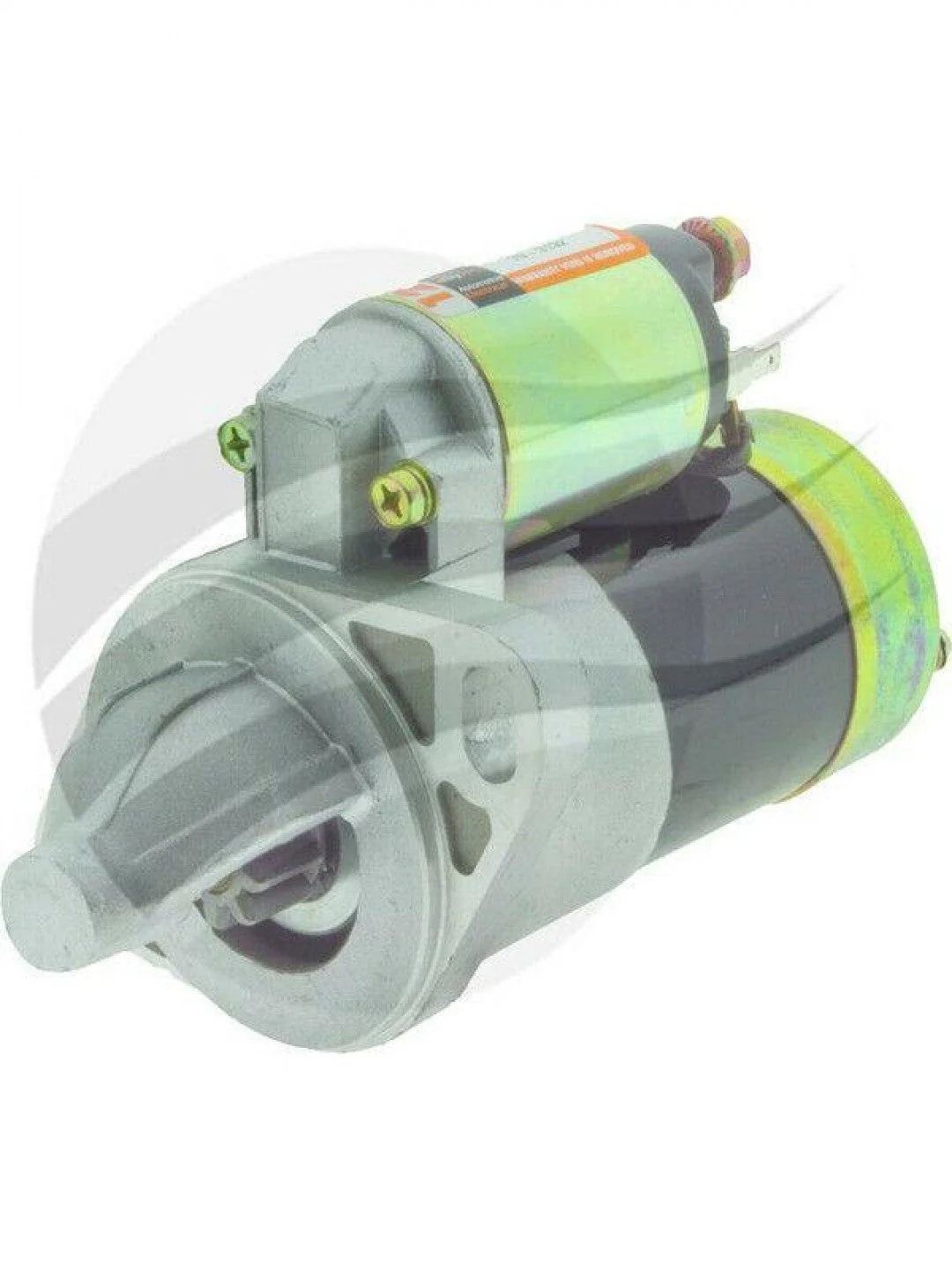

Jaylec - Starter 12 Volts 1.2Kw 9T Cw John Deere Yanmar Marine Inboard

CHECK OVERALL LENGTH OF
STARTER AS MAY NOT FIT SOME
THERMOKING APPS WITH
YANMAR ENGINES.
Specifications
Voltage 12V
Kilowatt 1.2kW
Number of Teeth 9T
Pinion Diameter 29mm
Rotation CW
Pinion at Rest 17mm
Flange Diameter 89mm
Mount Hole Center to Center 126mm
Mount Hole Diameter 11mm
Overall Length 210mm
Oil Sealed
Series PMGR
Ground NEGATIVE
Housing Index FIXED
Weight (Kg) 4.0kg

Cross-reference parts
  • AM809215
    • ,
  • AM879204
    • ,
  • TY25238
    • ,
  • AM880978
$190.32
Jaylec - Starter 12 Volts 1.2Kw 9T Cw John Deere Yanmar Marine Inboard—
$190.32

Product Information

Shipping & Returns

Description

CHECK OVERALL LENGTH OF
STARTER AS MAY NOT FIT SOME
THERMOKING APPS WITH
YANMAR ENGINES.
Specifications
Voltage 12V
Kilowatt 1.2kW
Number of Teeth 9T
Pinion Diameter 29mm
Rotation CW
Pinion at Rest 17mm
Flange Diameter 89mm
Mount Hole Center to Center 126mm
Mount Hole Diameter 11mm
Overall Length 210mm
Oil Sealed
Series PMGR
Ground NEGATIVE
Housing Index FIXED
Weight (Kg) 4.0kg

Cross-reference parts
  • AM809215
    • ,
  • AM879204
    • ,
  • TY25238
    • ,
  • AM880978
