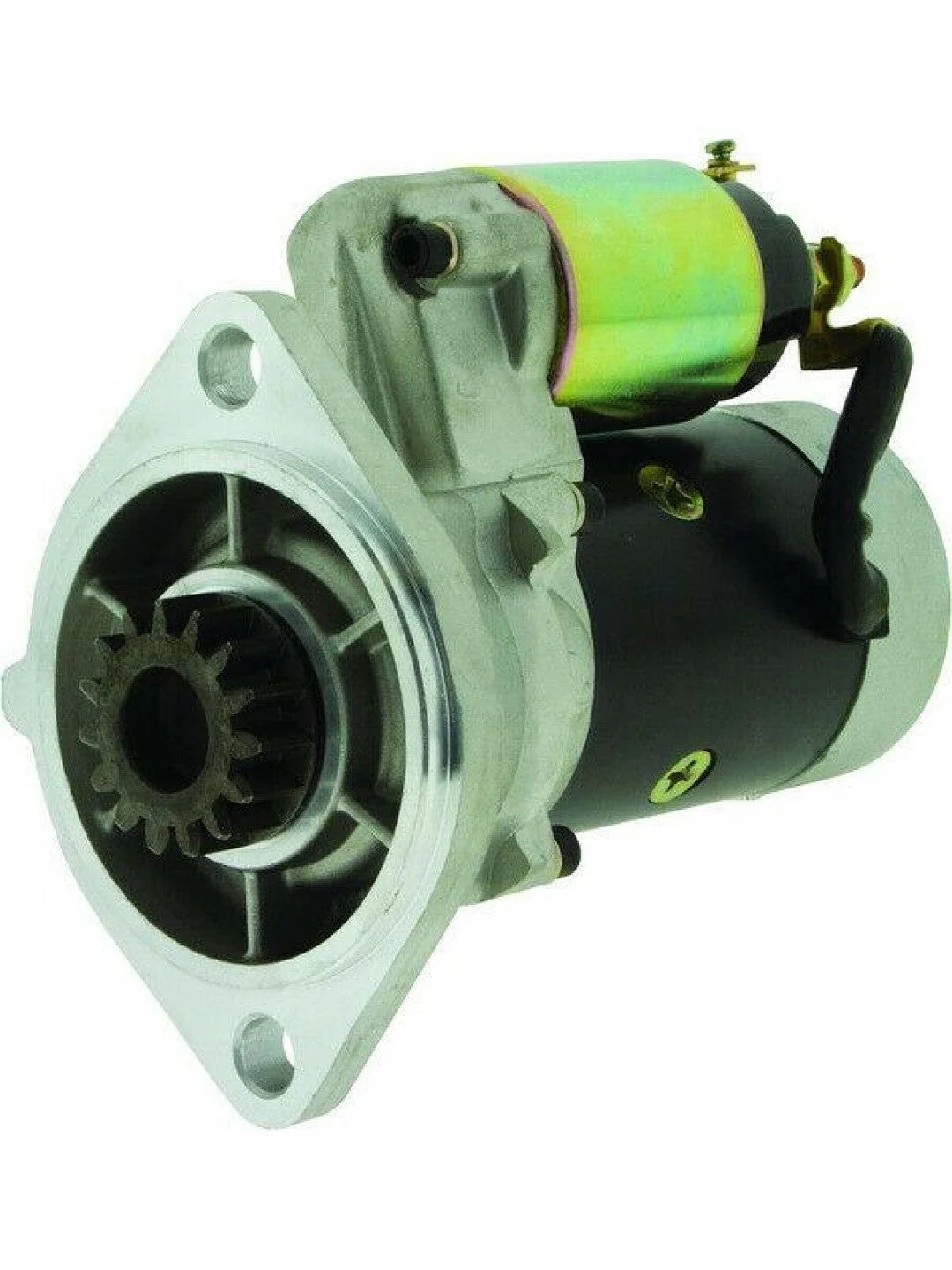

Jaylec - Starter 12 Volts 15Th Case Yanmar 2.2Kw Style Unit
| Specifications | |
| Voltage | 12V |
| Kilowatt | 2.2kW |
| Number of Teeth | 15T |
| Pinion Diameter | 44mm |
| Rotation | CW |
| Pinion at Rest | 20mm |
| Flange Diameter | 95mm |
| Mount Hole Center to Center | 120mm |
| Mount Hole Diameter | 13mm |
| Overall Length | 223mm |
| Oil Sealed | |
| Series | OSGR |
| Ground | NEGATIVE |
| Housing Index | FIXED |
| Weight (Kg) | 5.5kg |
