Jaylec - Starter Suzuki Vitara G13B 12 Volts 8Th M15A 1987 - On

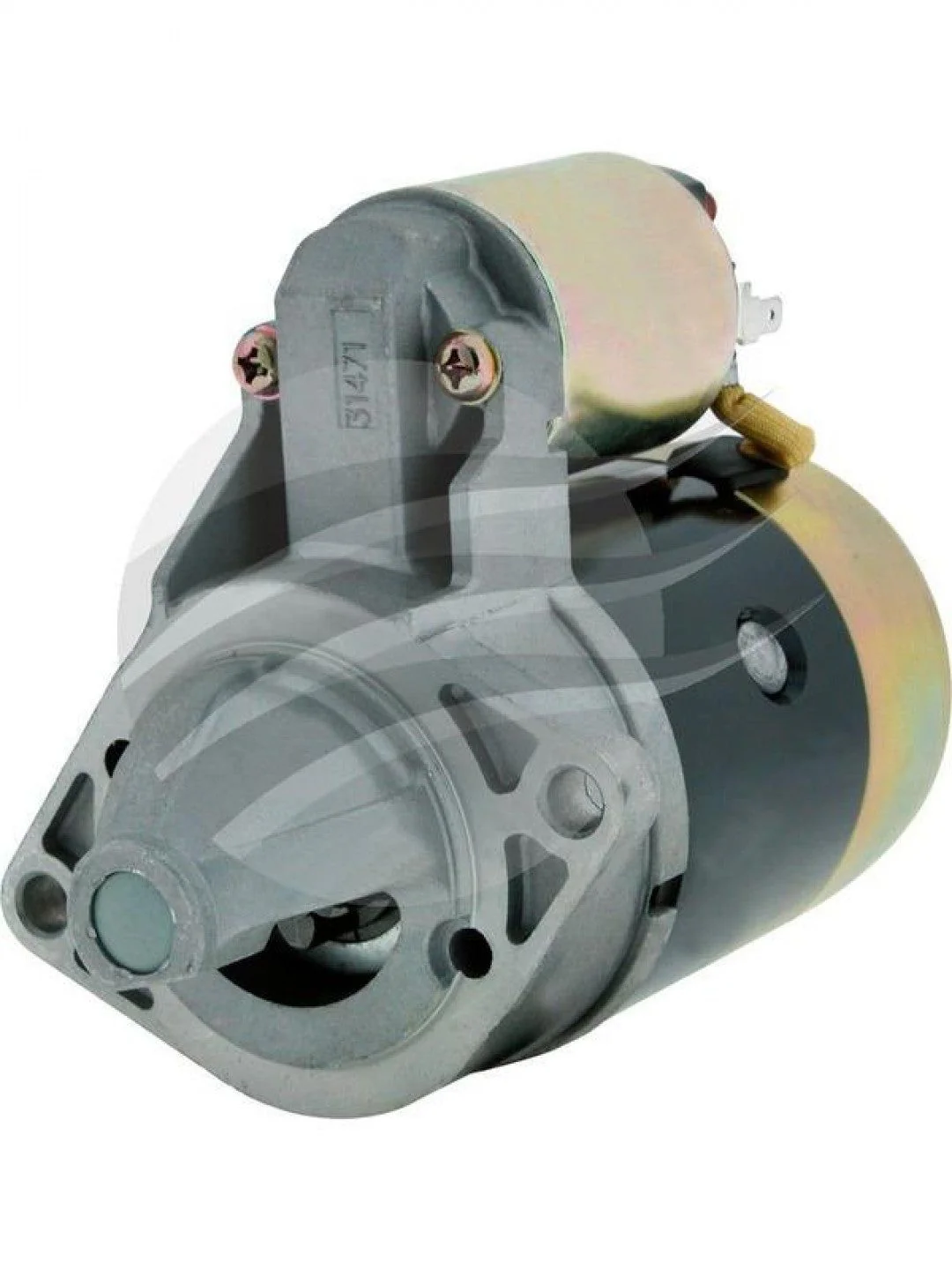

Product image 1

Jaylec - Starter Suzuki Vitara G13B 12 Volts 8Th M15A 1987 - On

Specifications
Voltage 12V
Kilowatt 0.8kW
Number of Teeth 8T
Pinion Diameter 28mm
Rotation CW
Pinion at Rest 4mm
Flange Diameter 66mm
Mount Hole Center to Center 105mm
Mount Hole Diameter 9mm
Overall Length 189mm
Oil Sealed
Series
Ground NEGATIVE
Housing Index FIXED
Weight (Kg)

Cross-reference parts
  • 3110083031
    • ,
  • 1A5118400
    • ,
  • M001T74583ZC
    • ,
  • M001T72483ZC
    • ,
  • M003T34781
    • ,
  • M3T38981
    • ,
  • M003T34782
    • ,
  • M1T72481ZC
    • ,
  • M001T74583
    • ,
  • M1T74583ZC
    • ,
  • M001T72481ZC
    • ,
  • M1T72483
    • ,
  • M3T34781
    • ,
  • M001T72481
    • ,
  • M003T38981
    • ,
  • M1T74581
    • ,
  • M1T72481
    • ,
  • M1T72483ZC
    • ,
  • M001T74581
    • ,
  • M003T41781
    • ,
  • M3T34782
    • ,
  • M1T74583
    • ,
  • M001T72483
    • ,
  • 3110060A20
    • ,
  • 31100A83010
    • ,
  • 3110083010
    • ,
  • 3110083030
    • ,
  • 3110083011
    • ,
  • 31100A83031
    • ,
  • 3110060AB2
    • ,
  • 3110060A13
    • ,
  • 3110060A12
    • ,
  • 3110082021
    • ,
  • 3110060AC2
    • ,
  • 3110083021
    • ,
  • 3110060A10000
    • ,
  • 3110060A20000
    • ,
  • 3110060A10
$162.92
Jaylec - Starter Suzuki Vitara G13B 12 Volts 8Th M15A 1987 - On—
$162.92
