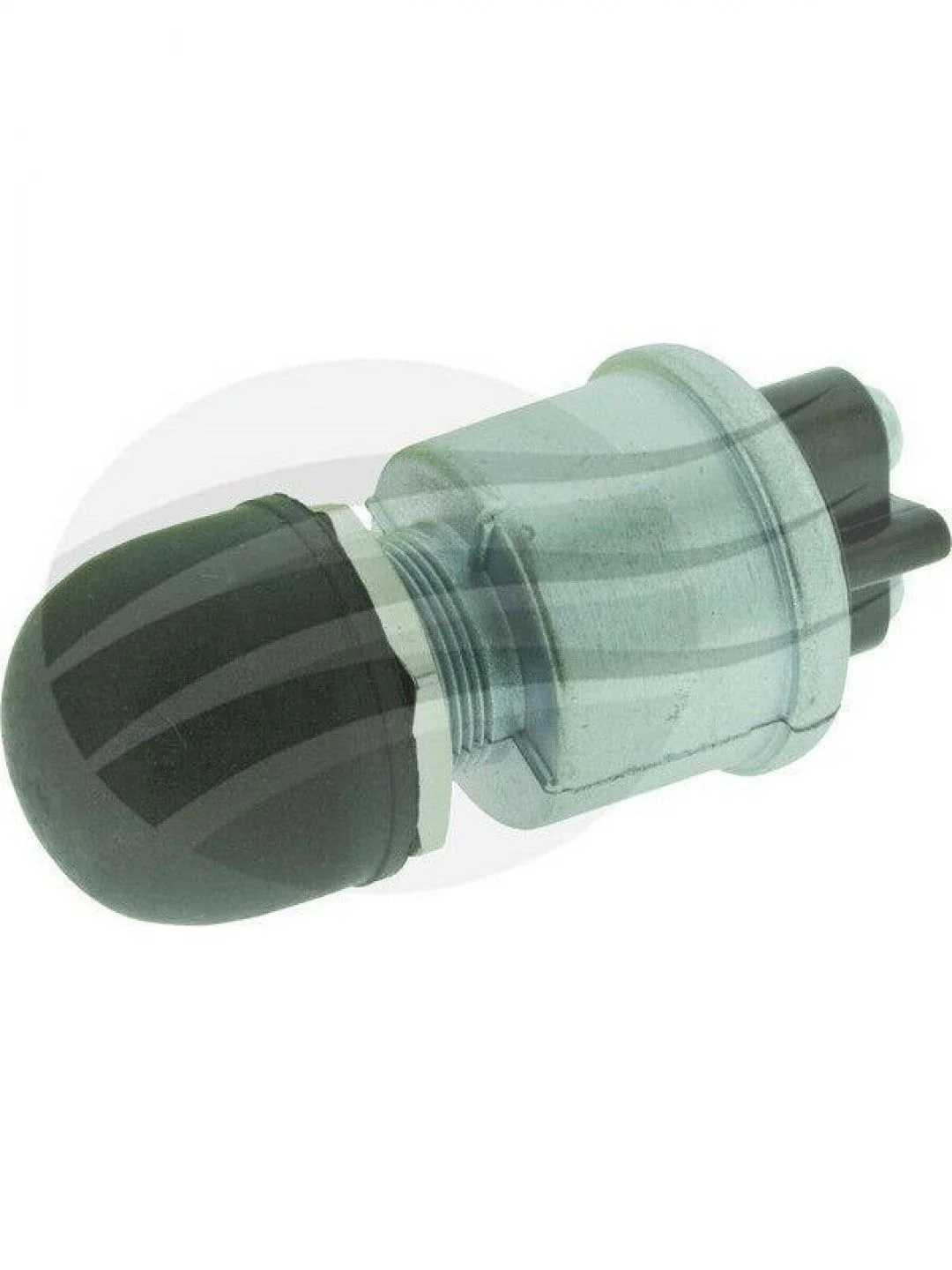

Jaylec - Switch Push Button HD Off/ Mom On 12 Volts 60 Amps
Jaylec Push Button Switch Off / Mom On 12/24 Volt 60amp
2 Position - Of f /Mom On
Single Pole - Single Throw
Maximum Load: 60amp at 12 Volt, 30amp at 24 Volt
Protective Weather / Dust proof Rubber (Neoprene) Cap Actuator
On with actuator pressed - spring return to Off position
Silver Contacts
2 Screw Terminals
Mounting Stem: 16.00mm long with a 5/8"-32UNF Thread and 15.87mm diameter
Suits panel thickness 1.52mm to 6.35mm
Dimensions:- 59mm x 28.45mm
1 year Warranty
| Specifications | |
| Voltage | 12 - 24 VOLT |
| Amps | 60 |
| Function | OFF / MOM ON |
| Number of Terminals | 2 |
| Number of Postions | 2 |
| Contact Configuration | SPST |
$7.32
Original: $20.91
-65%Jaylec - Switch Push Button HD Off/ Mom On 12 Volts 60 Amps—
$20.91
$7.32Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Jaylec Push Button Switch Off / Mom On 12/24 Volt 60amp
2 Position - Of f /Mom On
Single Pole - Single Throw
Maximum Load: 60amp at 12 Volt, 30amp at 24 Volt
Protective Weather / Dust proof Rubber (Neoprene) Cap Actuator
On with actuator pressed - spring return to Off position
Silver Contacts
2 Screw Terminals
Mounting Stem: 16.00mm long with a 5/8"-32UNF Thread and 15.87mm diameter
Suits panel thickness 1.52mm to 6.35mm
Dimensions:- 59mm x 28.45mm
1 year Warranty
| Specifications | |
| Voltage | 12 - 24 VOLT |
| Amps | 60 |
| Function | OFF / MOM ON |
| Number of Terminals | 2 |
| Number of Postions | 2 |
| Contact Configuration | SPST |
