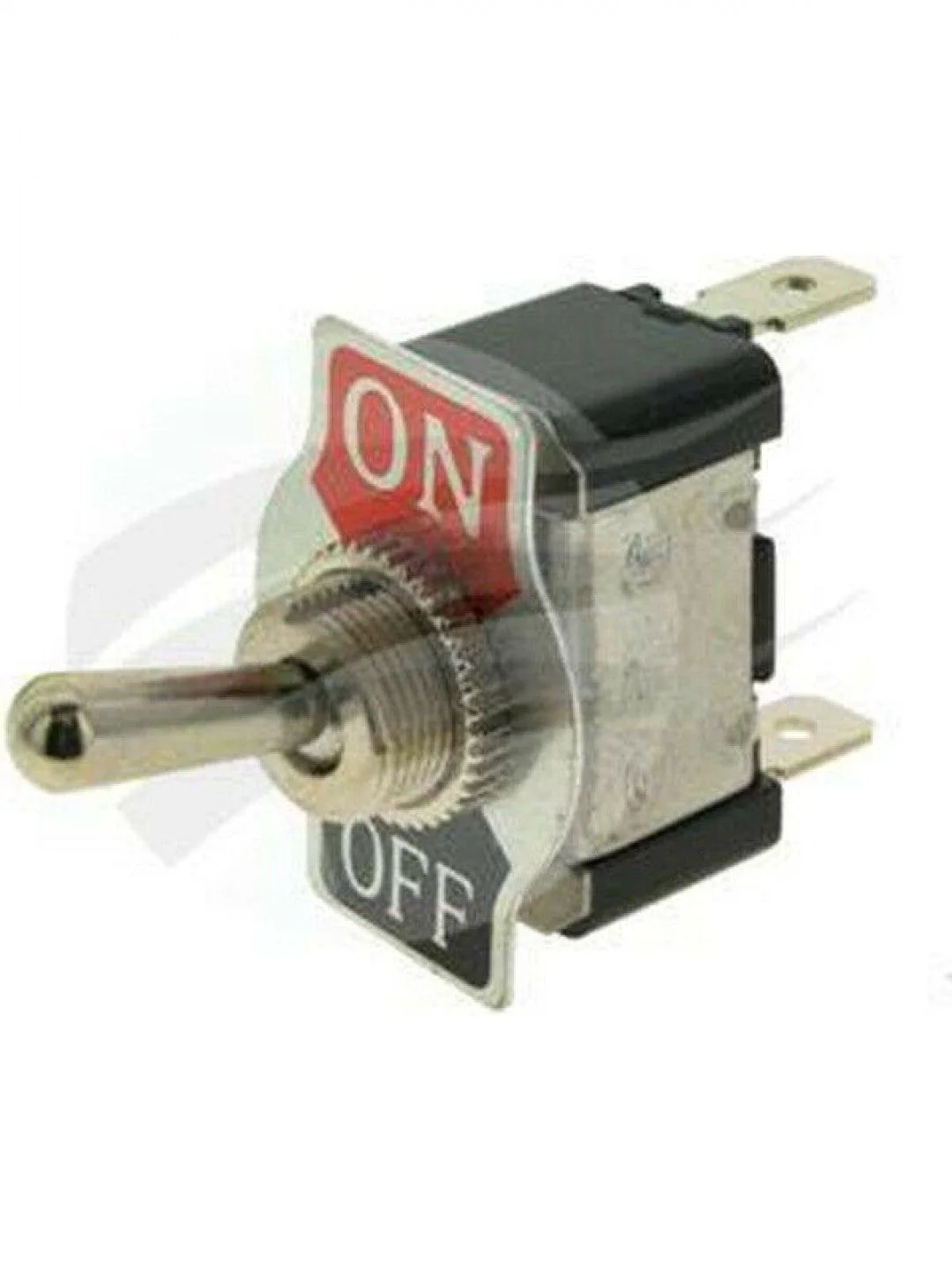

Jaylec - Toggle Switch On/Off 12 Volts 10 Amps Spst 2 Blade Terminals With Face
Jaylec Toggle Switch On/Off 12/24 Volt 10amp.
Includes Face Plate.
2 Position - On/Off- Single Pole - Single Throw- Chrome plated Toggle.
Maximum Load: 10amp at 12 Volt- 5amp at 24 Volt.
Silver Contacts.
2 Blade Terminals.
11.90mm Mounting Stem diameter with a 15/32"-32 Thread and 11.90mm long.-Suits panel thickness up to 6.35mm.-Toggle Handle length: 17.46mm.-1 year Warranty.--Dimensions:-54.85mm x 28.44mm x 15.74mm.-Jaylec -
| Specifications | |
| Voltage | 12 - 24 VOLT |
| Amps | 10 |
| Function | ON / OFF |
| Number of Terminals | 2 |
| Number of Postions | 2 |
| Contact Configuration | SPST |
| Contacts | NO |
$14.42
Jaylec - Toggle Switch On/Off 12 Volts 10 Amps Spst 2 Blade Terminals With Face—
$14.42
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Jaylec Toggle Switch On/Off 12/24 Volt 10amp.
Includes Face Plate.
2 Position - On/Off- Single Pole - Single Throw- Chrome plated Toggle.
Maximum Load: 10amp at 12 Volt- 5amp at 24 Volt.
Silver Contacts.
2 Blade Terminals.
11.90mm Mounting Stem diameter with a 15/32"-32 Thread and 11.90mm long.-Suits panel thickness up to 6.35mm.-Toggle Handle length: 17.46mm.-1 year Warranty.--Dimensions:-54.85mm x 28.44mm x 15.74mm.-Jaylec -
| Specifications | |
| Voltage | 12 - 24 VOLT |
| Amps | 10 |
| Function | ON / OFF |
| Number of Terminals | 2 |
| Number of Postions | 2 |
| Contact Configuration | SPST |
| Contacts | NO |
