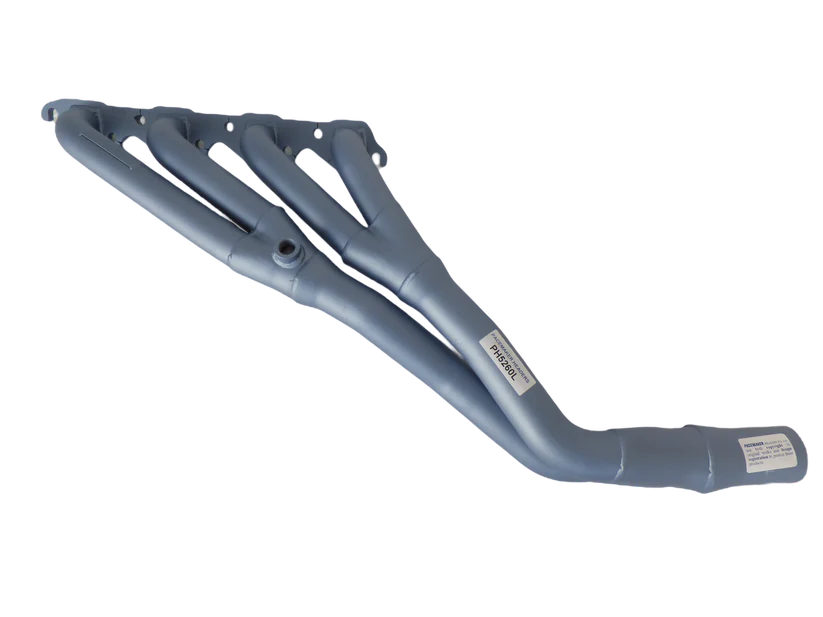

• Pacemaker Headers to suit
• Torana
• LH-LX
• Fitted with
• 5 Litre E.F.I. Motor (Engine Conversion - 304 5L Holden V8 from VN, VP, VR, VS or VT Series 1)
• or E.F.I. Heads installed onto original Holden V8 253-308 Block
• Fits Manual with internal slave cylinder & Automatic Transmissions
• TRI-Y design

Important Notes

These Headers will fit the following gearboxes:

• Holden Trimatic
• Holden Turbo 400
• Holden Turbo 350
• Will fit with High Energy Sump HE2101 Part No.
• Will fit with A9X and L34 Sway Bar
• Commodore four speed automatic Turbo 700 with Hatfield rear cross member using Turbo 700 gear box mounts and 308 engine mounts

Product Specs

Part #:	PH 5260
P/Steering:	Yes	Gasket:	DSF 63
Air Con:	Yes	Primary Pipe:	1⅝" (41mm)
Oxy Sen:	Yes	Secondary Pipe:	1⅞" (48mm)
E.G.R:	N/A	Outlet:	2¼" (57mm)
Y Branch:	N/A	Fitting Time:

Important Information

Image might not reflect actual exhaust system. Shipping times can vary due to size, destination and availability. Please note some modification is required.

Warranty Period - 24 Months

Why Pacemaker Headers?

For over a quarter of a century, PACEMAKER has been innovating, designing and manufacturing quality exhaust headers in Australia. Pacemaker was the first company to introduce mandrel-bending technology into the exhaust header market, forever changing the header industry landscape.
