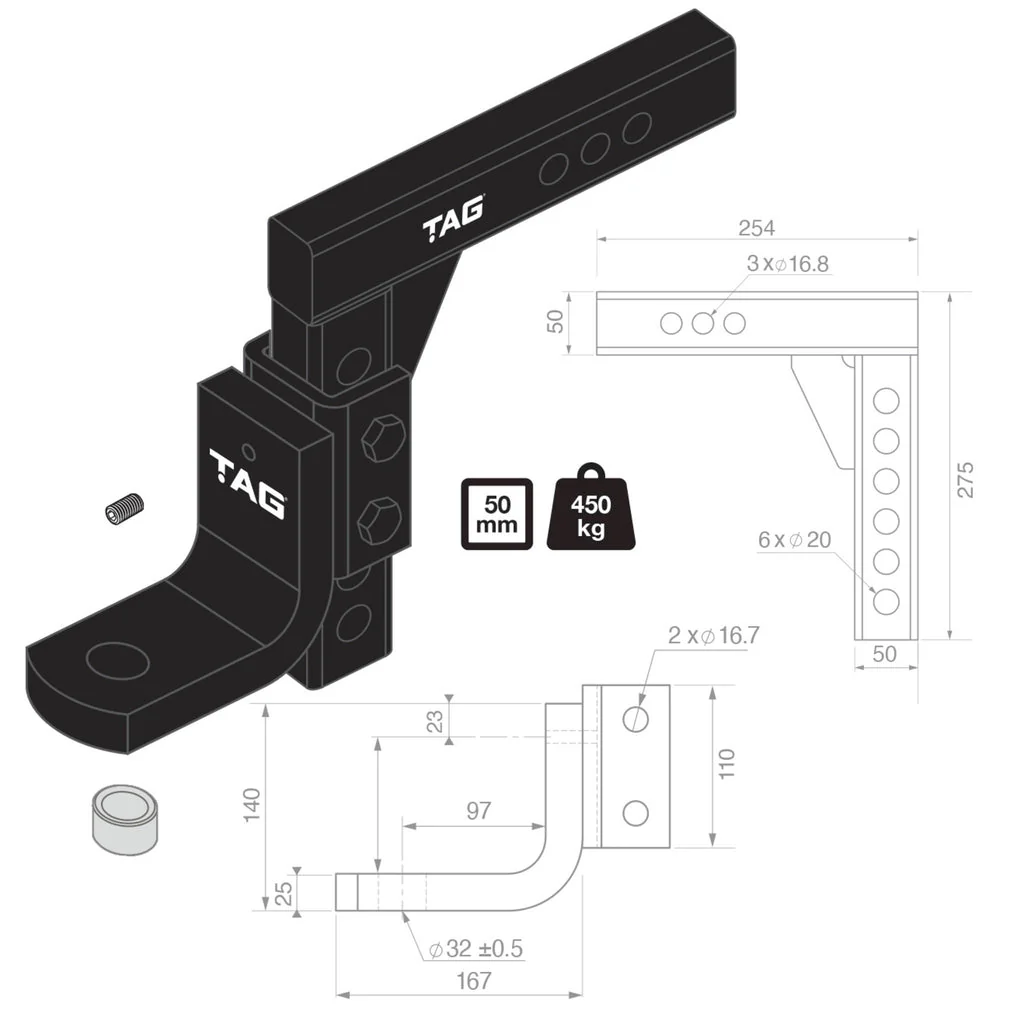

TAG Adjustable Heavy Duty Tow Ball Mount Solution for your Vehicle
The TAG Adjustable Heavy Duty Tow Ball Mount (UNTTBM450) is the ultimate solution for versatile towing. Featuring a solid steel 50mm square shank and a unique 90° separate tongue face, this mount provides multiple adjustment positions to perfectly level your trailer. Whether you need a significant drop or a high rise, this Class 4 mount is engineered to handle heavy loads up to 4500kg.
This Kit Includes:
- TAG Adjustable Tow Ball Mount Shank (50mm Square)
- 90° Adjustable Tongue Face
- 70mm to 50mm Tow Ball Reducer Bush
- High-Tensile Attachment Bolts
TAG adjustable mounts are precision-engineered for maximum adaptability and strength, featuring:
- Multi-Position Adjustment: Four adjustable positions on a 90° face for vertical and horizontal leveling
- Dual Mode Functionality: Can be used in "Drop Mode" (up to 285mm) or "Rise Mode" (up to 160mm)
- High Capacity: Rated for 4500kg GTW with a 70mm ball, or 3500kg with a 50mm ball
- Solid Steel Construction: Durable powder-coated finish resists rust, corrosion, and chipping
- ADR 62/02 Compliant: Fully tested to meet Australian safety standards
- Anti-Rattle Design: Includes an Allen key grub screw to reduce hitch noise and vibration
Please Note: Tow Ball, R-Clip, and Hitch Pin are sold separately. Ensure you tighten the Allen key grub screw before the main attachment bolts. The torque specification for the head-to-shank bolts is 280Nm.

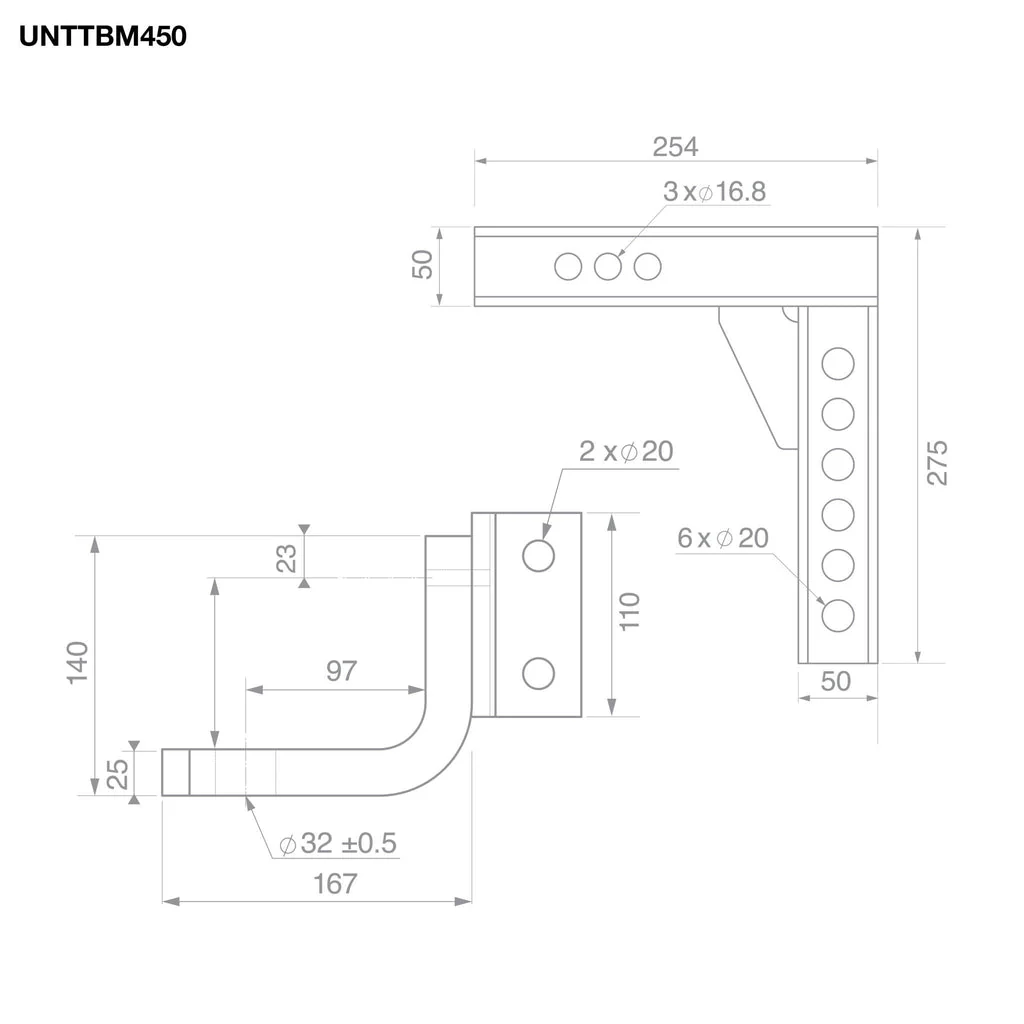

Specifications:
- Hitch Type: Heavy Duty 50mm Square (Class 4)
- Gross Trailer Weight [kg]: 4500 (with 70mm ball) / 3500 (with 50mm ball)
- Ball Weight [kg]: 450 (with 70mm ball) / 350 (with 50mm ball)
- Max Drop [mm]: 285
- Max Rise [mm]: 160
- Tongue Face: 90° Adjustable
- Material: Solid Steel (Powder Coated)
- Warranty: TAG Limited Lifetime Warranty
