TAG Extreme Recovery Towbar Erich Jaeger CAN-Bus Wiring Solution for your Ford Ranger PY Cab Chassis (01/2025 - on)

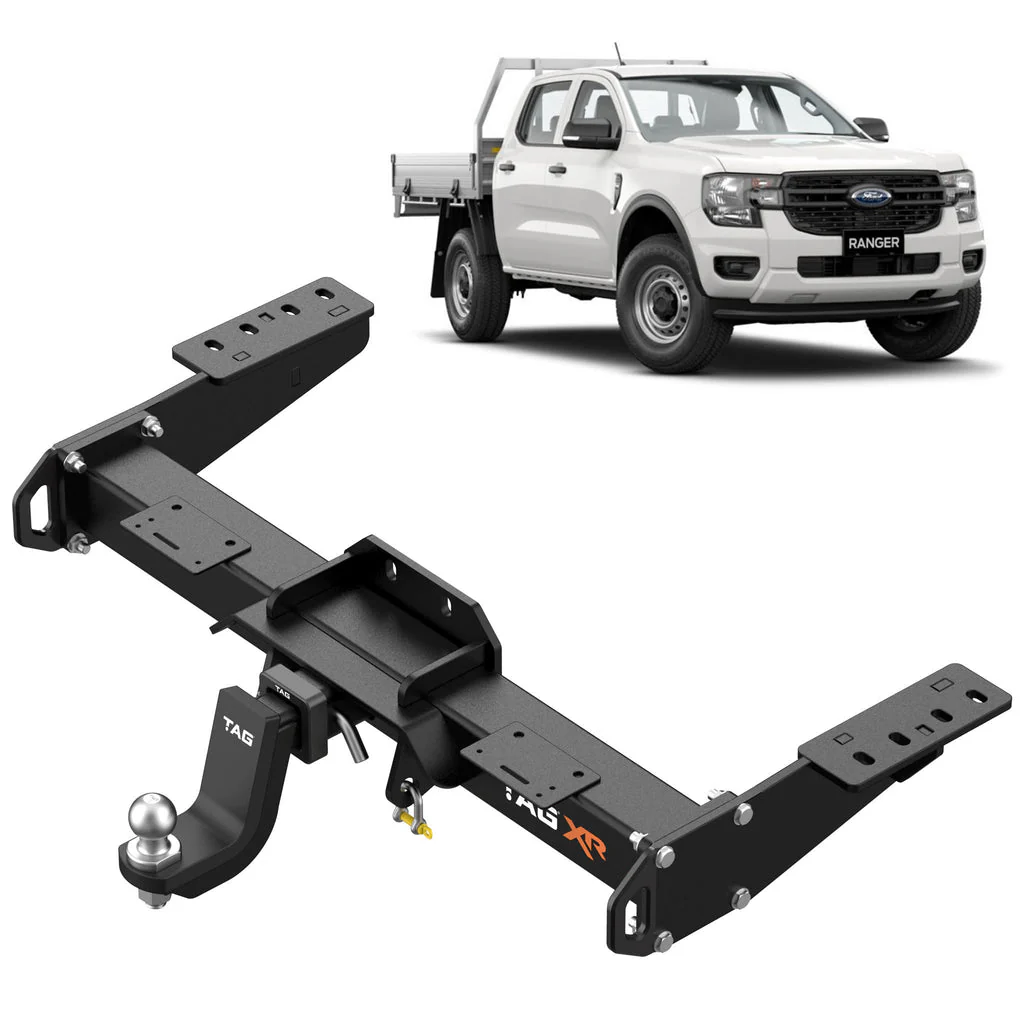

The TAG Extreme Recovery (XR) Towbar and Erich Jaeger CAN-Bus Wiring Kit (TXR836-K103) is designed for 2025–On Ford Ranger PY Cab Chassis models (without a rear bumper step). This heavy-duty system offers a 3500kg tow capacity and includes integrated, WLL 4500kg load-rated recovery points.
FITMENT NOTE:
This kit is for **Cab Chassis** models only (without a rear step bumper). It includes the updated Erich Jaeger CAN-Bus wiring harness (750173EJ).
Kit Includes:
- TXR836 4x4 Recovery Towbar
- 750173EJ CAN-Bus Wiring Harness and 7 Pin Flat Plug

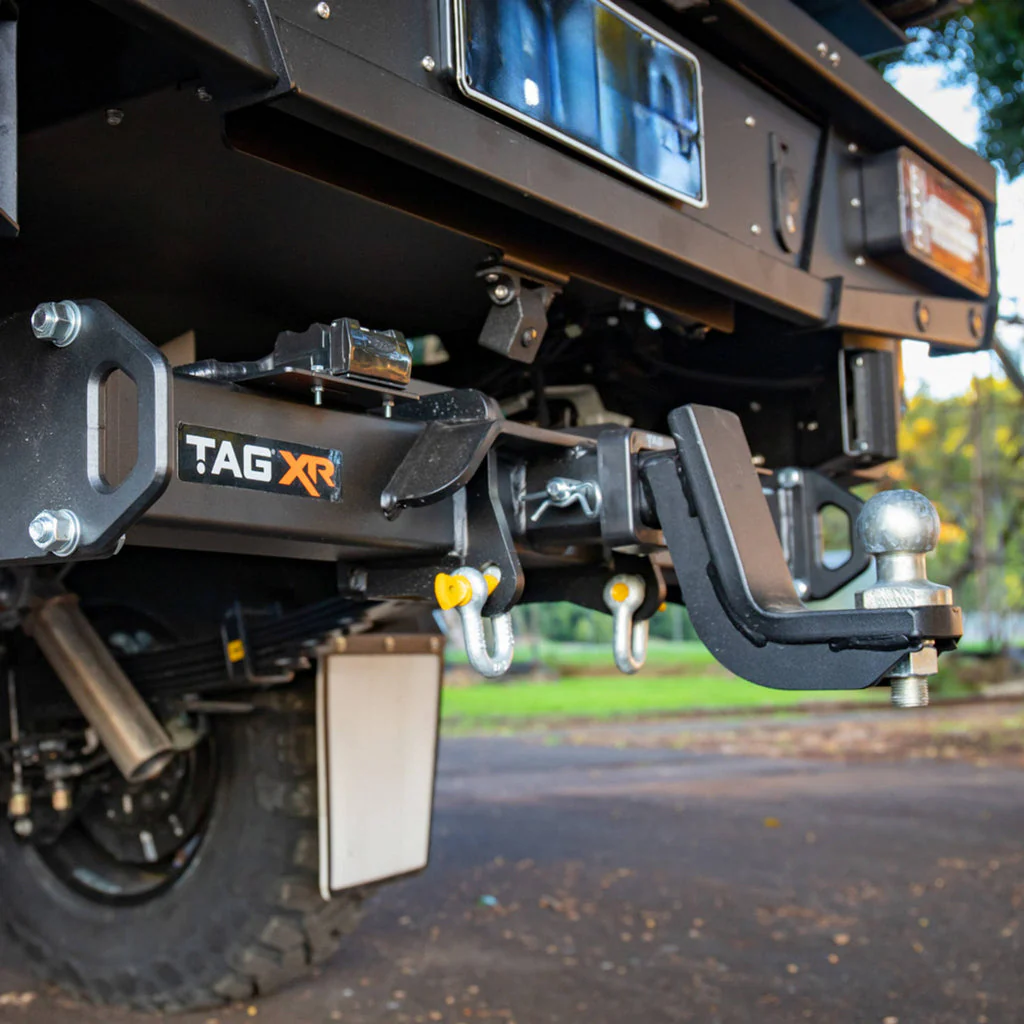

Tag Extreme Recovery Towbar Features:
- 89mm x 89mm Extreme Duty Reinforced Crossbar
- Two WLL 4500kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit soft-shackles.
- Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.
- Highly durable, textured Extreme Duty Powder Coated Finish
- Dual top-mounted Trailer & Anderson Plug Mounts
- Class 4 Towbar - 50mm Square Hitch Receiver
- TAG Limited Lifetime Warranty
- Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles.
Erich Jaeger Towbar Wiring:
- 7 Pin Flat Plug Connection (Includes Trailer Plug)
- Direct Fit CAN-Bus Wiring (750173EJ)
- Brake Controller Prep: Yes
- Diagnostic Coding: Optional
Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.
Specifications:
- Towbar Class: Heavy Duty (4x4 Recovery)
- Towbar Capacity [kg]: 3500
- Static Load Capacity (Ball Weight) [kg]: 350
- Recovery Load-tested: 4500kg WLL
- Recovery Points: 2
- Hitch Type: 50mm Square Hitch Receiver
- Tow Ball Mount: L4171TXR
- Coating: Textured Powder Coated
- Exposure: Exposed
- Bumper Removed During Fitment: No
- Bumper Cut Out Required: No
Wiring Specifics (Erich Jaeger CAN-Bus):
- Wiring Type: CANBUS Direct Fit Wiring
- Plug Connection: 7 Pin Flat Socket (Included)
- Diagnostic Coding: Optional
- Reverse Sensor Cut-Off: Automatic If Coded
- Brake Controller Prep: Yes
- Towbar Fitting Time [min.]: 60 (TXR836)
- Wiring Fitting Time [min.]: 90 (750173EJ)
Important Information
- The image shown may not reflect the actual product
- Shipping times may vary depending on destination and stock availability
Vehicle Applications for Ford Ranger PY Cab Chassis (01/2025 - on)
| Make | Model | Year Range | Body Type | Series | Engine Details | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|
| Ford Ranger (01/2025 - on) - Cab Chassis Only | |||||||
| FORD | RANGER | 01/2025 - - | Cab Chassis | PY | YN2S | 2.0L | Diesel | Bi-Turbo | - AWD |
| FORD | RANGER | 01/2025 - - | Cab Chassis | PY | YN2S | 2.0L | Diesel | Bi-Turbo | - RWD |
| FORD | RANGER | 01/2025 - - | Cab Chassis | PY | P02S | 2.0L | Diesel | Turbo | - AWD |
| FORD | RANGER | 01/2025 - - | Cab Chassis | PY | BF2S | 3.0L | Diesel | Turbo | - AWD |
| FORD | RANGER | 01/2025 - - | Cab Chassis | PY | BF2S | 3.0L | Diesel | Turbo | - AWD |
| FORD | RANGER | 01/2025 - - | Cab Chassis | PY | P02S | 2.0L | Diesel | Turbo | - RWD |
