TAG Extreme Recovery Towbar Erich Jaeger CAN-Bus Wiring Harness Solution for your Ford Ranger PY/T6.2 & Volkswagen Amarok NF Styleside (2022 - on)
The TAG Extreme Recovery (XR) Towbar and Erich Jaeger CAN-Bus Wiring Kit (TXR843-K101) is engineered for Next-Gen Ford Ranger and Volkswagen Amarok Styleside (Tub Body) models equipped with a rear bumper step. This heavy-duty system offers a 3500kg tow capacity and includes integrated, WLL 4500kg load-rated recovery points.
FITMENT NOTE:
This kit is specifically designed for **Styleside / Tub Body** models that feature a rear bumper step. It includes the premium Erich Jaeger CAN-Bus wiring harness.
Kit Includes:

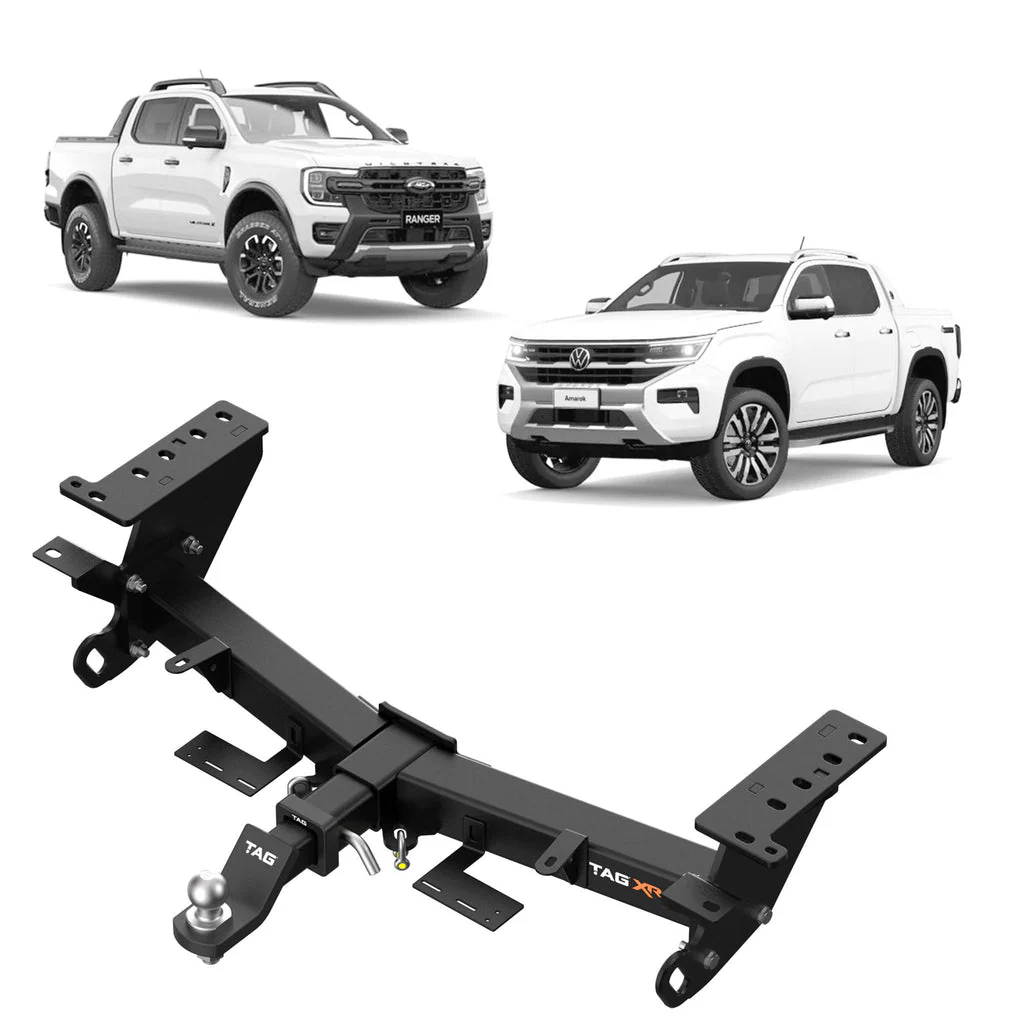

- TXR843 Extreme Recovery Towbar

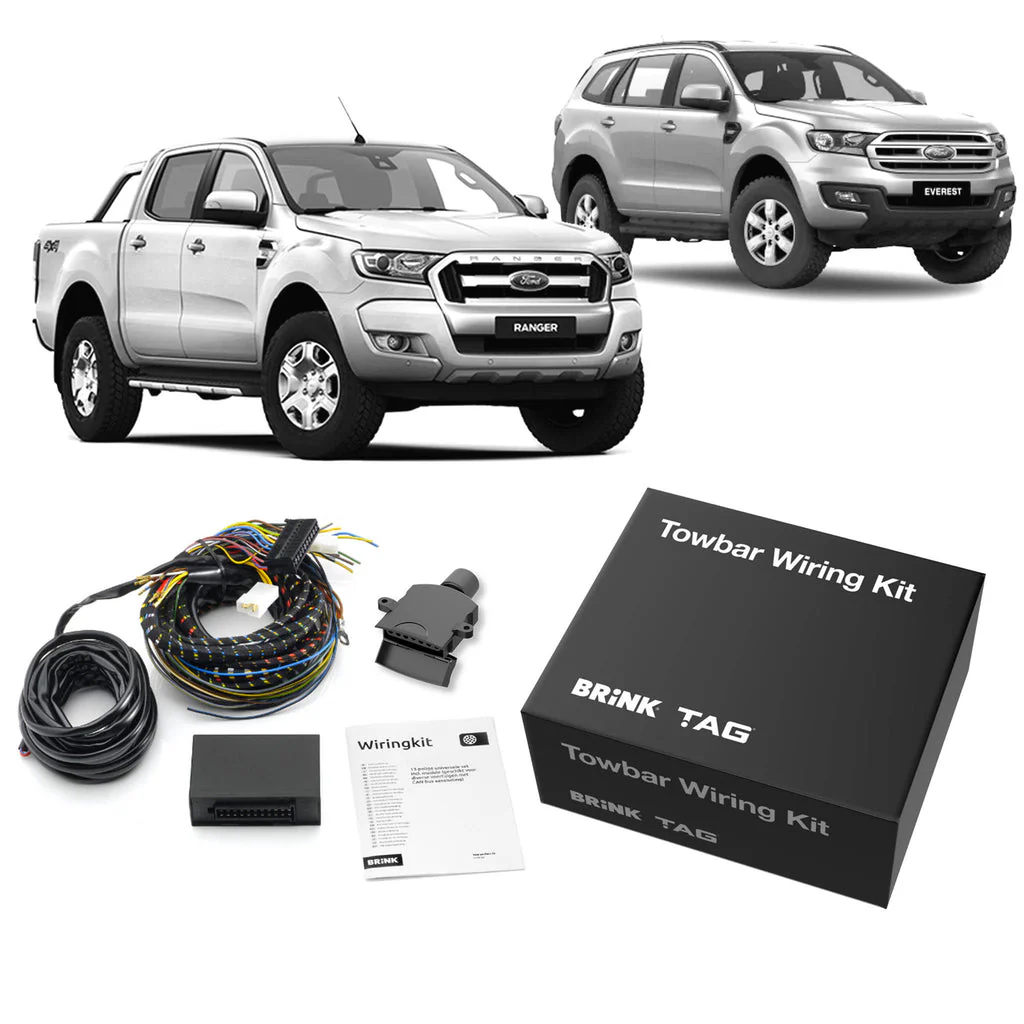

- 750150EJ CAN-Bus Wiring Harness and 7 Pin Flat Plug
Built in Australia, the new TAG Extreme Recovery (XR) Towbar has been engineered for professional trade and fleet applications as well as adventurous offroaders alike, needing to get themselves and their convoy out of the most challenging recovery situations.
Tag Extreme Recovery Towbar Features:
- 89mm x 89mm Extreme Duty Reinforced Crossbar
- Two WLL 4500kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit soft-shackles.
- Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.
- Highly durable, textured Extreme Duty Powder Coated Finish
- Dual top-mounted Trailer & Anderson Plug Mounts
- Class 4 Towbar - 50mm Square Hitch Receiver
- TAG Limited Lifetime Warranty
- Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles
Erich Jaeger Towbar Wiring Harness:
- 7 Pin Flat Plug Connection
- CAN-Bus Direct Fit Wiring
- Coding is optional, primarily required if automatic rear parking sensor deactivation is desired.
Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.
Specifications:
- Towbar Class: Heavy Duty (4x4 Recovery)
- Towbar Capacity [kg]: 3500
- Static Load Capacity (Ball Weight) [kg]: 350
- Recovery Load-tested: 4500kg WLL
- Recovery Points: 2
- Hitch Type: 50mm Square Hitch Receiver
- Tow Ball Mount: L4180TXR
- Coating: Textured Powder Coated
- Exposure: Partially concealed
- Bumper Removed During Fitment: Yes
- Bumper Cut Out Required: Yes
Wiring Specifics (Erich Jaeger CAN-Bus):
- Wiring Option: CANBUS Direct Fit Wiring
- Plug Connection: 7 Pin Flat Socket
- Diagnostic Coding: Optional For All Features
- Reverse Sensor Cut Off: Coding required
- Fog Cut Off: Automatic
- Towbar Fitting Time [min.]: 90 (TXR843)
- Wiring Fitting Time [min.]: 60 (BR-712365)
Important Information
- The image shown may not reflect the actual product
- Shipping times may vary depending on destination and stock availability
Vehicle Applications for Ford Ranger & Volkswagen Amarok (2022 - 2024) Styleside Ute
| Make | Model | Year Range | Body Type | Series | Engine Details | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|
| Volkswagen Amarok (09/2022 - on) - Styleside Ute Only | |||||||
| VOLKSWAGEN | AMAROK | 12/2022 - - | Ute | NF | DXKB | 2.0L | Diesel | TDI405 CORE 4MOTION | Automatic AWD |
| VOLKSWAGEN | AMAROK | 12/2022 - - | Ute | NF | DXKA | 2.0L | Diesel | TDI500 4MOTION | Automatic AWD |
| VOLKSWAGEN | AMAROK | 12/2022 - - | Ute | NF | DXWA | 3.0L | Diesel | TDI600 4MOTION | Automatic AWD |
| VOLKSWAGEN | AMAROK | 12/2022 - - | Ute | NF | DXVA | 2.2L | Petrol | TSI452 AVENTURA 4MOTION | Automatic AWD |
| VOLKSWAGEN | AMAROK | 09/2022 - - | Ute | - | DXKA(YN2S) | 2.0L | Diesel | - | AWD |
| VOLKSWAGEN | AMAROK | 09/2022 - - | Ute | - | DXWA(BF2S) | 3.0L | Diesel | - | AWD |
| VOLKSWAGEN | AMAROK | 09/2022 - - | Ute | - | DXVA(N32S) | 2.3L | Petrol | - | AWD |
| VOLKSWAGEN | AMAROK | 09/2022 - - | Ute | - | DXKB(P02X) | 2.0L | Diesel | TDI | AWD |
| Ford Ranger (06/2022 - 12/2024) - Styleside Ute Only | |||||||
| FORD | RANGER | 02/2025 - - | Ute | PY | C42X | 2.3L | Petrol | Turbo PHEV | 4WD |
| FORD | RANGER | 02/2023 - - | Ute | PY | YN2X | 2.0L | Diesel | Bi-Turbo (Euro 6) | 4WD |
| FORD | RANGER | 01/2023 - - | Ute | PY, T6.2 | P02S | 2.0L | Diesel | XL HI-RIDER SUPER CAB | Automatic RWD |
| FORD | RANGER | 06/2022 - - | Ute | PY | YN2S | 2.0L | Diesel | Bi-Turbo | - AWD |
| FORD | RANGER | 06/2022 - - | Ute | PY | YN2S | 2.0L | Diesel | Bi-Turbo | - RWD |
| FORD | RANGER | 06/2022 - - | Ute | T6.2 | 3.0L | Petrol | Raptor | Automatic 4WD |
| FORD | RANGER | 06/2022 - - | Ute | T6.2 | 2.0L | Diesel | SPORT, WILDTRAK, XL, XLS, XLT | Automatic 4WD |
| FORD | RANGER | 06/2022 - - | Ute | T6.2 | 2.0L | Diesel | SPORT, WILDTRAK, XL, XLS, XLT | Automatic 4WD |
| FORD | RANGER | 06/2022 - - | Ute | PY | P02S | 2.0L | Diesel | Turbo | - AWD |
| FORD | RANGER | 06/2022 - - | Ute | PY | P02S | 2.0L | Diesel | Turbo | - RWD |
| FORD | RANGER | 06/2022 - - | Ute | PY, T6.2 | P02S | 2.0L | Diesel | XL | Automatic 4WD |
| FORD | RANGER | 06/2022 - - | Ute | T6.2 | 2.0L | Diesel | XL | Automatic 4WD |
| FORD | RANGER | 06/2022 - - | Ute | T6.2 | 2.0L | Diesel | XL HI-RIDER | Automatic RWD |
| FORD | RANGER | 06/2022 - - | Ute | T6.2 | 2.0L | Diesel | XL, HI_RIDER | Automatic RWD |
| FORD | RANGER | 06/2022 - - | Ute | T6.2 | 2.0L | Diesel | XLS, XLT HI-RIDER | Automatic RWD |
| FORD | RANGER | 06/2022 - - | Ute | T6.2 | 2.0L | Diesel | XLS, XLT HI-RIDER | Automatic RWD |
| FORD | RANGER | 06/2022 - - | Ute | T6.2 | 2.0L | Diesel | XLT | Automatic 4WD |
| FORD | RANGER | 06/2022 - - | Ute | PY, T6.2 | YN2S | 2.0L | Diesel | XLT | Automatic 4WD |
| FORD | RANGER | 06/2022 - - | Ute | T6.2 | 3.0L | Diesel | XLT, SPORT, WILDTRAK | Automatic 4WD |
| FORD | RANGER | 06/2022 - - | Ute | T6.2 | 3.0L | Diesel | XLT, SPORT, WILDTRAK | Automatic 4WD |
| FORD | RANGER | 06/2022 - - | Ute | PY, T6.2 | YN2S | 2.0L | Diesel | XLT SUPER CAB | Automatic 4WD |
