TAG | Extreme Recovery Towbar & Direct Fit Wiring | Nissan Navara NP300 D23 2020–On | TXR849-K201
TAG | Extreme Recovery Towbar & Direct Fit Wiring | Nissan Navara NP300 D23 2020–On | TXR849-K201
TAG Extreme Recovery Towbar Direct Fit Wiring Solution for your Nissan Navara NP300 D23 Facelift (12/2020 - on)
The TAG Extreme Recovery (XR) Towbar and Direct Fit Wiring Kit (TXR849-K201) is engineered for Nissan Navara NP300 D23 Facelift models (12/2020 - On). This heavy-duty system offers a 3500kg tow capacity and includes integrated, WLL 4000kg load-rated recovery points.
TOWBAR KIT CONTENTS:
Kit Includes:

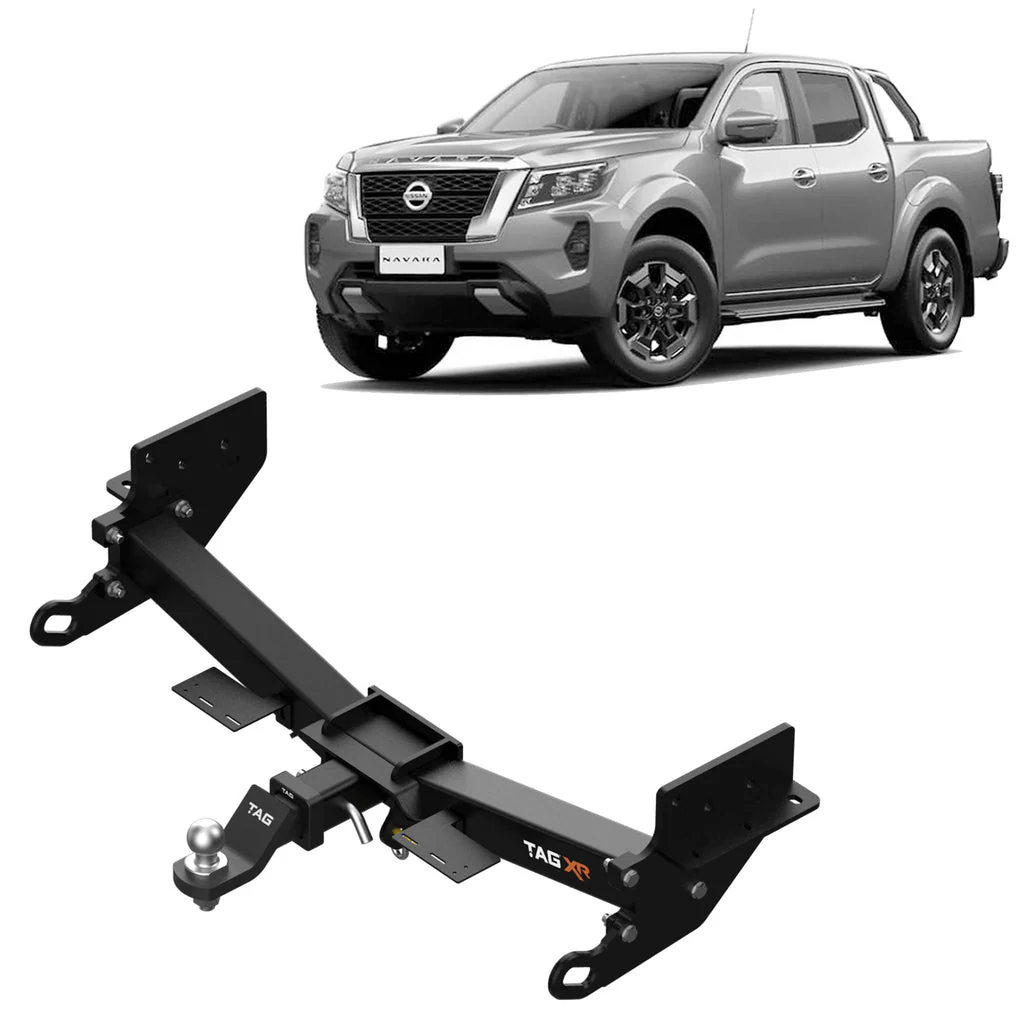

- TXR849 TAG 4x4 Extreme Recovery Towbar
- TAG Direct Fit Wiring Harness (UNT334)
- TAG 7 Pin Flat Socket - Vehicle Side
Built in Australia, the new TAG Extreme Recovery (XR) Towbar has been engineered for professional trade and fleet applications as well as adventurous offroaders alike, needing to get themselves and their convoy out of the most challenging recovery situations.
Tag Extreme Recovery Towbar Features:
- Extreme Duty Reinforced Crossbar
- Two WLL 4000kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit soft shackles.
- Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.
- Highly durable, textured Powder Coated Finish
- Dual top-mounted Trailer & Anderson Plug Mounts
- Class 4 Towbar - 50mm Square Hitch Receiver
- TAG Limited Lifetime Warranty
- Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles

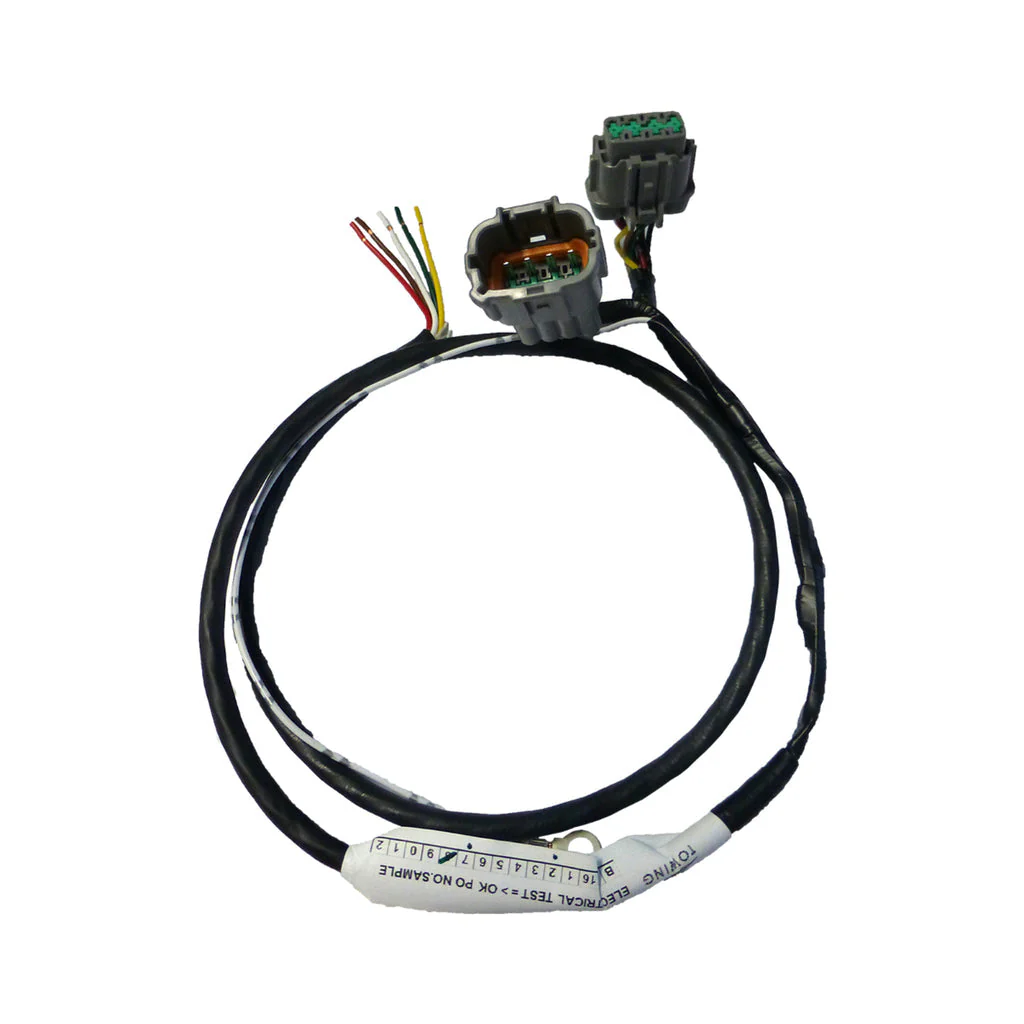

Towbar Wiring Harness:
- Direct Fit Wiring Harness
- 7 Pin Flat Socket (Included)
- No Diagnostic Coding Required for Basic Functions
Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.
Specifications:
- Towbar Class: Heavy Duty (4x4 Recovery)
- Towbar Capacity [kg]: 3500
- Static Load Capacity (Ball Weight) [kg]: 350
- Recovery Load-tested: 4000kg WLL
- Recovery Points: 2
- Hitch Type: 50mm Square Hitch Receiver
- Tow Ball Mount: L4045TXR
- Coating: Textured Powder Coated
- Exposure: Partially concealed
- Bumper Removed During Fitment: No
- Bumper Cut Out Required: No
Wiring & Fitting Details:
- Wiring Option: Direct Fit Wiring Harness
- Plug Connection: 7 Pin Flat Socket (Included)
- Diagnostic Coding: Not Applicable
- Reverse Sensor Cut Off: Not Applicable
- Towbar Fitting Time [min.]: 45 (TXR849)
- Wiring Fitting Time [min.]: 30 (UNT334)
Important Information
- The image shown may not reflect the actual product
- Shipping times may vary depending on destination and stock availability
Vehicle Applications for Nissan Navara NP300 D23 Facelift (12/2020 - on)
| Make | Model | Year Range | Body Type | Series | Engine Details | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|
| Nissan Navara (12/2020 - on) - NP300 Facelift Models | |||||||
| NISSAN | NAVARA | 12/2020 - - | Ute | D23, NP300 | YS23DDTT | 2.3L | Diesel | PRO-4X, PRO-4X WARRIOR, SL, ST, ST-X | Automatic/Manual 4WD |
| NISSAN | NAVARA | 12/2020 - - | Ute | D23, NP300 | YS23DDTT | 2.3L | Diesel | SL KING CAB | Automatic/Manual 4WD |
| NISSAN | NAVARA | 12/2020 - - | Ute | D23, NP300 | YS23DDTT | 2.3L | Diesel | SL KING CAB | Automatic RWD |
| NISSAN | NAVARA | 12/2020 - - | Ute | D23, NP300 | YS23DDTT | 2.3L | Diesel | SL, ST, ST-X | Automatic/Manual 4WD |
| NISSAN | NAVARA | 12/2020 - - | Ute | D23, NP300 | YS23DDTT | 2.3L | Diesel | SL, ST, ST-X | Automatic/Manual RWD |
