TAG | Extreme Recovery Towbar & Direct Fit Wiring | Toyota Hilux KUN, TGN, GGN 2008–2015 | TXR815-K201
1 / 5
TAG | Extreme Recovery Towbar & Direct Fit Wiring | Toyota Hilux KUN, TGN, GGN 2008–2015 | TXR815-K201
TAG Extreme Recovery Towbar Direct Fit Wiring Harness Solution for your Toyota Hilux Cab Chassis (08/2008 - 09/2015)
This TAG Extreme Recovery (XR) Towbar and Direct Fit Wiring Kit (TXR815-K201) is engineered for professional trade, fleet, and adventurous offroad applications, ensuring you can handle the most challenging recovery situations. It offers a maximum towing capacity of 3500kg and features integrated WLL 4500kg recovery points.
This Kit Includes:

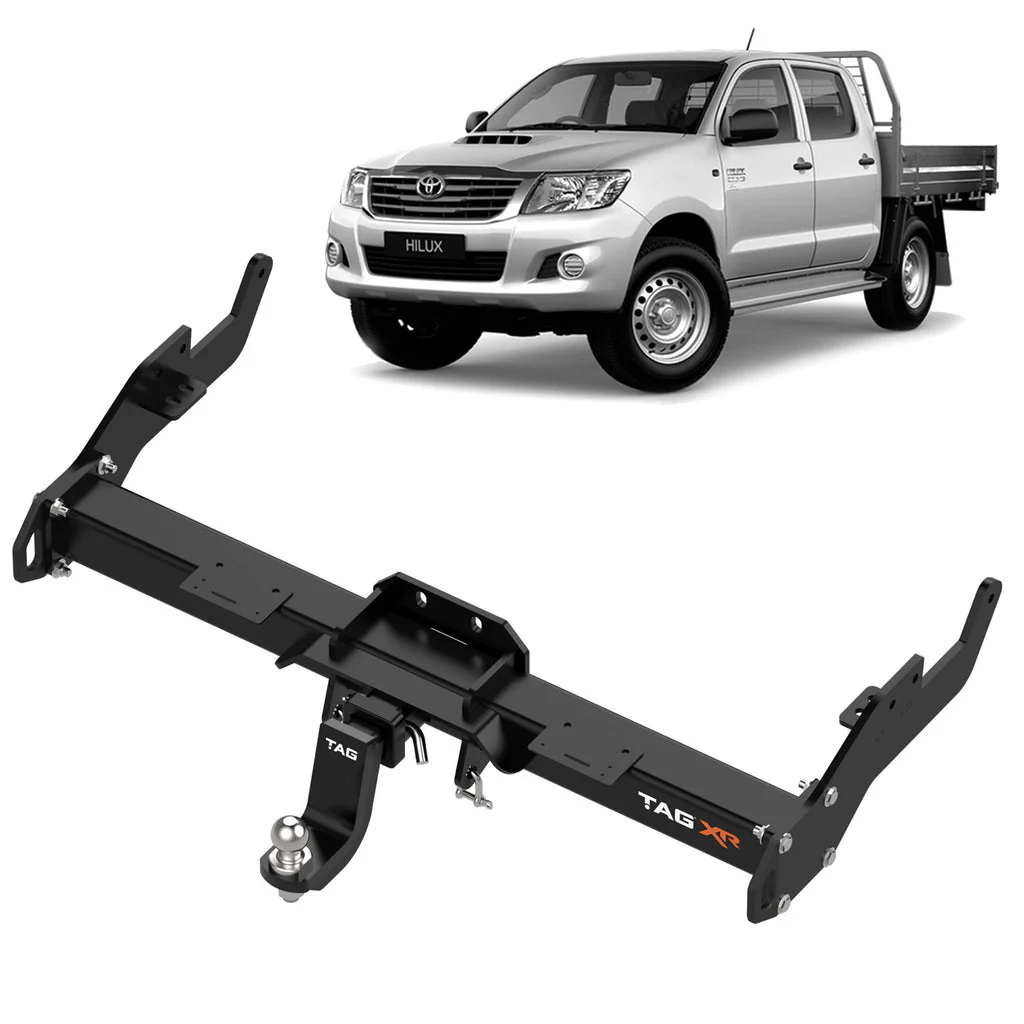

- TAG 4x4 Extreme Recovery Towbar

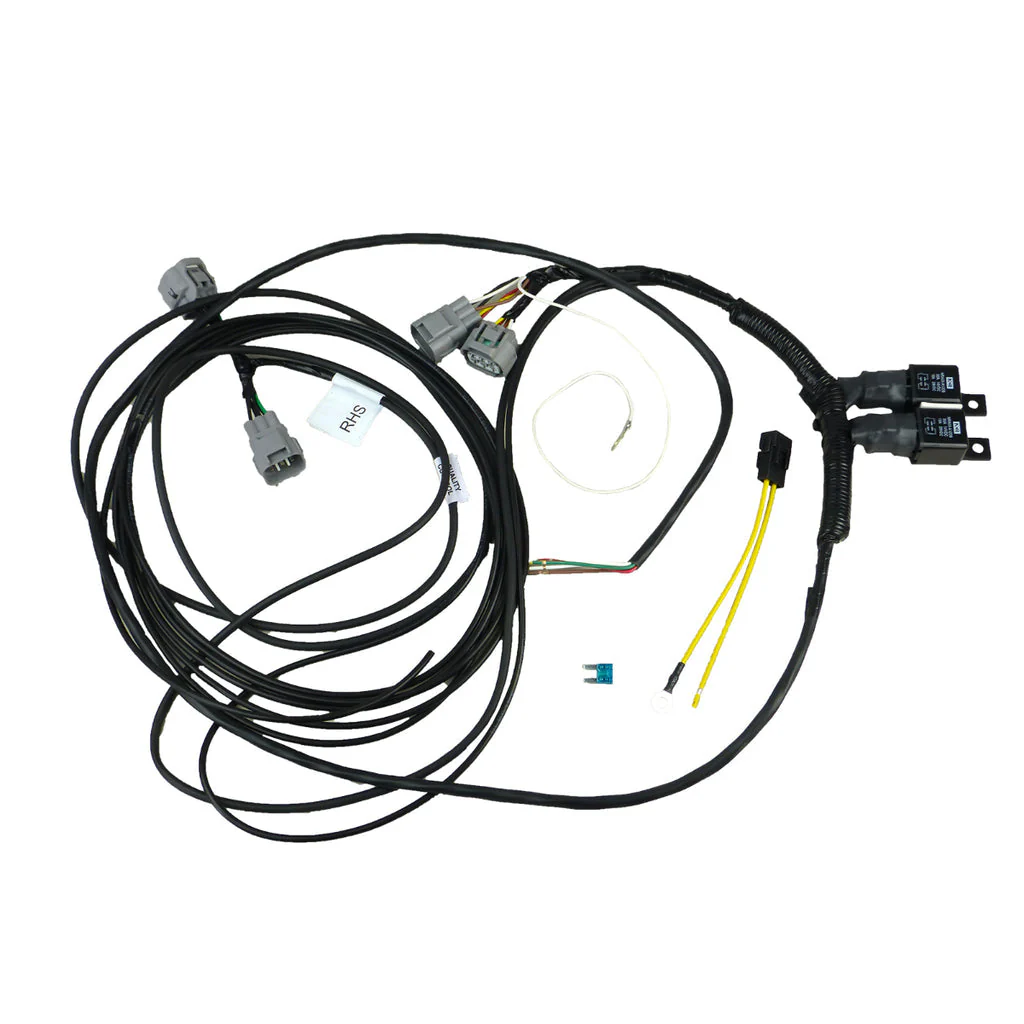

- TAG Direct Fit Wiring Harness
- TAG 7 Pin Flat Socket - Vehicle Side
Built in Australia, the new TAG Extreme Recovery (XR) Towbar features:
- 89mm x 89mm Extreme Duty Reinforced Crossbar

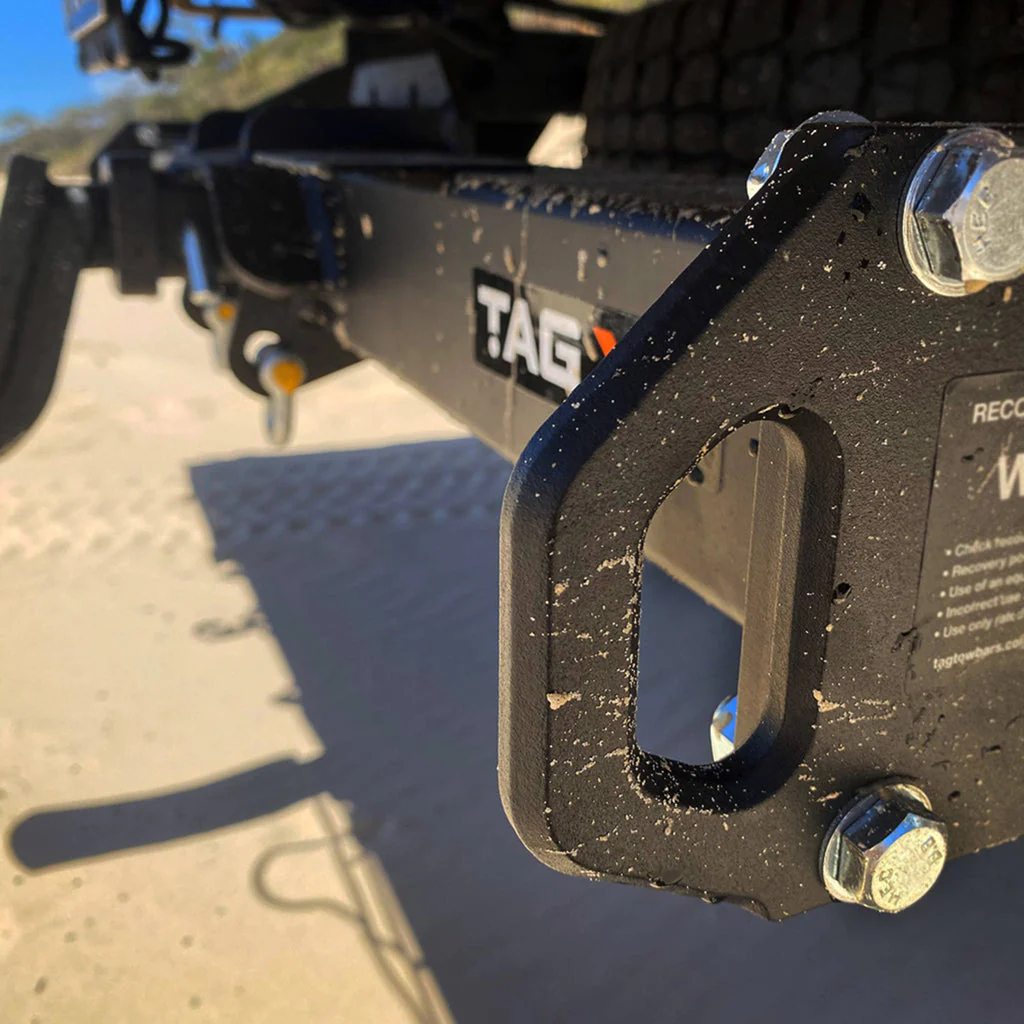

- Two WLL 4500kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with beveled edges to suit soft-shackles.
- Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.
- Highly durable, textured Extreme Duty Powder Coated Finish
- Dual top-mounted Trailer & Anderson Plug Mounts
- Class 4 Towbar - 50mm Square Hitch Receiver
- TAG Limited Lifetime Warranty

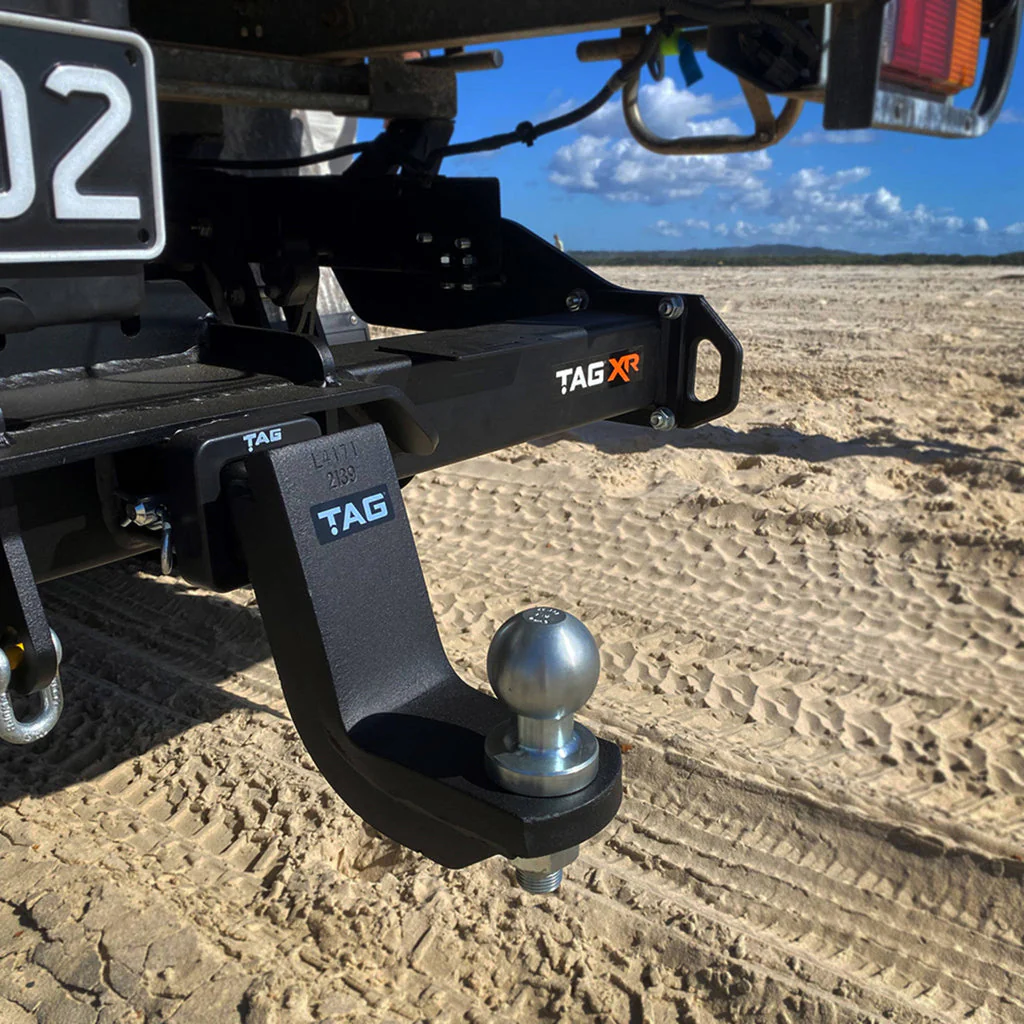

- Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles
Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.
Specifications:
- Towbar Class: Heavy Duty (4x4 Recovery)
- Towbar Capacity [kg]: 3500
- Static Load Capacity (Ball Weight) [kg]: 350
- Recovery Load-tested: 4500kg WLL
- Recovery Points: 2
- Hitch Type: 50mm Square Hitch Receiver
- Coating: Textured Powder Coated
- Exposure: Exposed
- Towbar Fitting Time [min.]: 120 (TXR815)
Wiring Specifics:
- Wiring Option: Direct Fit Harness with Relays
- Style: 7 Pin Flat (Plugs & Sockets)
- Diagnostic Coding: Not Required
- Reverse Sensor Cut Off: Not Applicable
- Fog Cut Off: Not Applicable
- Fitting Time [min.]: 60 (UNT278)
Important Information
- The image shown may not reflect the actual product
- Shipping times may vary depending on destination and stock availability
Vehicle Applications for Toyota Hilux (08/2008 - 10/2015)
| Make | Model | Year Start - Year End | Body Type | Series | Engine Details | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|
| Toyota Hilux (08/2008 - 10/2015) | |||||||
| TOYOTA | HILUX | 08/2008 - 10/2015 | Ute | KUN15 | 2KD-FTV | 2.5L | Diesel | VIGO VII | RWD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Ute | KUN35L | 2KD-FTV | 2.5L | Diesel | - | Manual 4WD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Ute | KUN35L | 2KD-FTV | 2.5L | Diesel | - | Manual 4WD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Ute | KUN15, KUN35 | 2KD-FTV | 4.0L | Diesel | VIGO VII | RWD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Ute | KUN16R | 1KD-FTV | 3.0L | Diesel | SR X-CAB | Manual RWD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Ute | KUN25 | 2KD-FTV | 2.5L | Diesel | VIGO VII | AWD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Cab Chassis | KUN26 | 1KD-FTV | 3.0L | Diesel | D-4D | AWD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Cab Chassis | KUN16R | 1KD-FTV | 3.0L | Diesel | D-4D | RWD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Cab Chassis | KUN16R | 1KD-FTV | 3.0L | Diesel | D-4D | RWD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Cab Chassis | KUN26R | 1KD-FTV | 3.0L | Diesel | SR, WORKMATE | Automatic/Manual 4WD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Cab Chassis | KUN16R | 1KD-FTV | 3.0L | Diesel | SR, WORKMATE | Manual RWD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Ute | KUN26 | 1KD-FTV | 3.0L | Diesel | D-4D | 4WD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Ute | KUN26 | 1KD-FTV | 3.0L | Diesel | D-4D | AWD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Ute | KUN16 | 1KD-FTV | 3.0L | Diesel | D-4D | RWD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Ute | KUN16 | 1KD-FTV | 3.0L | Diesel | D-4D | RWD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Ute | KUN16R | 1KD-FTV | 3.0L | Diesel | SR | Manual RWD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Ute | KUN26R | 1KD-FTV | 3.0L | Diesel | SR5 EXTRA CAB | Manual 4WD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Ute | KUN26R | 1KD-FTV | 3.0L | Diesel | SR5, SR5 BLACK | Automatic/Manual 4WD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Ute | KUN26R | 1KD-FTV | 3.0L | Diesel | SR EXTRA CAB | Manual 4WD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Ute | KUN26R | 1KD-FTV | 3.0L | Diesel | SR, WORKMATE | Automatic/Manual 4WD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Ute | KUN25 | 2KD-FTV | 2.5L | Diesel | VIGO VII | AWD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Ute | KUN25R | 2KDFTV | 2.4L | Diesel | - | Manual 4WD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Ute | KUN25R | 2KD-FTV | 2.5L | Diesel | - | Manual 4WD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Ute | GGN25 | 1GR-FE | 4.0L | Petrol | V6 VVTi | AWD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Ute | GGN25 | 1GR-FE | 4.0L | Petrol | V6 VVTi | AWD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Ute | GGN15 | 1GR-FE | 4.0L | Petrol | V6 VVTi | RWD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Ute | GGN15 | 1GR-FE | 4.0L | Petrol | V6 VVTi | RWD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Ute | TGN26 | 2TR-FE | 2.7L | Petrol | VIGO VII | AWD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Ute | TGN16 | 2TR-FE | 2.7L | Petrol | VVTi | RWD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Ute | TGN16 | 2TR-FE | 2.7L | Petrol | VVTi | RWD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Cab Chassis | TGN16R | 2TR-FE | 2.7L | Petrol | WORKMATE | Automatic/Manual RWD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Ute | GGN15R | 1GR-FE | 4.0L | Petrol | SR | Automatic/Manual RWD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Ute | GGN25R | 1GR-FE | 4.0L | Petrol | SR5 | Automatic/Manual 4WD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Ute | GGN15R | 1GR-FE | 4.0L | Petrol | SR5 | Automatic/Manual RWD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Ute | GGN15R | 1GR-FE | 4.0L | Petrol | SR EXTRA CAB | Automatic RWD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Ute | KUN15, KUN10 | 2KD-FTV | 2.5L | Diesel | VIGO VII | RWD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Ute | TGN16R | 2TR-FE | 2.7L | Petrol | WORKMATE | Automatic/Manual RWD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Cab Chassis | GGN25R | 1GR-FE | 4.0L | Petrol | V6 VVTi | AWD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Cab Chassis | GGN25R | 1GR-FE | 4.0L | Petrol | V6 VVTi | AWD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Cab Chassis | GGN15R | 1GR-FE | 4.0L | Petrol | V6 VVTi | RWD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Cab Chassis | GGN15R | 1GR-FE | 4.0L | Petrol | V6 VVTi | RWD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Cab Chassis | TGN16R | 2TR-FE | 2.7L | Petrol | VVTi | RWD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Cab Chassis | TGN16R | 2TR-FE | 2.7L | Petrol | VVTi | RWD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Cab Chassis | KUN26R | 1KD-FTV | 3.0L | Diesel | SR | Automatic/Manual 4WD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Ute | KUN25R | 2KD-FTV | 2.5L | Diesel | - | Manual 4WD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Ute | GGN25R | 1GR-FE | 4.0L | Petrol | SR | Automatic/Manual 4WD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Cab Chassis | GGN15R | 1GR-FE | 4.0L | Petrol | SR | Automatic/Manual RWD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Ute | GGN15R | 1GR-FE | 4.0L | Petrol | SR5 X-CAB | Automatic RWD |
| TOYOTA | HILUX | 08/2008 - 10/2015 | Ute | KUN16 | 1KD-FTV | 3.0L | Diesel | D-4D | RWD |
