TAG | Extreme Recovery Towbar & Direct Wiring | GWM Tank 300 Petrol (Non-Hybrid) 2022–On | TXR883-K201
TAG | Extreme Recovery Towbar & Direct Wiring | GWM Tank 300 Petrol (Non-Hybrid) 2022–On | TXR883-K201
TAG Extreme Recovery Towbar Direct Fit Wiring Kit Solution for your GWM Tank 300 Petrol Models Only (10/2022 - on)
The TAG Extreme Recovery (XR) Towbar and Direct Fit Wiring Kit (TXR883-K201) is engineered specifically for the GWM Tank 300 Petrol (Non-Hybrid) models (10/2022 - On). This system offers a 3000kg tow capacity and includes two WLL 4000kg load-rated recovery points.
This kit is confirmed to fit GWM Tank 300 Petrol models only. Does not automatically activate 'Tow Mode' - must be manually activated if required.
Kit Includes:

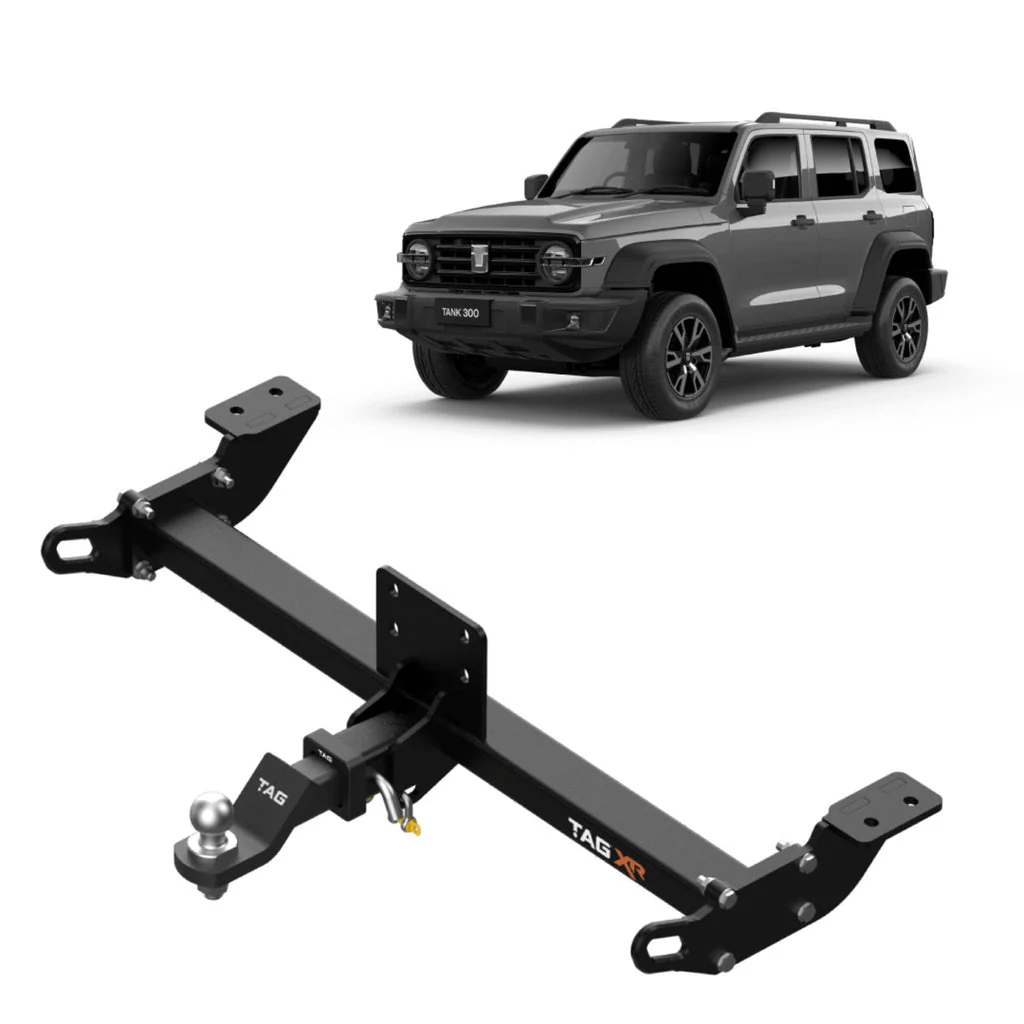

- TAG Heavy Duty Towbar (TXR883)

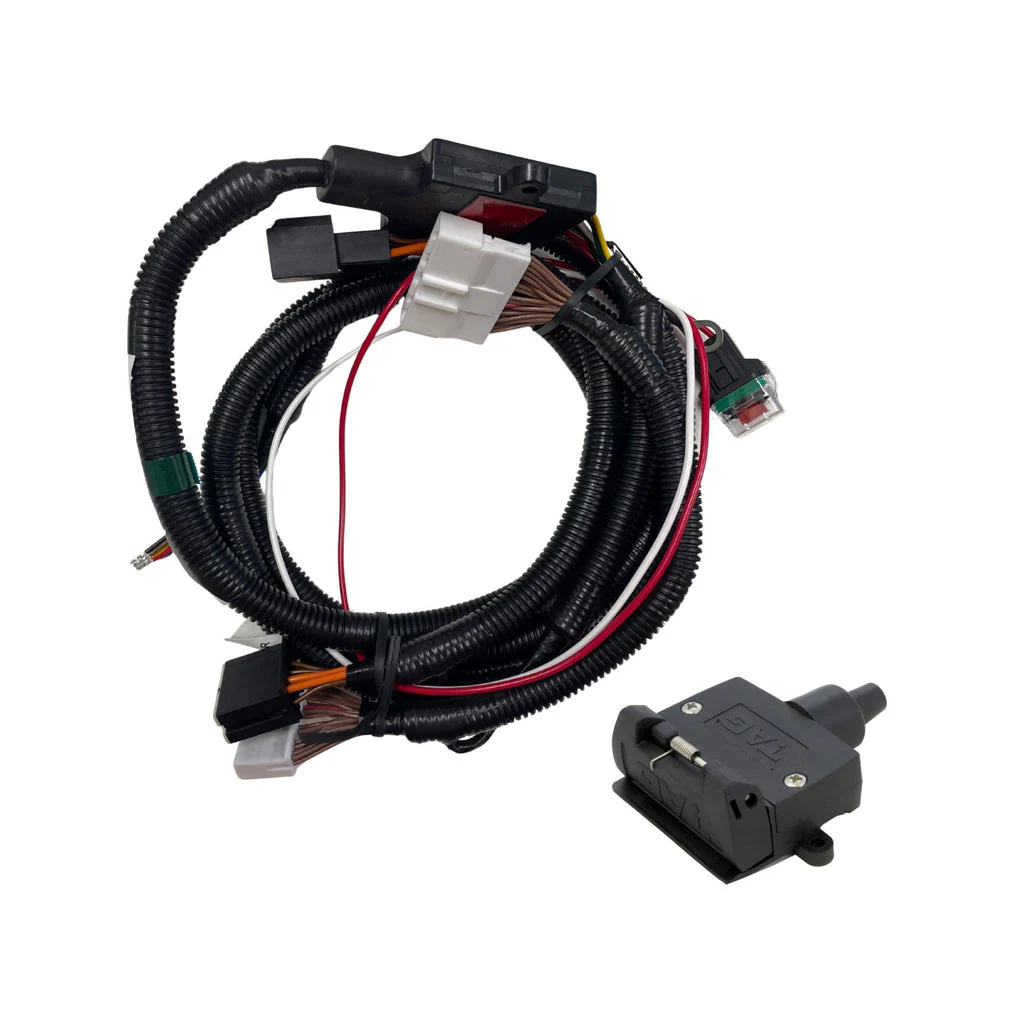

- TAG Direct fit wiring harness (UNT366) - Replaces factory wiring harness.
- 7 Pin Flat Socket
TAG Extreme Recovery Towbar Features:
- Extreme Duty Reinforced Crossbar
- Two WLL 4000kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit soft-shackles.
- Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.
- Highly durable, textured Extreme Duty Powder Coated Finish
- Dual top-mounted Trailer & Anderson Plug Mounts
- Class 4 Towbar - 50mm Square Hitch Receiver
- TAG Limited Lifetime Warranty
- Includes Zinc Tow Ball & Extreme Duty Hitch rated at 3000kg towing capacity / 300kg ball weight, Pin & Clip and D-Shackles
Specifications:
- Towbar Class: Heavy Duty (4x4 Recovery)
- Towbar Capacity [kg]: 3000
- Static Load Capacity (Ball Weight) [kg]: 300
- Recovery Load-tested: 4000kg WLL
- Recovery Points: 2
- Hitch Type: 50mm Square Hitch Receiver
- Coating: Textured Powder Coated
- Exposure: Partially Concealed
- Bumper Removed During Fitment: No
- Bumper Cut Out Required: Yes
Wiring & Fitting Details:
- Wiring Option: Direct Fit Wiring Harness (UNT366)
- Plug Connection: 7 Pin Flat Socket (Included)
- Diagnostic Coding: No
- Reverse Sensor Cut Off: Via Dash
- Towbar Fitting Time [min.]: 60 (TXR883)
- Wiring Fitting Time [min.]: 30 (UNT366)
Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.
Important Information
- The image shown may not reflect the actual product
- Shipping times may vary depending on destination and stock availability
Vehicle Applications for GWM Tank 300 Petrol Models Only (10/2022 - on)
| Make | Model | Year Range | Body Type | Series | Engine Details | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|
| GWM Tank 300 Petrol Models (10/2022 - on) | |||||||
| GWM | TANK 300 | 03/2023 - - | SUV | P01 | GW4E20CB | 2.0L | Petrol | LUX, ULTRA | 4WD |
| GWM | TANK 300 | 03/2023 - - | SUV | - | GW4C20NT | 2.0L | Petrol | LUX, ULTRA | Automatic AWD |
