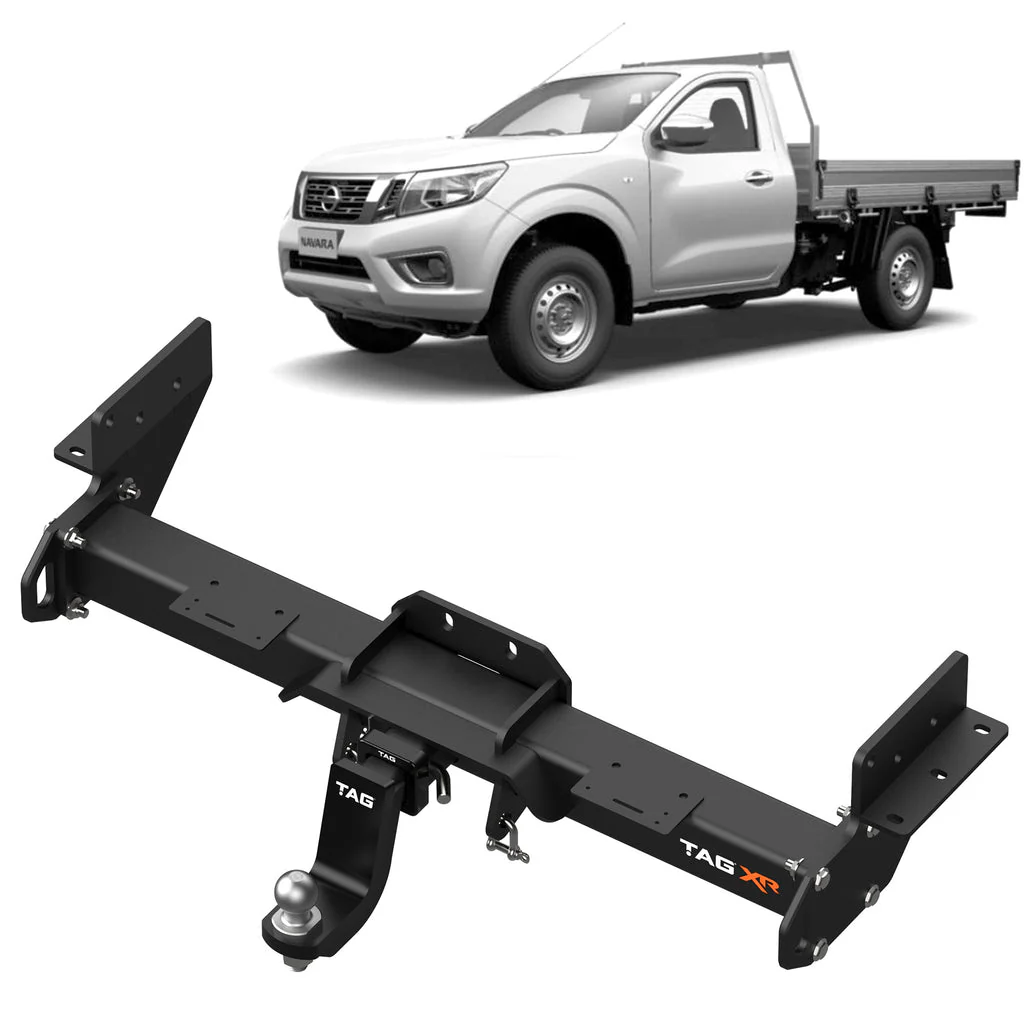

TAG Extreme Recovery (XR) Towbar & Direct Fit Wiring Kit Solution for your Nissan Navara D23 Cab Chassis
The TAG Extreme Recovery (XR) Towbar & Direct Fit Wiring Kit (TXR806-K101) is engineered exclusively for Nissan Navara D23 (NP300) Cab Chassis/Trayback models (03/2015 - 05/2021). This kit is built for extreme off-road use, featuring a heavy-duty 3500kg towbar, dual 4500kg recovery points, and a Direct Fit ECU wiring harness.
Built in Australia, the new TAG Extreme Recovery (XR) Towbar has been engineered for professional trade and fleet applications as well as adventurous offroaders alike, needing to get themselves and their convoy out of the most challenging recovery situations.
⚠️ IMPORTANT WIRING NOTE (Towing Power): The vehicle's ability to supply power for towing (Auxiliary/Permanent power) must be checked (refer to step 8 of instructions). A **Power Extension Kit (Part: 721149)** may be required for power preparedness, depending on vehicle batch/spec.
Kit Includes:
- TAG 4x4 Extreme Recovery Towbar (TXR806) - Cab Chassis/Trayback specific

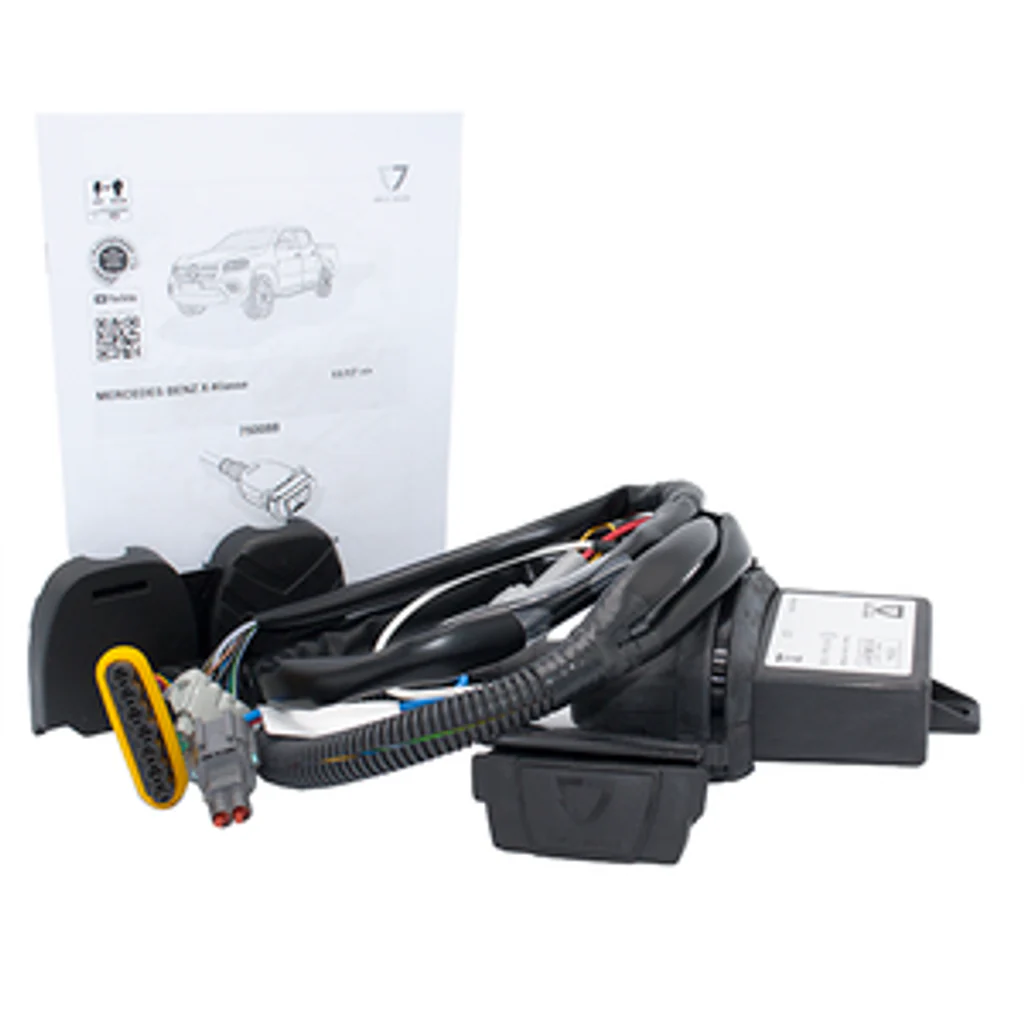

- TAG Direct Fit Wiring Harness (K101)
- TAG 7 Pin Flat Socket - Vehicle Side
- Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles
Key Extreme Recovery Features:
- 89mm x 89mm Extreme Duty Reinforced Crossbar
- Two WLL **4500kg Load-Rated Recovery Points** integrated into the 3-Piece Design side-arms (with bevelled edges to suit soft-shackles)
- Flush chassis-mounted profile for **maximum offroad clearance** and improved departure angles
- Dual top-mounted Trailer & Anderson Plug Mounts
- Class 4 Towbar - 50mm Square Hitch Receiver
- Highly durable, textured Extreme Duty Powder Coated Finish
- Exposure: Exposed
- Brake Controller Prep: Yes
- TAG Limited Lifetime Warranty
Specifications:
- Towbar Class: Heavy Duty (4x4 Recovery)
- Towbar Capacity [kg]: 3500
- Ball Weight [kg]: 350
- Recovery Load-tested: 4500kg WLL
- Recovery Points: 2
- Hitch Type: 50mm Square Hitch Receiver
- Wiring Option: Direct Fit ECU
- Fitting Time [min.]: ~120 (Towbar) + ~60 (Wiring)
- Coating: Textured Powder Coated
Professional Installation Recommended: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.
Vehicle Applications for Nissan Navara Cab Chassis (01/2015 - 05/2021)
| Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|---|
| Nissan Navara (01/2015 - 05/2021) | ||||||||
| NISSAN | NAVARA | 11/2015 | - | Cab Chassis | D23 (NP300) | QR25DE | 2.5L | Petrol | DX | Automatic/Manual RWD |
| NISSAN | NAVARA | 01/2015 | - | Cab Chassis | D23 | YS23DDT | 2.3L | Diesel | dCi | RWD |
| NISSAN | NAVARA | 11/2015 | 12/2020 | Cab Chassis | D23 (NP300) | YS23DDT | 2.3L | Diesel | DX, RX | Automatic/Manual 4WD |
| NISSAN | NAVARA | 11/2015 | 12/2020 | Cab Chassis | D23 (NP300) | YS23DDT | 2.3L | Diesel | RX | 4WD |
| NISSAN | NAVARA | 11/2015 | 12/2020 | Cab Chassis | D23 (NP300) | YS23DDT | 2.3L | Diesel | RX | Manual RWD |
| NISSAN | NAVARA | 11/2015 | 12/2020 | Cab Chassis | D23 (NP300) | YS23DDT | 2.3L | Diesel | RX KING CAB | Manual 4WD |
| NISSAN | NAVARA | 11/2015 | 12/2020 | Cab Chassis | D23 (NP300) | YS23DDT | 2.3L | Diesel | RX KING CAB | Manual RWD |
| NISSAN | NAVARA | 01/2015 | 11/2020 | Cab Chassis | D23 | YS23DDT | 2.3L | Diesel | dCi | 4WD |
| NISSAN | NAVARA | 01/2015 | 10/2017 | Cab Chassis | D23 | QR25DE | 2.5L | Petrol | RWD | |
