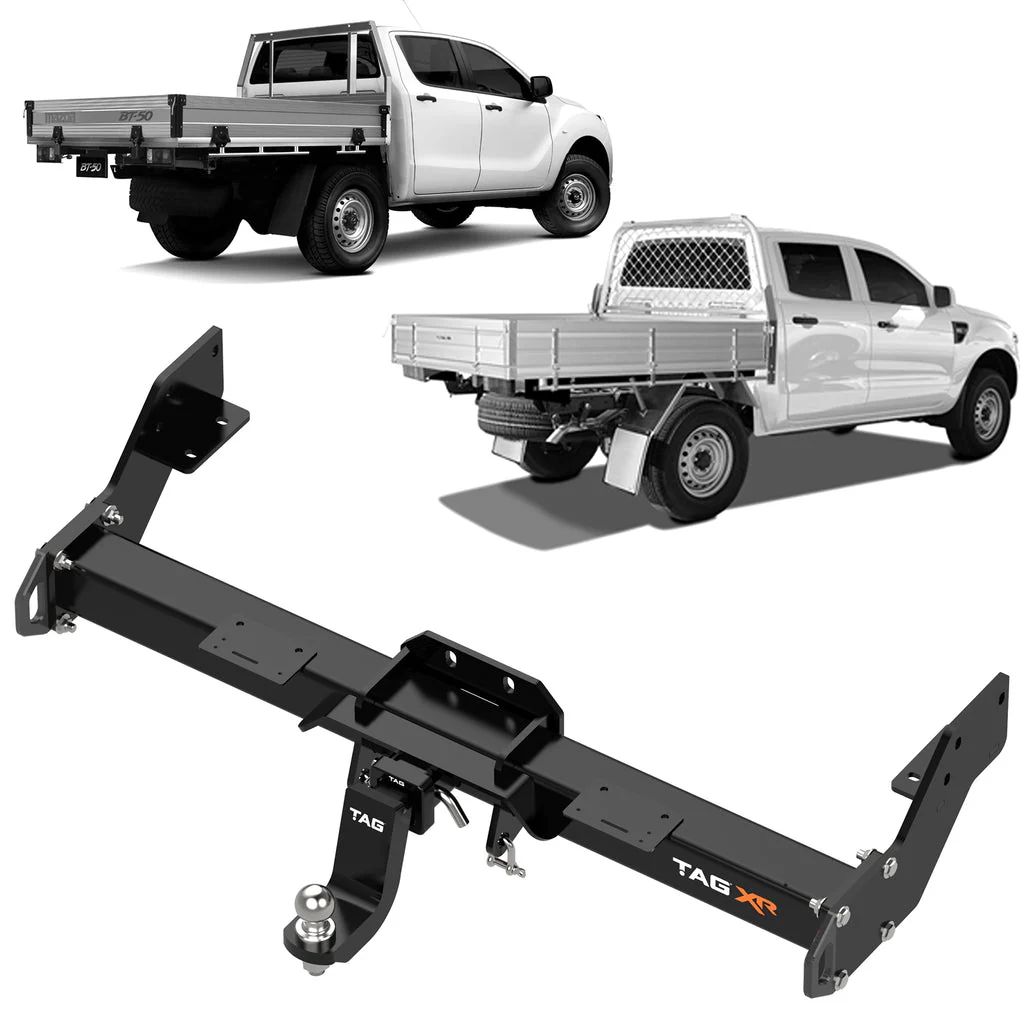

TAG Extreme Recovery (XR) Towbar & Direct Fit Wiring Kit Solution for your Ford Ranger PX2 & PX3 Cab Chassis
The TAG Extreme Recovery (XR) Towbar & Direct Fit Wiring Kit (TXR804-K101) is engineered exclusively for Ford Ranger PX2 and PX3 Cab Chassis models (08/2015 - 05/2022). This kit features a robust towbar with dual 4500kg recovery points and a CAN-Bus direct fit wiring harness.
Built in Australia, the new TAG Extreme Recovery (XR) Towbar has been engineered for professional trade and fleet applications as well as adventurous offroaders alike, needing to get themselves and their convoy out of the most challenging recovery situations.
⚠️ Compatibility Note: This towbar is strictly for **Cab Chassis models only** and is not suitable for styleside/tub body Ranger vehicles.
Kit Includes:
- TAG 4x4 Extreme Recovery Towbar

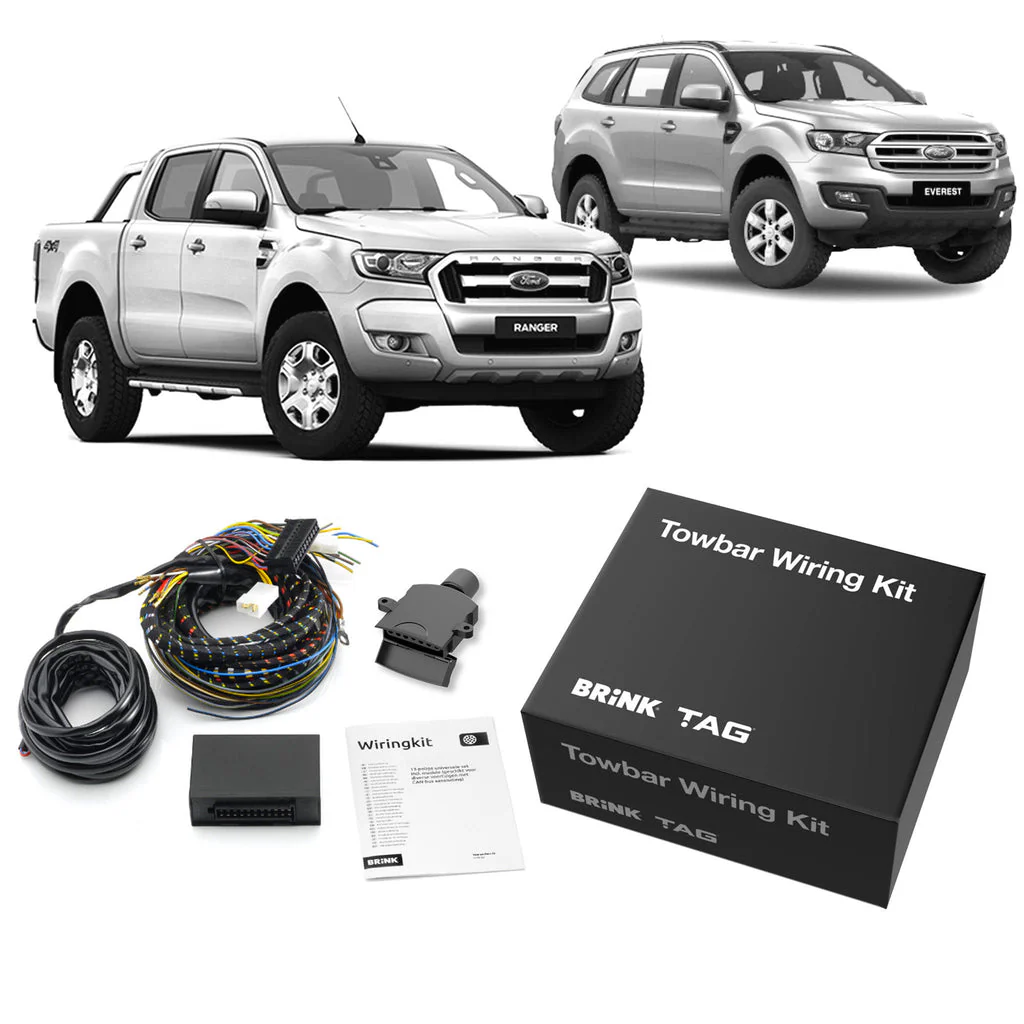

- TAG Direct Fit CAN-Bus Wiring Harness (Brink wiring) with 7 Pin Flat plug
- Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles
Key Extreme Recovery Features:
- 89mm x 89mm Extreme Duty Reinforced Crossbar
- Two WLL **4500kg Load-Rated Recovery Points** integrated into the 3-Piece Design side-arms (with bevelled edges to suit soft-shackles)
- Flush chassis-mounted profile for **maximum offroad clearance** and improved departure angles
- Dual top-mounted Trailer & Anderson Plug Mounts
- Class 4 Towbar - 50mm Square Hitch Receiver
- Highly durable, textured Extreme Duty Powder Coated Finish
- Exposure: Exposed
- TAG Limited Lifetime Warranty
Specifications:
- Towbar Class: Heavy Duty (4x4 Recovery)
- Towbar Capacity [kg]: 3500
- Ball Weight [kg]: 350
- Recovery Load-tested: 4500kg WLL
- Recovery Points: 2
- Hitch Type: 50mm Square Hitch Receiver
- Wiring Option: CANBUS Direct Fit Wiring
- Diagnostic Coding: Optional For All Features
- Reverse Sensor Cut Off: Coding required
- Fitting Time [min.]: ~60
- Coating: Textured Powder Coated
Professional Installation Recommended: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.
Vehicle Applications for Ford Ranger PX2 & PX3 Cab Chassis (08/2015 - 05/2022)
| Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|---|
| Ford Ranger (09/2011 - 06/2022) | ||||||||
| FORD | RANGER | 10/2018 | 05/2022 | Cab Chassis | PX3 | P5AT | 3.2L | Diesel | XL Double Cab | 4WD |
| FORD | RANGER | 10/2018 | 05/2022 | Cab Chassis | PX3 | P4AT | 2.2L | Diesel | XL Double Cab | 4WD |
| FORD | RANGER | 10/2018 | 05/2022 | Cab Chassis | PX3 | P4AT | 2.2L | Diesel | XL Hi-Rider | RWD |
| FORD | RANGER | 10/2018 | 05/2022 | Cab Chassis | PX3 | P4AT | 2.2L | Diesel | XL Hi-Rider Double Cab | RWD |
| FORD | RANGER | 10/2018 | 05/2022 | Cab Chassis | PX3 | P4AT | 2.2L | Diesel | XL Hi-Rider Super Cab | RWD |
| FORD | RANGER | 10/2018 | 05/2022 | Cab Chassis | PX3 | P4AT | 2.2L | Diesel | XL Low Rider Single Cab | RWD |
| FORD | RANGER | 10/2018 | 05/2022 | Cab Chassis | PX3 | P5AT | 3.2L | Diesel | XL Single Cab | 4WD |
| FORD | RANGER | 10/2018 | 05/2022 | Cab Chassis | PX3 | P5AT | 3.2L | Diesel | XL Super Cab | 4WD |
| FORD | RANGER | 07/2016 | 05/2022 | Cab Chassis | PX (PX2, PX3) | P5AT | 3.2L | Diesel | XL, SPORT | Automatic/Manual 4WD |
| FORD | RANGER | 08/2015 | 05/2022 | Cab Chassis | PX2 | P4AT | 2.2L | Diesel | SUPER CAB XL HIRIDER | Manual RWD |
| FORD | RANGER | 08/2015 | 05/2022 | Cab Chassis | PX (PX2, PX3) | P4AT | 2.2L | Diesel | XL | Manual 4WD |
| FORD | RANGER | 08/2015 | 05/2022 | Cab Chassis | PX (PX2, PX3) | P4AT | 2.2L | Diesel | XL | Manual RWD |
| FORD | RANGER | 06/2015 | 05/2022 | Cab Chassis | PX (PXII, PXIII) | P4-AT | 2.2L | Diesel | TDdi | AWD |
| FORD | RANGER | 06/2015 | 05/2022 | Cab Chassis | PX (PXII, PXIII) | P4-AT | 2.2L | Diesel | TDdi | RWD |
| FORD | RANGER | 11/2011 | 05/2022 | Cab Chassis | PX (PX, PXII, PXIII) | P5-AT | 3.2L | Diesel | TDdi | 4WD |
| FORD | RANGER | 09/2011 | 06/2022 | Cab Chassis | PX (PX1, PX2, PX3) | P5AT | 3.2L | Diesel | SUPER CAB XL | Automatic/Manual 4WD |
| FORD | RANGER | 09/2011 | 03/2022 | Cab Chassis | PX (PX1, PX2, PX3) | P5AT | 3.2L | Diesel | XL, XL PLUS | Manual 4WD |
