FITMENT NOTE:

This kit is for **Cab Chassis** models only (without a rear step bumper). It includes the premium Erich Jaeger CAN-Bus wiring harness for direct integration.

Kit Includes:

• TXR836 4x4 Recovery Towbar
• 750150EJ CAN-Bus Wiring Harness and 7 Pin Flat Plug

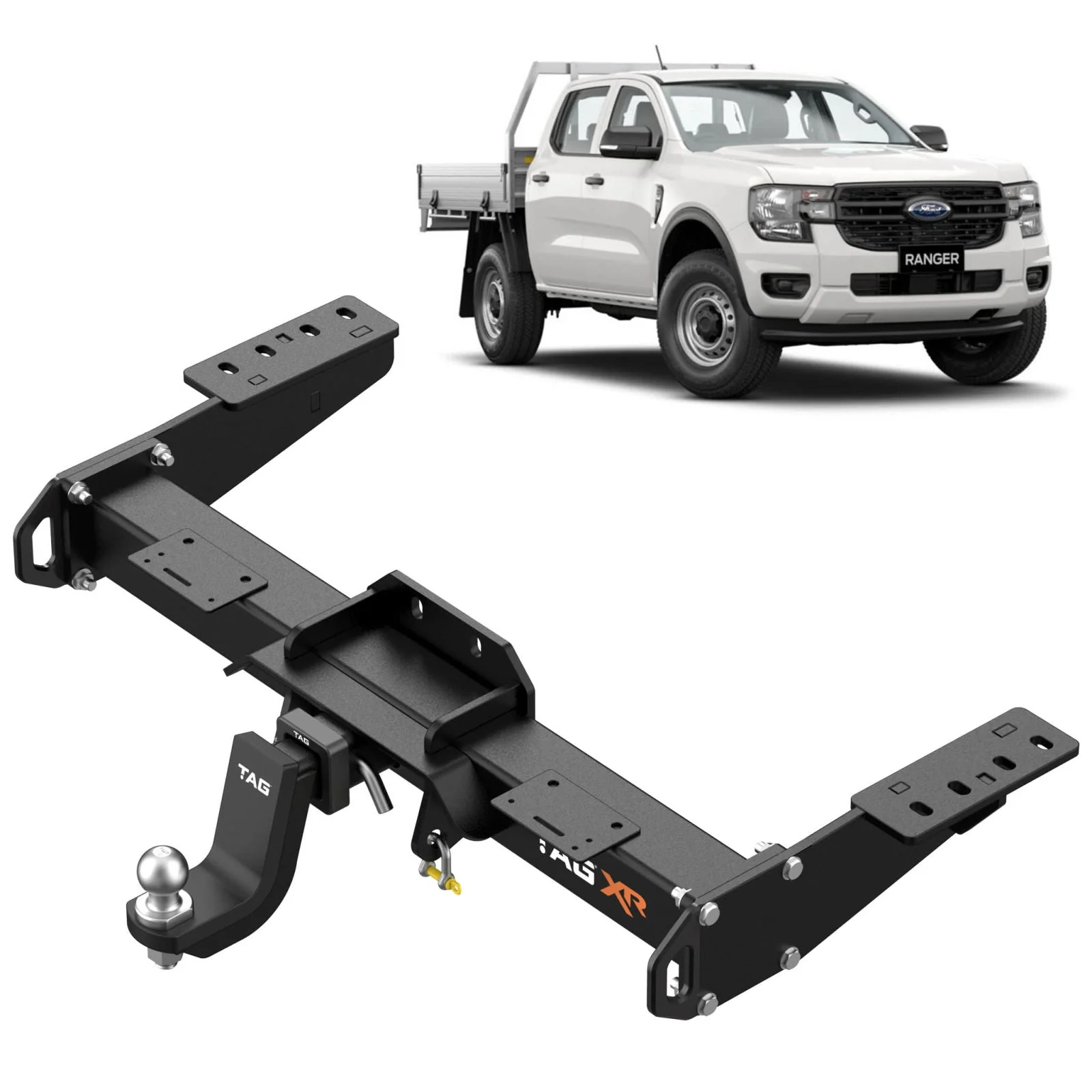

Tag Extreme Recovery Towbar Features:

• 89mm x 89mm Extreme Duty Reinforced Crossbar
• Two WLL 4500kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit soft-shackles.
• Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.
• Highly durable, textured Extreme Duty Powder Coated Finish
• Dual top-mounted Trailer & Anderson Plug Mounts
• Class 4 Towbar - 50mm Square Hitch Receiver
• TAG Limited Lifetime Warranty
• Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles.

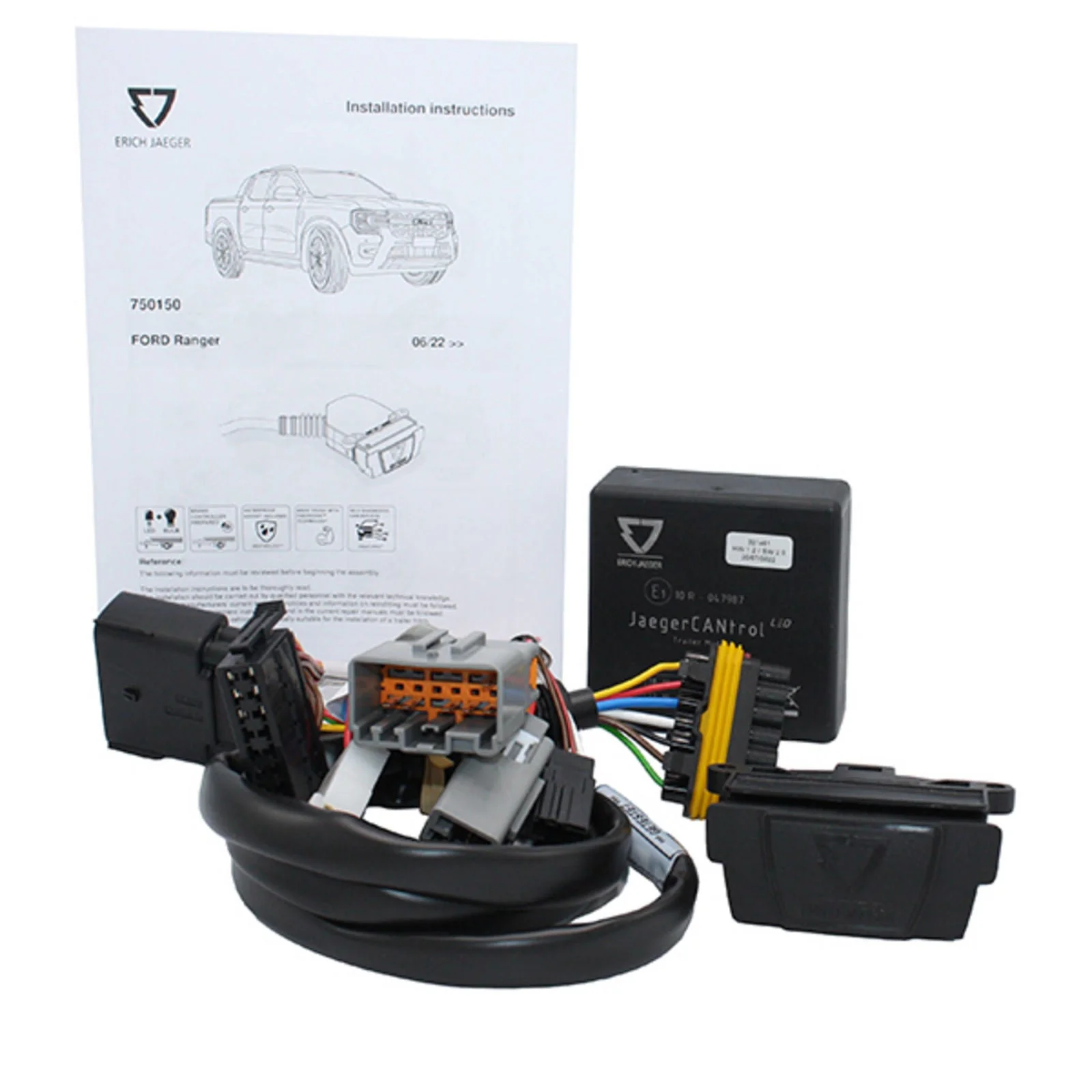

Erich Jaeger Towbar Wiring:

• 7 Pin Flat Plug Connection
• CAN-Bus Direct Fit Wiring
• Designed for FORD RANGER (05/22-) T6.2 / P703 Series (compatible with Amarok NF)

Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.

Specifications:

Wiring Specifics (Erich Jaeger CAN-Bus):

• Wiring Option: CANBUS Direct Fit Wiring
• Plug Connection: 7 Pin Flat Socket
• Diagnostic Coding: Optional For All Features
• Reverse Sensor Cut Off: Coding required
• Fog Cut Off: Automatic
• Fitting Time [min.]: 60
