TAG | Heavy Duty Extended Towbar 3-Piece & Direct Fit CANBUS Wiring Kit | Ford Ranger PX2 PX3 Cab Chassis 2015–2022 | T7F706-K102
Heavy Duty (Extended) Towbar and Direct Fit Wiring Harness for Ford Ranger PX2, PX3 (06/2015 - 05/2022) - Cab Chassis
This TAG Heavy Duty Extended 3-Piece Towbar and BRINK Direct Fit Wiring Kit (T7F706-K102) is designed specifically for Ford Ranger PX2 and PX3 Cab Chassis models (06/2015 - 05/2022) with an Extended Tray or Canopy. It provides a maximum towing capacity of 3500kg.
This Kit Includes:

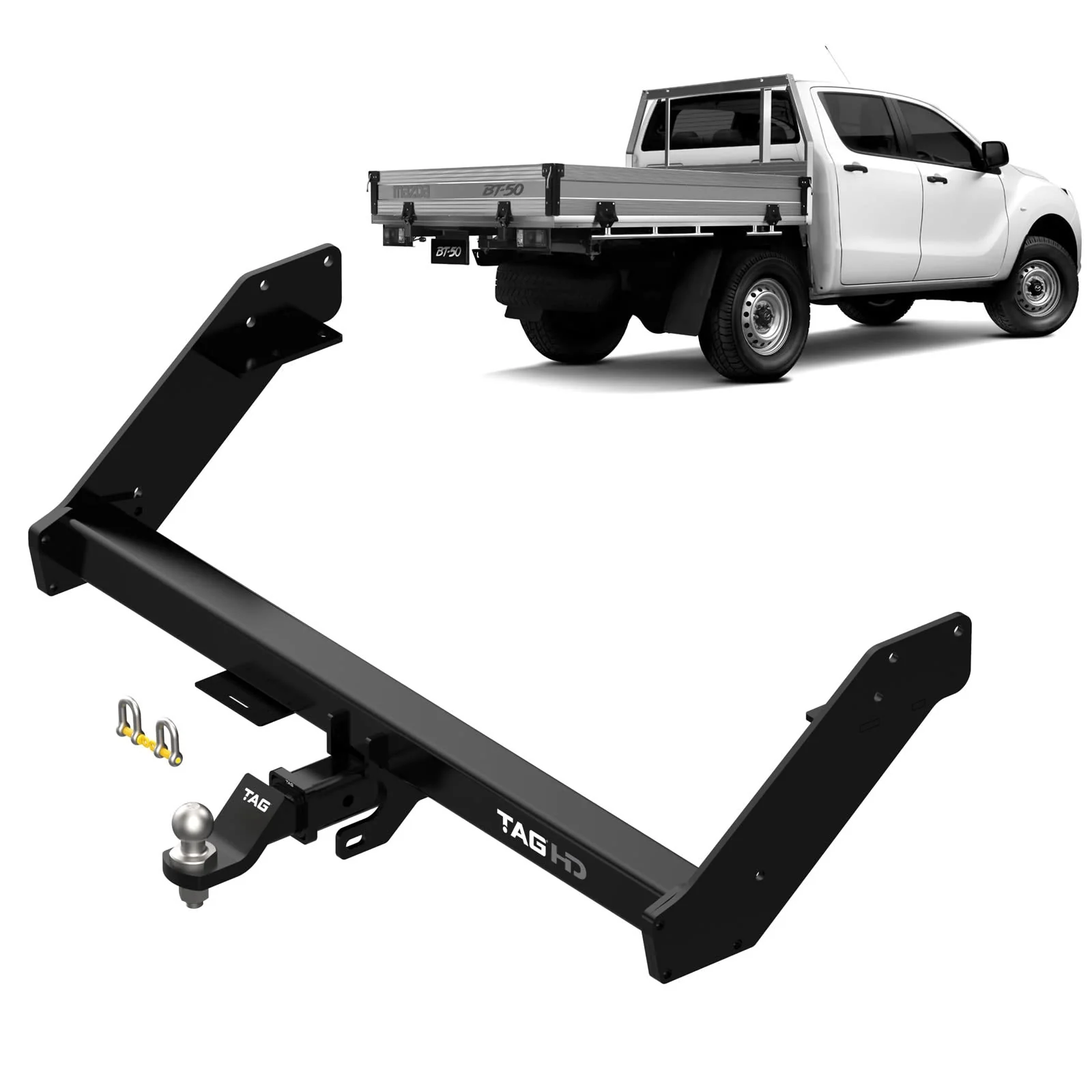

- TAG Heavy Duty Extended 3-Piece Towbar (T7F706)

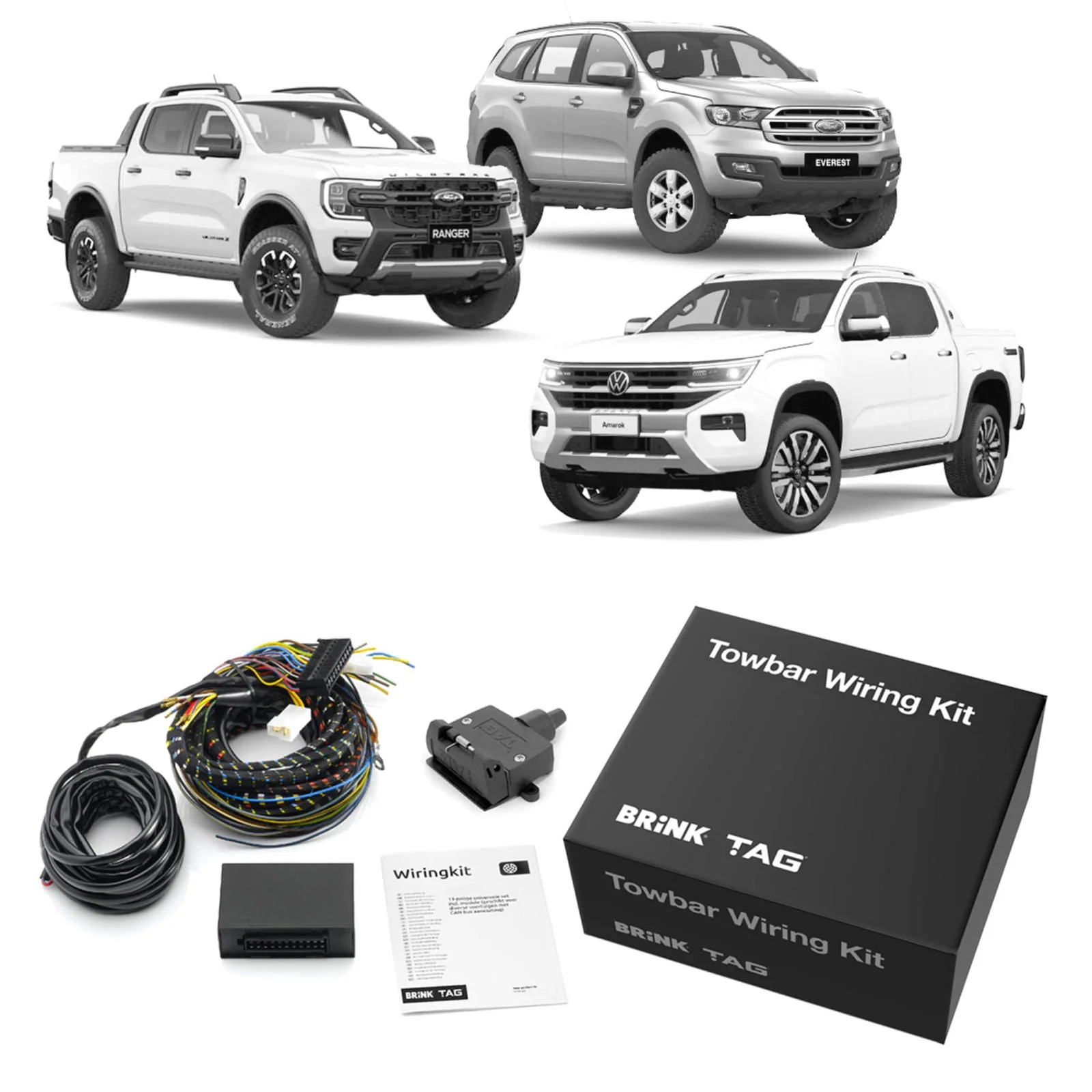

- BRINK Direct Fit CANbus Wiring Harness with 7 Pin Flat plug (BR-712365)
- 7-Pin Flat Socket
Towbar Features:
- Designed and manufactured in Australia
- Extended, 3-Piece Design (Suits Extended Tray or Canopy)
- Class 4 Towbar - 50mm Square Hitch Receiver (50mm x 50mm)
- Durable Powder Coated Finish
- TAG Limited Lifetime Warranty
- Towbar includes Tow Ball, Tow Ball Mount (L4045), Hitch Pin & R-Clip and D-Shackles
Brink Wiring Harness Features:
- CANBUS Direct Fit Wiring with ECU module
- Compatible with Trailer Stability Programming (TSP), Lane Collision Avoidance systems, Park Distance Controls (PDC).
- Full trailer light functionality and no fault codes without coding tool.
- Does not interfere with brake lights, turning signals and live wire connection.
- Each kit includes harness, ECU module, 7-Pin Flat Socket, installation instructions and connection guide.
- BRINK Limited Lifetime Warranty.
Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.
Specifications:
- Towbar Class: Heavy Duty (Extended 3-Piece)
- Towbar Capacity [kg]: 3500
- Static Load Capacity (Ball Weight) [kg]: 350
- Hitch Type: 50mm Square Hitch Receiver
- Coating: Powder Coated
- Tow Ball Mount: L4045
- Exposure: Exposed
Wiring Specifics:
- Plug Connection: 7 Pin Flat Socket
- Wiring Option: CANBUS Direct Fit Wiring
- Fog Cut Off: Automatic
- Diagnostic Coding: Optional For All Features
- Reverse Sensor Cut Off: Coding required for feature cut-off
- Fitting Time [min.] (Towbar): 30
- Fitting Time [min.] (Wiring): 60
Important Information
- The image shown may not reflect the actual product
- Shipping times may vary depending on destination and stock availability
Vehicle Applications for Ford Ranger (09/2011 - 06/2022)
| Make | Model | Year Start - Year End | Body Type | Series | Engine Details | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|
| Ford Ranger (09/2011 - 06/2022) | |||||||
| FORD | RANGER | 10/2018 - 05/2022 | Cab Chassis | PX3 | P4AT | 2.2L | Diesel | XL Double Cab | 4WD |
| FORD | RANGER | 10/2018 - 05/2022 | Cab Chassis | PX3 | P5AT | 3.2L | Diesel | XL Double Cab | 4WD |
| FORD | RANGER | 10/2018 - 05/2022 | Cab Chassis | PX3 | P4AT | 2.2L | Diesel | XL Hi-Rider | RWD |
| FORD | RANGER | 10/2018 - 05/2022 | Cab Chassis | PX3 | P4AT | 2.2L | Diesel | XL Hi-Rider Double Cab | RWD |
| FORD | RANGER | 10/2018 - 05/2022 | Cab Chassis | PX3 | P4AT | 2.2L | Diesel | XL Hi-Rider Super Cab | RWD |
| FORD | RANGER | 10/2018 - 05/2022 | Cab Chassis | PX3 | P4AT | 2.2L | Diesel | XL Low Rider Single Cab | RWD |
| FORD | RANGER | 10/2018 - 05/2022 | Cab Chassis | PX3 | P5AT | 3.2L | Diesel | XL Single Cab | 4WD |
| FORD | RANGER | 10/2018 - 05/2022 | Cab Chassis | PX3 | P5AT | 3.2L | Diesel | XL Super Cab | 4WD |
| FORD | RANGER | 07/2016 - 05/2022 | Cab Chassis | PX (PX2, PX3) | P5AT | 3.2L | Diesel | XL, SPORT | Automatic/Manual 4WD |
| FORD | RANGER | 08/2015 - 05/2022 | Cab Chassis | PX2 | P4AT | 2.2L | Diesel | SUPER CAB XL HIRIDER | Manual RWD |
| FORD | RANGER | 08/2015 - 05/2022 | Cab Chassis | PX (PX2, PX3) | P4AT | 2.2L | Diesel | XL | Manual 4WD |
| FORD | RANGER | 08/2015 - 05/2022 | Cab Chassis | PX (PX2, PX3) | P4AT | 2.2L | Diesel | XL | Manual RWD |
| FORD | RANGER | 06/2015 - 05/2022 | Cab Chassis | PX (PXII, PXIII) | P4-AT | 2.2L | Diesel | TDdi | AWD |
| FORD | RANGER | 06/2015 - 05/2022 | Cab Chassis | PX (PXII, PXIII) | P4-AT | 2.2L | Diesel | TDdi | RWD |
| FORD | RANGER | 11/2011 - 05/2022 | Cab Chassis | PX (PX, PXII, PXIII) | P5-AT | 3.2L | Diesel | TDdi | 4WD |
| FORD | RANGER | 09/2011 - 06/2022 | Cab Chassis | PX (PX1, PX2, PX3) | P5AT | 3.2L | Diesel | SUPER CAB XL | Automatic/Manual 4WD |
| FORD | RANGER | 09/2011 - 03/2022 | Cab Chassis | PX (PX1, PX2, PX3) | P5AT | 3.2L | Diesel | XL, XL PLUS | Manual 4WD |
| FORD | RANGER | 11/2011 - 06/2015 | Cab Chassis | PX | P4-AT | 2.2L | Diesel | TDdi | RWD |
