BRINK | Direct Fit Wiring Harness | Mazda BT-50 UP, TF 2011–2015 | BR-712065
BRINK Direct Fit Wiring Harness Solution for your Mazda BT-50 UP TF
The BRINK Direct Fit CAN-Bus Wiring Harness (BR-712065) is a premium electrical solution developed in partnership with TAG® and Brink® specifically for the Mazda BT-50 (11/2011 - 08/2015). This plug-n-play APAC kit ensures your trailer lighting is powered safely without compromising your vehicle's modern safety systems.
Engineered for seamless integration, this wiring kit is bench tested and rated to current ADR standards. It is designed to work in harmony with your BT-50's electronics, providing a safe connection for trailer stability and collision avoidance systems.
- Plug-and-Play: No special tools or soldering required for installation.
- Advanced Compatibility: Fully supports Trailer Stability Programming (TSP), Lane Collision Avoidance, and Park Distance Controls (PDC).
- CAN-Bus Ready: Designed specifically for modern digital electrical systems.

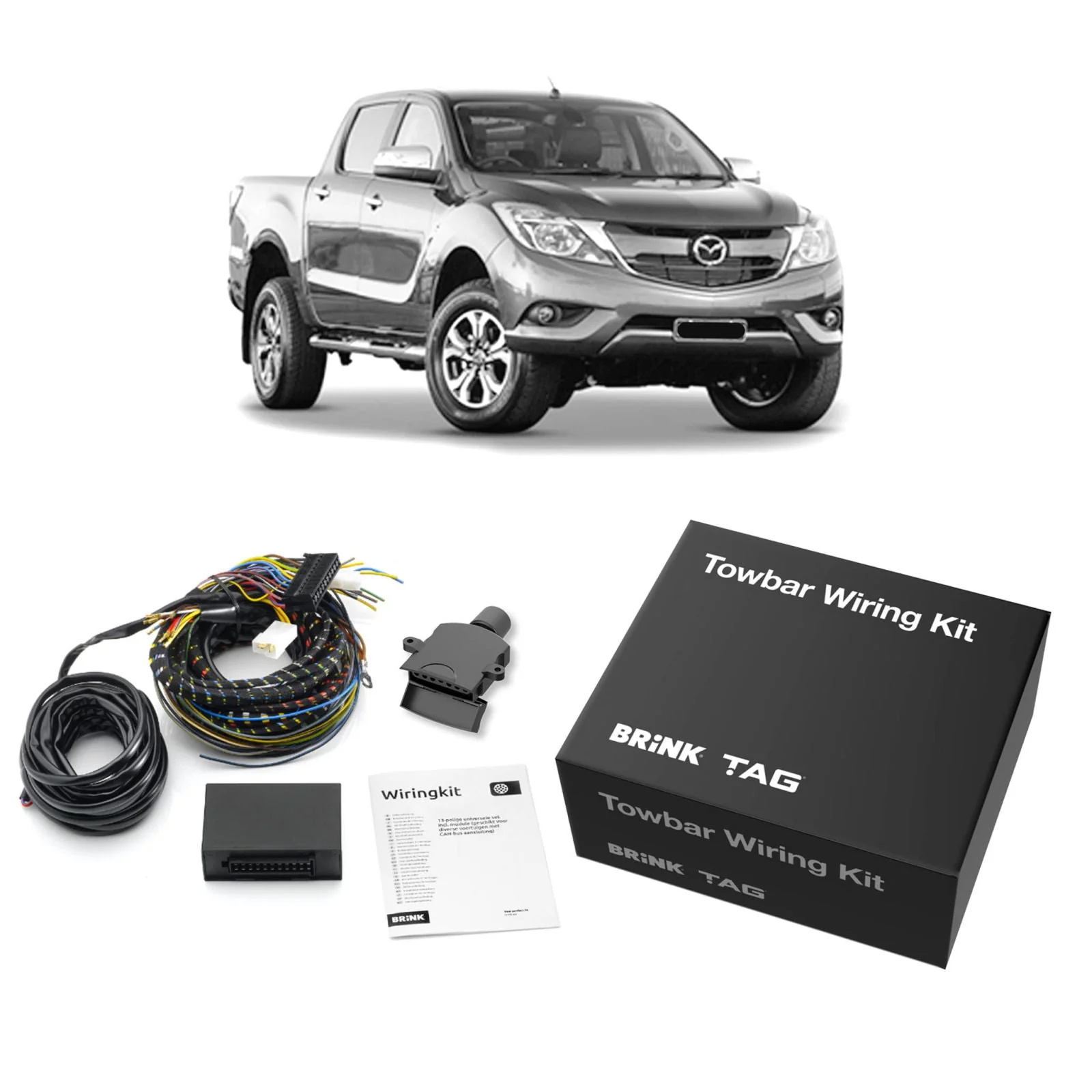

- Complete Package: Includes harness, ECU module, 7-Pin Flat Socket, and detailed connection guide.
- Automatic Cut-Off: Features automatic reverse sensor cut-off for ease of use while towing.
Please Note: A wiring harness is a safety critical item. We strongly recommend you get your wiring harness installed by a professional towbar or vehicle accessory fitting workshop to ensure correct functionality and safety.
Specifications:
- Wiring Option: Direct Fit CAN-Bus Wiring Harness
- Plug Connection: 7 Pin Flat Socket
- Fitting Time [min.]: 60
- Diagnostic Coding: Optional
- Reverse Sensor Cut Off: Automatic
Important Information
- The image shown may not reflect the actual product
- Shipping times may vary depending on destination and stock availability
Vehicle Applications
| Make | Model | Year Range | Body Type | Series | Engine | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|
| MAZDA | BT-50 | 11/2011 - 08/2015 | Cab Chassis | TF | RZ4E-TC | 1.9L | Diesel | - | AWD |
| MAZDA | BT-50 | 11/2011 - 08/2015 | Cab Chassis | TF | RZ4E-TC | 1.9L | Diesel | - | RWD |
| MAZDA | BT-50 | 11/2011 - 08/2015 | Cab Chassis | 819C | RZ4E-TC | 2.0L | Diesel | XS | Automatic RWD |
| MAZDA | BT-50 | 11/2011 - 08/2015 | Ute | TF | RZ4E-TC | 1.9L | Diesel | - | 4WD |
| MAZDA | BT-50 | 11/2011 - 08/2015 | Ute | 819C | RZ4E-TC | 2.0L | Diesel | XS | Automatic 4WD |
| MAZDA | BT-50 | 11/2011 - 08/2015 | Ute | B19C | RZ4E-TC | 2.0L | Diesel | XS | Automatic RWD |
| MAZDA | BT-50 | 11/2011 - 08/2015 | Ute | TF | RZ4E-TC | 1.9L | Diesel | 4x2 | RWD |
| MAZDA | BT-50 | 11/2011 - 08/2015 | Cab Chassis | B30B | 4JJ3-TCX | 3.0L | Diesel | XT | Automatic/Manual 4WD |
| MAZDA | BT-50 | 11/2011 - 08/2015 | Cab Chassis | B30B | 4JJ3-TCX | 3.0L | Diesel | XT | Automatic RWD |
| MAZDA | BT-50 | 11/2011 - 08/2015 | Cab Chassis | B30B | 4JJ3-TCX | 3.0L | Diesel | XT FREESTYLE | Automatic/Manual 4WD |
| MAZDA | BT-50 | 11/2011 - 08/2015 | Cab Chassis | B30B | 4JJ3-TCX | 3.0L | Diesel | XT FREESTYLE | Automatic RWD |
| MAZDA | BT-50 | 11/2011 - 08/2015 | Ute | B30B | 4JJ3-TCX | 3.0L | Diesel | GT, XT, XTR | Automatic/Manual 4WD |
| MAZDA | BT-50 | 11/2011 - 08/2015 | Ute | B30B | 4JJ3-TCX | 3.0L | Diesel | XT, XTR | Automatic RWD |
| MAZDA | BT-50 | 11/2011 - 08/2015 | Cab Chassis | TF | 4JJ3-TCX | 3.0L | Diesel | - | 4WD |
| MAZDA | BT-50 | 11/2011 - 08/2015 | Cab Chassis | TF (TFS40JDR, TFS40JPR) | 4JJ3-TCX | 3.0L | Diesel | - | AWD |
| MAZDA | BT-50 | 11/2011 - 08/2015 | Cab Chassis | TF (TFR40JDR, TFR40JPR) | 4JJ3-TCX | 3.0L | Diesel | - | RWD |
| MAZDA | BT-50 | 11/2011 - 08/2015 | Cab Chassis | TF | 4JJ3-TCX | 3.0L | Diesel | - | RWD |
| MAZDA | BT-50 | 11/2011 - 08/2015 | Cab Chassis | UP | P5AT | 3.2L | Diesel | XT | Manual RWD |
| MAZDA | BT-50 | 11/2011 - 08/2015 | Cab Chassis | UP | P5AT | 3.2L | Diesel | XT | Manual 4WD |
| MAZDA | BT-50 | 11/2011 - 08/2015 | Cab Chassis | UP | P4AT | 2.2L | Diesel | XT | Automatic/Manual RWD |
| MAZDA | BT-50 | 11/2011 - 08/2015 | Cab Chassis | UP | P5AT | 3.2L | Diesel | XT FREESTYLE CAB | 4WD |
| MAZDA | BT-50 | 11/2011 - 08/2015 | Cab Chassis | UP | P5AT | 3.2L | Diesel | XT FREESTYLE CAB | RWD |
| MAZDA | BT-50 | 11/2011 - 08/2015 | Cab Chassis | UP | P5AT | 3.2L | Diesel | XT| XTR FREESTYLE | Automatic/Manual 4WD |
| MAZDA | BT-50 | 11/2011 - 08/2015 | Ute | UP | P5AT | 3.2L | Diesel | GT, XT, XTR | Automatic/Manual 4WD |
| MAZDA | BT-50 | 11/2011 - 08/2015 | Ute | B22, B32, UP, UR | P4-AT | 2.2L | Diesel | MZ-CD | RWD |
| MAZDA | BT-50 | 11/2011 - 08/2015 | Ute | UP | P5AT | 3.2L | Diesel | XTR FREESTYLE CAB | 4WD |
| MAZDA | BT-50 | 11/2011 - 08/2015 | Ute | UP | P5AT | 3.2L | Diesel | XT, XTR | Automatic/Manual RWD |
