TAG | 4x4 Recovery Towbar | Ford Ranger PY VW Amarok NF Cab Chassis 2022–2026 | TXR836
TAG 4x4 Recovery Towbar Solution for your Ford Ranger and VW Amarok

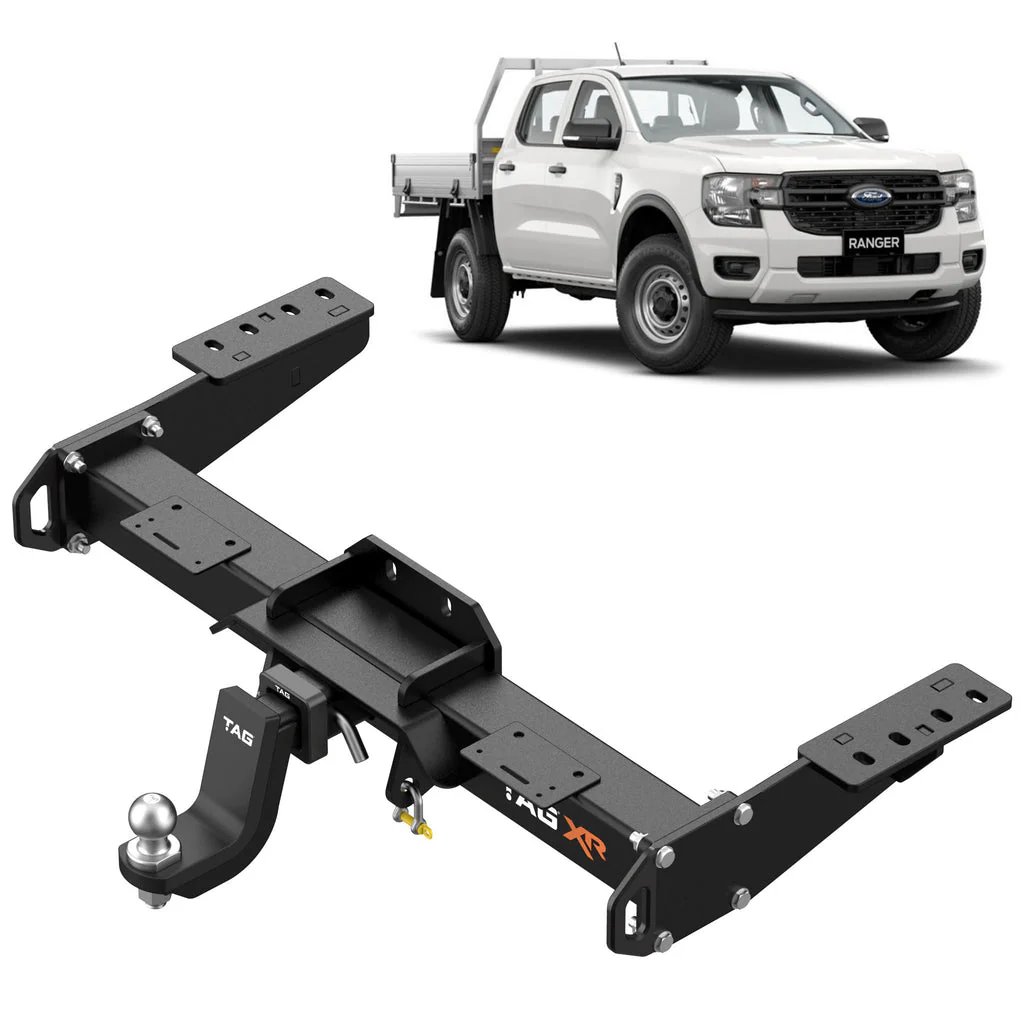

The TAG Extreme Recovery (XR) Towbar (TXR836) is the definitive heavy-duty towing and recovery solution for the Next-Gen Ford Ranger (06/2022–Onwards) and Volkswagen Amarok (12/2022–Onwards) Cab Chassis models. Engineered and built in Australia, this bar is designed for professional trade, fleet, and off-road applications where extreme recovery capability is non-negotiable. It features a massive 89mm x 89mm reinforced crossbar and two integrated 4500kg WLL recovery points with bevelled edges optimized for soft-shackles. The flush chassis-mounted profile maximizes departure angles for superior off-road clearance. Offering a full 3500kg towing capacity, this Class 4 towbar includes dual top-mounted trailer and Anderson plug mounts, a zinc tow ball, and an extreme-duty drop hitch.
Key Features:
- 89mm x 89mm Extreme Duty Reinforced Crossbar
- Two Integrated 4500kg WLL Recovery Points (Soft-Shackle friendly)
- 3500kg Towing Capacity / 350kg Ball Weight
- Flush Chassis-Mounted Profile for maximum off-road clearance
- Dual top-mounted Trailer & Anderson Plug Mounts
- Highly durable, Textured Extreme Duty Powder Coated Finish
- Class 4 Towbar - 50mm Square Hitch Receiver
- Includes: Zinc Tow Ball, Extreme Duty Drop Hitch (L4171TXR), Pin & Clip, and D-Shackles
- TAG Limited Lifetime Warranty
Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.
Specifications:
- Towbar Class: Heavy Duty (4x4 Recovery)
- Towbar Capacity [kg]: 3500
- Static Load Capacity (Ball Weight) [kg]: 350
- Recovery Load-tested: 4500kg WLL
- Recovery Points: 2
- Hitch Type: 50mm Square Hitch Receiver
- Tow Ball Mount: L4171TXR
- Coating: Textured Powder Coated
- Bumper Removed During Fitment: No
- Exposure: Exposed
- Towbar Fitting Time [min.]: 60
Important Information
- The image shown may not reflect the actual product
- Shipping times may vary depending on destination and stock availability
Full Vehicle Applications List
| Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|---|
| VOLKSWAGEN | AMAROK | 12/2022 | - | Cab Chassis | NF | DXKB | 2.0L | Diesel | TDI405 CORE 4MOTION | Automatic/Manual AWD |
| VOLKSWAGEN | AMAROK | 12/2022 | - | Cab Chassis | NF | DXKA | 2.0L | Diesel | TDI500 4MOTION | Automatic AWD |
| VOLKSWAGEN | AMAROK | 12/2022 | - | Cab Chassis | NF | DXWA | 3.0L | Diesel | TDI600 4MOTION | Automatic AWD |
| VOLKSWAGEN | AMAROK | 12/2022 | - | Cab Chassis | NF | DXVA | 2.2L | Petrol | TSI452 AVENTURA 4MOTION | Automatic AWD |
| FORD | RANGER | 04/2023 | - | Cab Chassis | PY, T6.2 | P025 | 2.0L | Diesel | XL HI- RIDER | Automatic RWD |
| FORD | RANGER | 11/2022 | - | Cab Chassis | PY, T6.2 | P025 | 2.0L | Diesel | XL HI- RIDER SUPER CAB | Automatic RWD |
| FORD | RANGER | 06/2022 | - | Cab Chassis | PY | YN2S | 2.0L | Diesel | Bi-Turbo | AWD |
| FORD | RANGER | 06/2022 | - | Cab Chassis | PY | YN2S | 2.0L | Diesel | Bi-Turbo | RWD |
| FORD | RANGER | 06/2022 | - | Cab Chassis | PY | P02S | 2.0L | Diesel | Turbo | AWD |
| FORD | RANGER | 06/2022 | - | Cab Chassis | PY | BF2S | 3.0L | Diesel | Turbo | AWD |
| FORD | RANGER | 06/2022 | - | Cab Chassis | PY | P02S | 2.0L | Diesel | Turbo | RWD |
| FORD | RANGER | 06/2022 | - | Cab Chassis | T6.2 | 2.0L | Diesel | XL | Automatic 4WD |
| FORD | RANGER | 06/2022 | - | Cab Chassis | T6.2 | 2.0 | 2.0L | Diesel | XL | Automatic 4WD |
| FORD | RANGER | 06/2022 | - | Cab Chassis | T6.2 | 2.0L | Diesel | XL HI-RIDER | Automatic RWD |
| FORD | RANGER | 06/2022 | - | Cab Chassis | PY, T6.2 | P02S | 2.0L | Diesel | XL HI- RIDER SUPER CAB | Automatic RWD |
| FORD | RANGER | 06/2022 | - | Cab Chassis | PY, T6.2 | YN2S | 2.0L | Diesel | XL SUPER CAB | Automatic 4WD |
| FORD | RANGER | 06/2022 | - | Cab Chassis | T6.2 | 3.0L | Diesel | XLT, SPORT, WILDTRAK | Automatic 4WD |
