TAG Extreme Recovery Towbar Solution for your Nissan Patrol Y62 Wagon

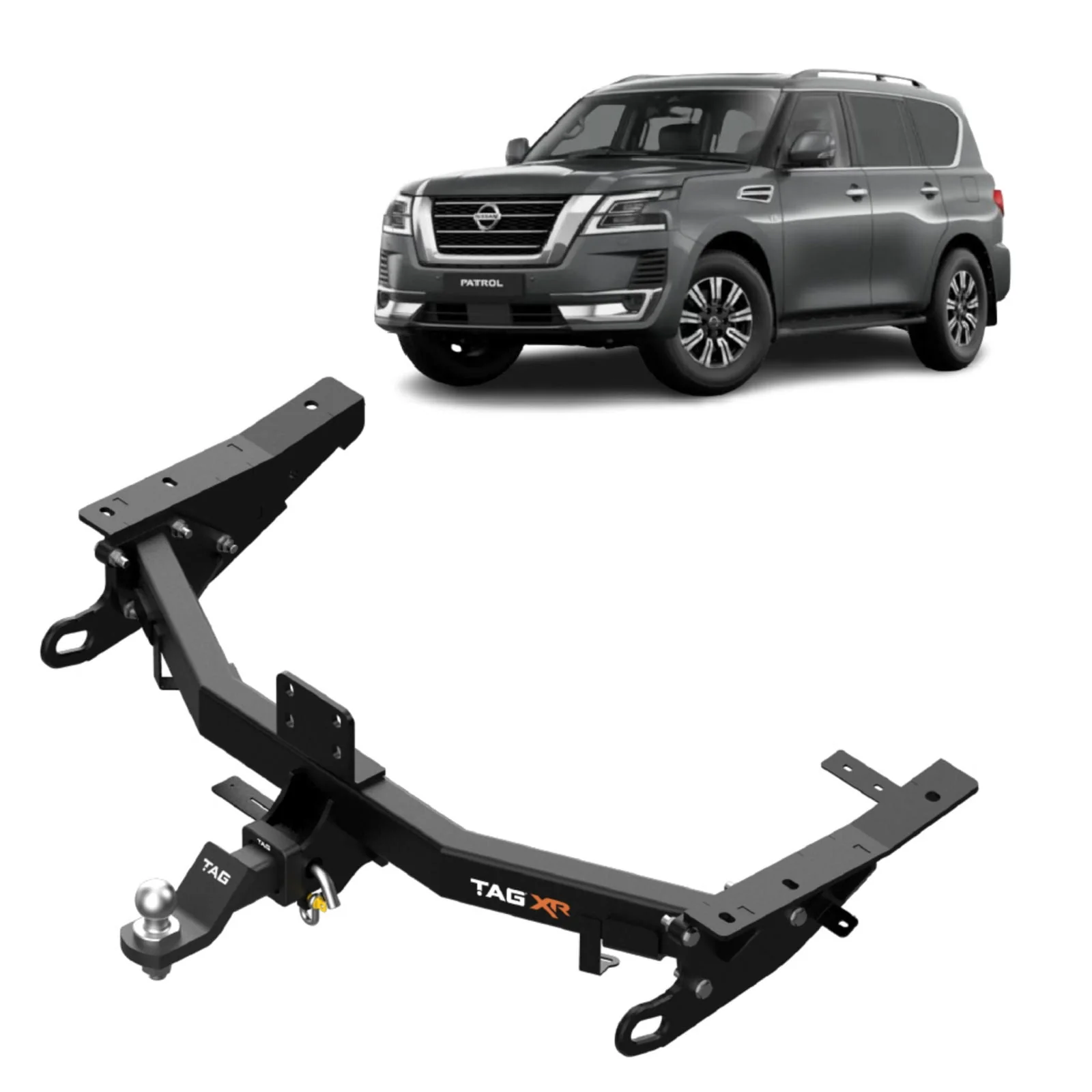

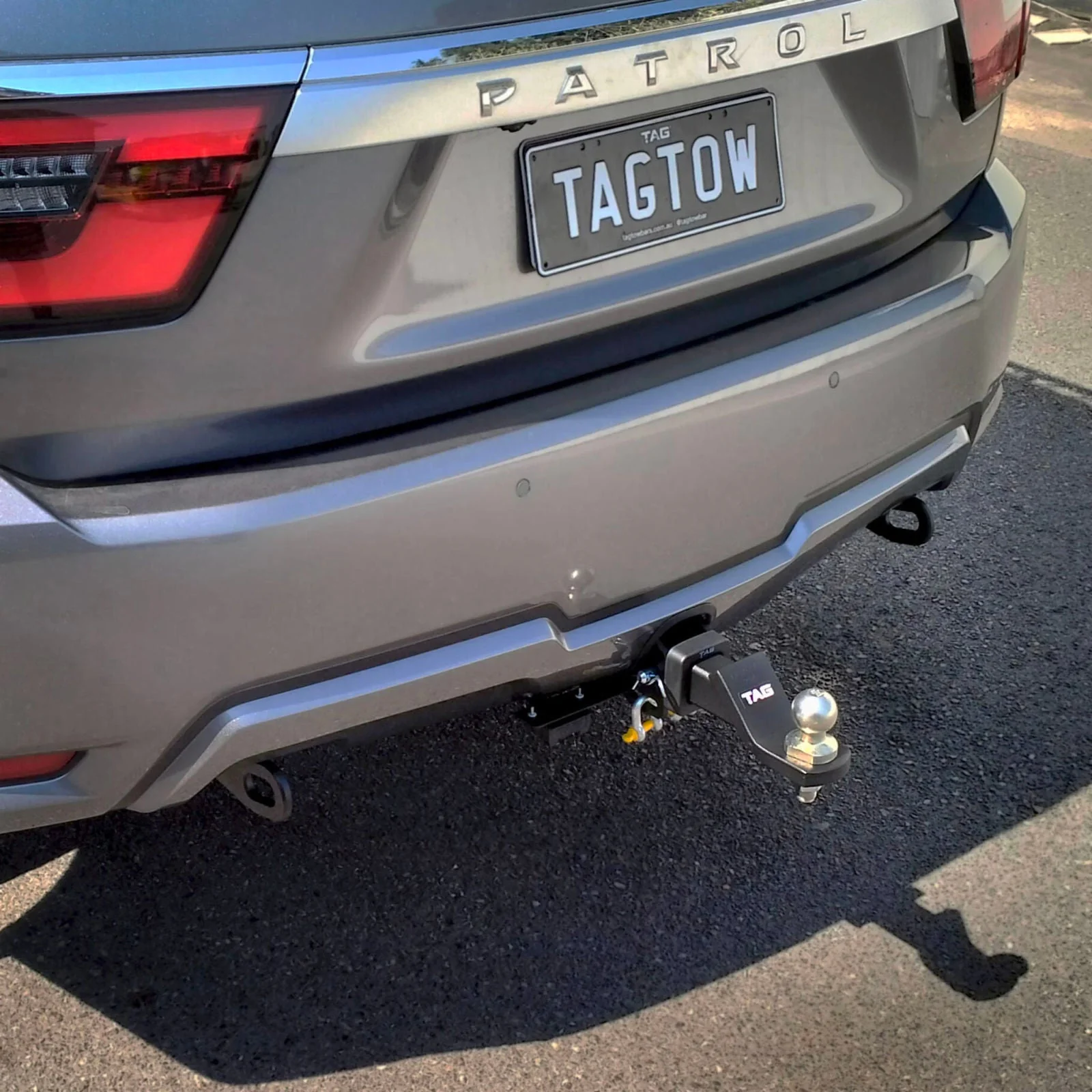

The TAG Extreme Recovery (XR) Towbar (TXR852) is the ultimate heavy-duty upgrade designed for the Nissan Patrol Y62 Wagon Series 1-5 (12/2012 - onwards). Engineered and built in Australia, this bar is specifically crafted for professional trade, fleet, and serious off-road enthusiasts. It features a unique 3-piece design with two integrated 4000kg WLL load-rated recovery points, featuring bevelled edges compatible with soft shackles for safer vehicle recoveries. The flush, chassis-mounted profile significantly improves departure angles and provides maximum off-road clearance. Rated for 3500kg towing capacity and 350kg ball weight, it includes dual top-mounted trailer and Anderson plug mounts for protected electrical connections. Finished in a rugged textured powder coating, this kit comes complete with a zinc tow ball, extreme-duty drop hitch, pin & clip, and d-shackles.
Key Features:
- Two Integrated WLL 4000kg Load-Rated Recovery Points
- 3500kg Towing Capacity / 350kg Static Ball Weight
- Flush Chassis-Mounted Profile for maximum off-road clearance
- 3-Piece Design side-arms with bevelled edges to suit soft-shackles
- Dual top-mounted Trailer & Anderson Plug Mounts
- Durable Textured Powder Coated Finish
- TAG Limited Lifetime Warranty
- Includes: Zinc Tow Ball, Extreme Duty Drop Hitch, Pin & Clip, and D-Shackles
- Proudly Designed and Manufactured in Australia
Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.
Specifications:
- Towbar Class: Heavy Duty (4x4 Recovery)
- Towbar Capacity [kg]: 3500
- Recovery Load-tested: 4000kg WLL
- Recovery Points: 2
- Static Load Capacity (Ball Weight) [kg]: 350
- Hitch Type: 50mm Square Hitch Receiver
- Tow Ball Mount: L4045TXR
- Coating: Textured Powder Coated
- Bumper Removed During Fitment: Yes
- Bumper Cut Out Required: Yes
- Exposure: Concealed
- Towbar Fitting Time [min.]: 90
Important Information
- The image shown may not reflect the actual product
- Shipping times may vary depending on destination and stock availability
Full Vehicle Applications List
| Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|---|
| NISSAN | PATROL | 02/2013 | - | Wagon | Y62 | VK56VD | 5.6L | Petrol | ST-L| Ti| Ti-L | Automatic 4WD |
| NISSAN | PATROL | 12/2012 | - | Wagon | Y62 | VK56VD | 5.6L | Petrol | AWD |
