TAG | Rear Step, Towbar & Universal Wiring Kit | Hyundai Staria US 2021–On | T7Z829-K311
TAG Rear Step, Towbar & Wiring Solution for your Hyundai Staria US Series

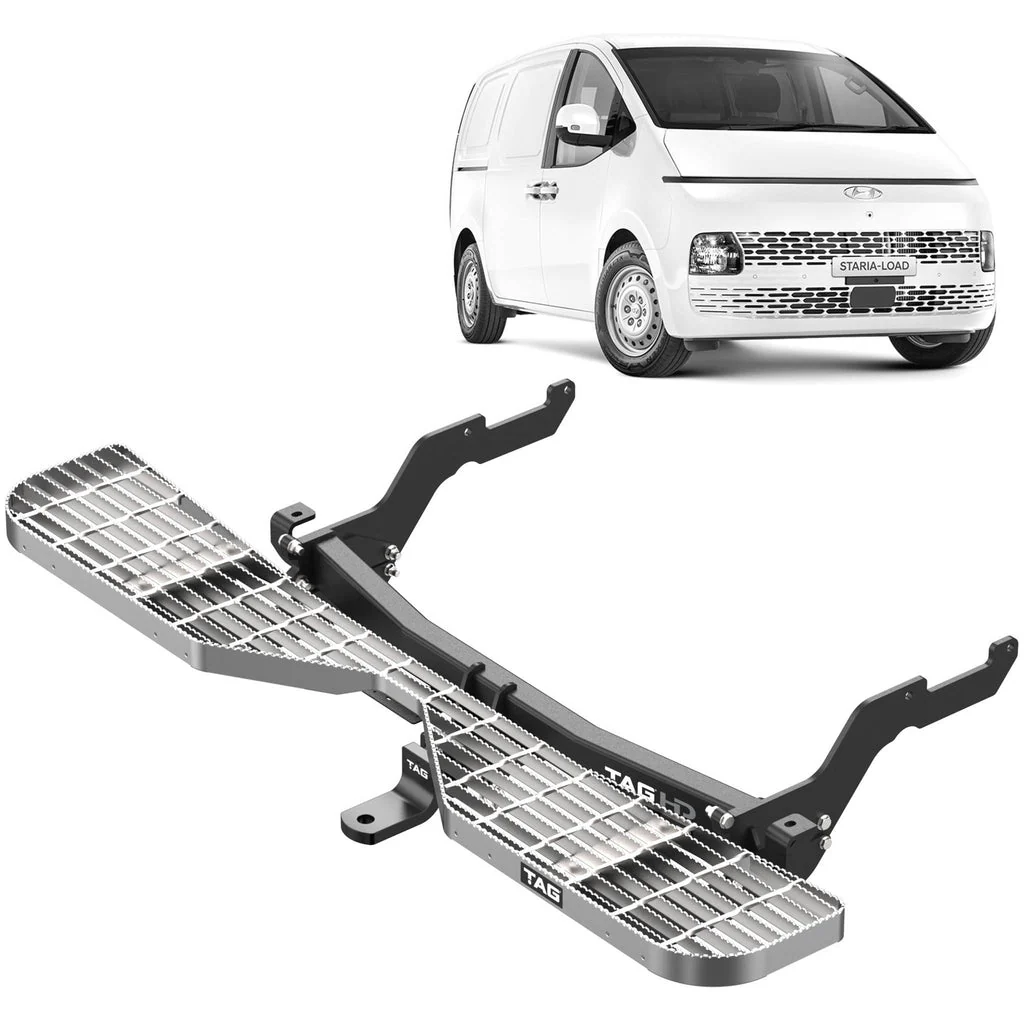

The TAG Complete Rear Step, Towbar & Wiring Kit (T7Z829-K311) provides the ultimate heavy-duty 2500kg towing and rear access solution for the Hyundai Staria Van/Wagon (US Series, 01/2021 - On). This comprehensive kit includes the 3-Piece Towbar, Galvanised Rear Step, Sensor Relocation Brackets, and a Universal Wiring Harness.
Kit Includes:
- TAG Heavy Duty 3-Piece Towbar (T7Z829)
- TAG Galvanised Rear Step (TRS002)
- TAG Sensor Bracket Kit
- TAG Universal Wiring Harness (UNTEC2W)
- TAG 7 Pin Flat Socket - Vehicle Side
Engineered for precision fitment and durability, the TAG Rear Step & Towbar combination delivers long-lasting, reliable support, featuring:

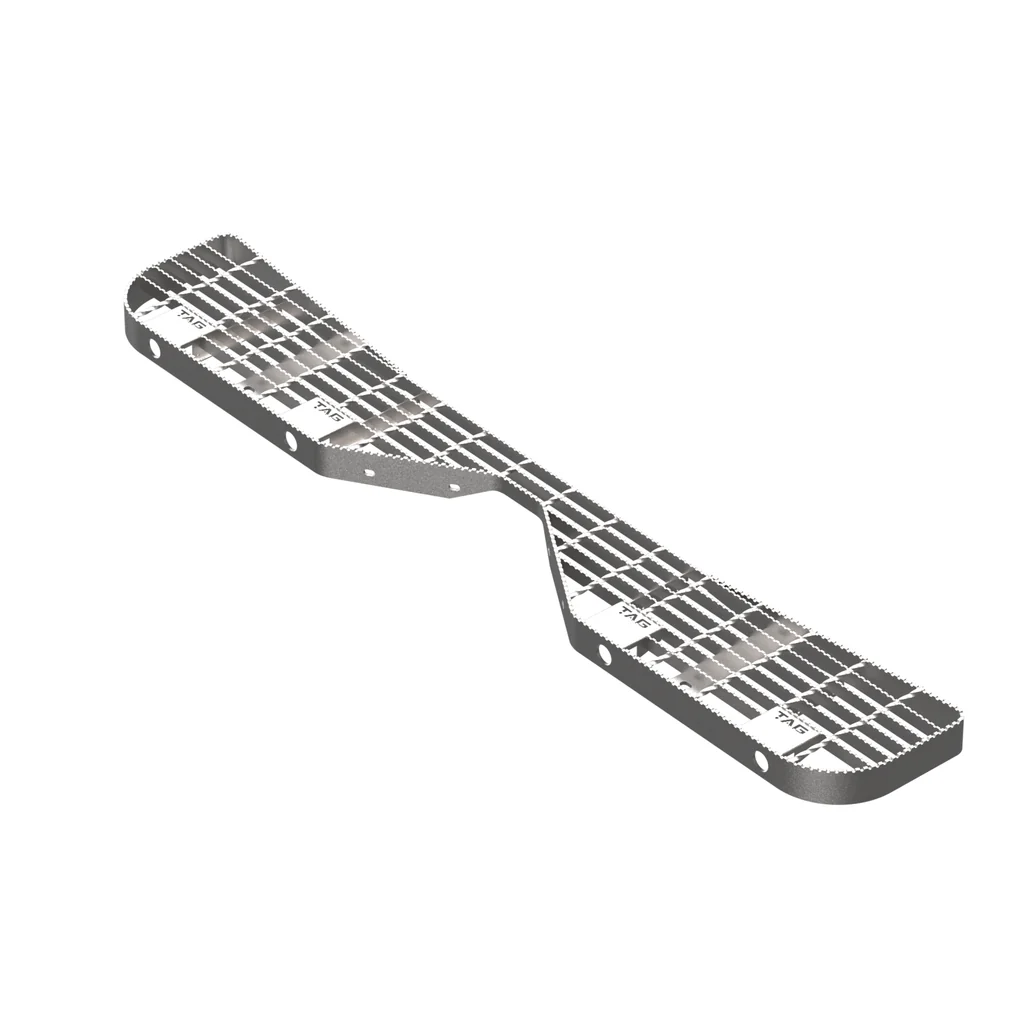

- New and Improved Galvanised Rear Step with dedicated holes for sensor brackets
- Includes Sensor Bracket kit designed to relocate the RPA (Reverse Park Assist) sensors from the vehicle bumper bar to the TAG galvanized step
- Step features 250kg Static Load Rating
- Durable Powder Coated Towbar and Brackets
- Class 4 Towbar - 50mm Square Hitch Receiver
- Towbar utilises factory mounting points for ease of fitment
- TAG Limited Lifetime Warranty
- Towbar includes - Tow Ball, Tow Ball Mount (L4180), Pin & Clip and D-Shackles
Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.
Specifications:
- Towbar Combination: Rear Step & Towbar
- Towbar Class: Heavy Duty (3-Piece Design)
- Towbar Capacity [kg]: 2500
- Ball Weight [kg]: 100
- Static Load Capacity [kg]: 250 (Rear Step)
- Hitch Type: 50mm Square Hitch Receiver
- Tow Ball Mount: L4180
- Step Coating: Galvanised (TRS002)
- Towbar Coating: Powder Coated (T7Z829)
- Exposure: Exposed (Rear Step Combination)
- Bumper Removed During Fitment: Yes
- Bumper Cut Out Required: Yes
- Combined Fitting Time [min.]: ~240 (Towbar & Step 120 + Wiring 120)
Wiring Specifics:

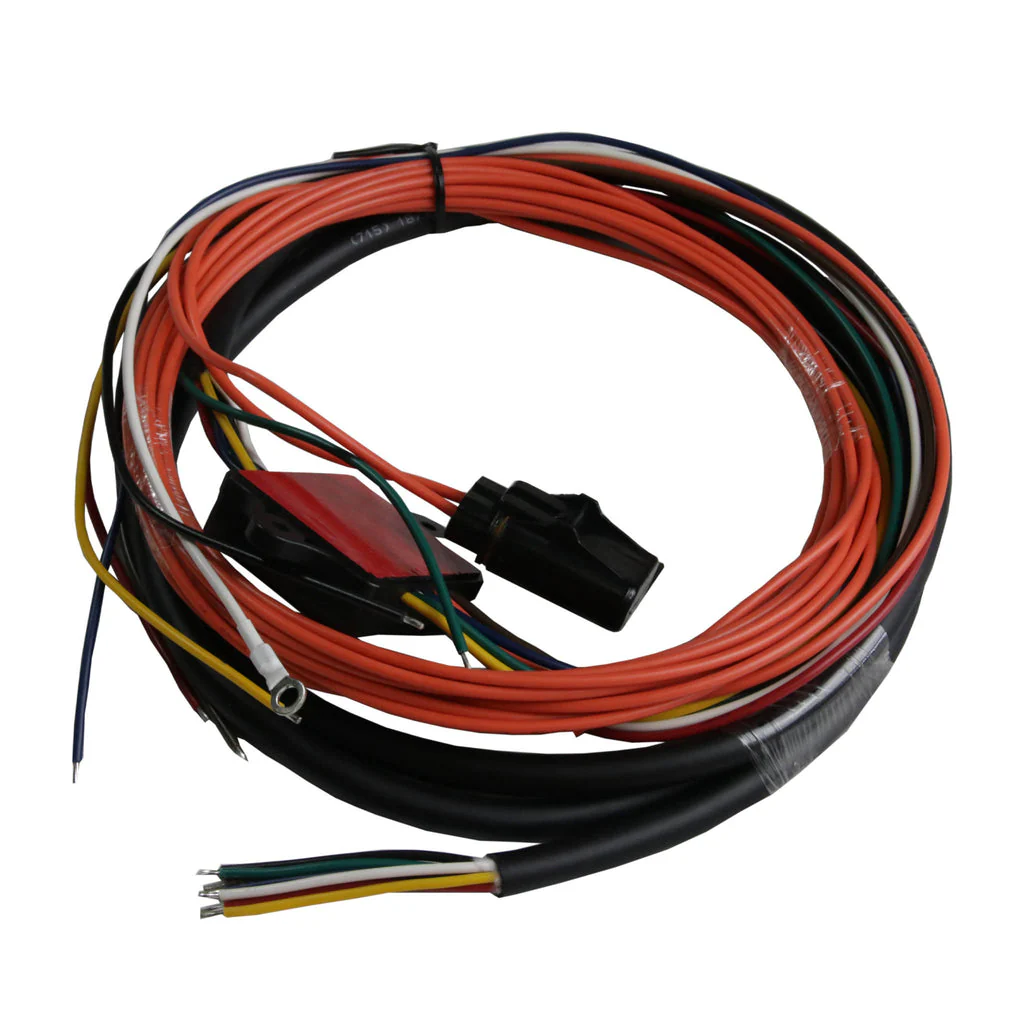

- Wiring Option: Universal Wiring Harness
- Plug Style: 7 Pin Flat
- Type: Plugs & Sockets
Important Information
- The image shown may not reflect the actual product
- Shipping times may vary depending on destination and stock availability
Vehicle Applications for Hyundai Staria (01/2021 - on)
| Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|---|
| Hyundai Staria (01/2021 - on) | ||||||||
| HYUNDAI | STARIA | 06/2021 | - | Van/Wagon | US | D4HB | 2.2L | Diesel | LOAD, 5S | Automatic FWD |
| HYUNDAI | STARIA | 06/2021 | - | Van/Wagon | US | D4HB | 2.2L | Diesel | LOAD, 5S, LR 2S | Automatic/Manual FWD |
| HYUNDAI | STARIA | 06/2021 | - | Wagon | US | D4HB | 2.2L | Diesel | 5S, ELITE, HIGHLANDER | Automatic AWD |
| HYUNDAI | STARIA | 06/2021 | - | Wagon | US | G6DU | 3.5L | Petrol | ELITE, HIGHLANDER | Automatic FWD |
| HYUNDAI | STARIA | 01/2021 | - | Bus | US4 | D4HB | 2.2L | Diesel | CRDi | AWD |
| HYUNDAI | STARIA | 01/2021 | - | Bus | US4 | G6DU | 3.5L | Petrol | MPi | FWD |
| HYUNDAI | STARIA | 01/2021 | - | Van | US4 | D4HB | 2.2L | Diesel | CRDi | FWD |
