TAG | Heavy Duty Towbar Kit | Toyota Landcruiser 300 & Prado 250 Series 2021–on | TKT864
TAG Heavy Duty Towbar Kit Solution for your Toyota Landcruiser 300 Prado 250
The TAG Heavy Duty Towbar Kit (TKT864) is the premier towing solution for the latest generation of Toyota off-roaders. Engineered for the Landcruiser 300 Series and the all-new Prado 250 Series, this kit provides a robust 3500kg towing capacity, ensuring you are ready for heavy-duty caravans, boats, or trailers.
Main Features:
- Heavy Duty Performance: Rated for a 3500kg Gross Trailer Weight and a substantial 350kg Ball Weight.

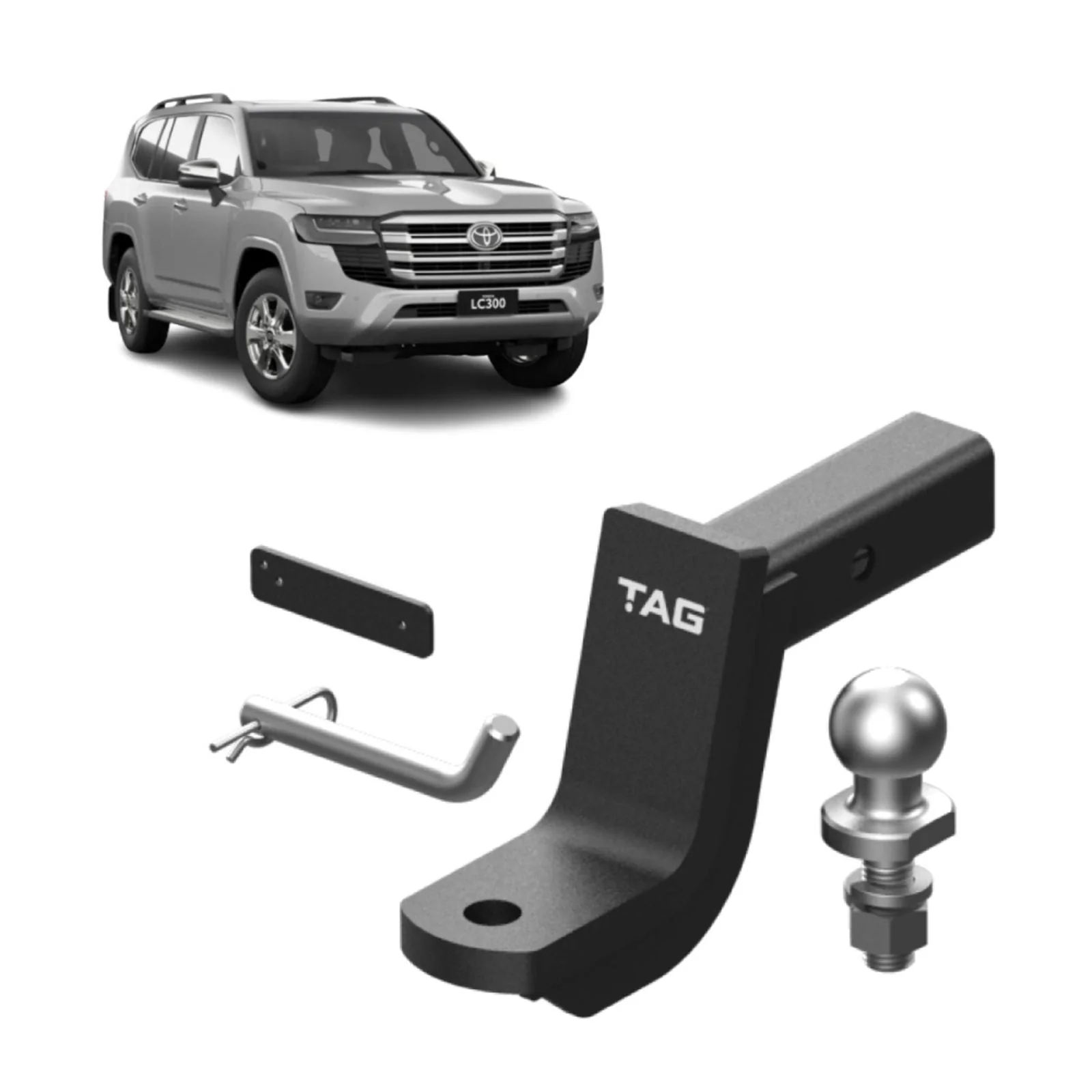

- Complete Hardware Kit: Includes a Heavy Duty L4171 Tow Ball Mount, 50mm Chrome Tow Ball, extra-long Class 4 Pin & Clip, and a 7-pin flat connector backing plate.
- Precision Engineering: Tow Ball Mounts are solid steel, CNC milled, and robotically welded for maximum consistency.
- Concealed Design: Features a sleek, concealed exposure that maintains the vehicle’s aesthetic.
- Durable Finish: Powder-coated for long-lasting protection against corrosion and the elements.
- ADR Compliant: Fully compliant with ADR 62/02 safety standards.
*Note: The wiring harness (UNT355) is not included in this kit and must be purchased separately to complete your electrical setup.
Specifications:
- Part Number: TKT864
- Towbar Class: Heavy Duty (Class 4)
- Towbar Capacity [kg]: 3500
- Ball Weight [kg]: 350
- Hitch Type: 50mm Square Hitch Receiver
- Tow Ball Mount: L4171 (Included)
- Fitting Time [min.]: 20
- Bumper Cut Out: No (Bumper cover removal required during fitment)
Important Information
- The image shown may not reflect the actual product
- Shipping times may vary depending on destination and stock availability
Vehicle Applications
Toyota Prado (05/2024 - on)
| Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|---|
| TOYOTA | PRADO | 08/2024 | - | Wagon | 250 Series | 1GD-FTV | 2.8L | Diesel | - | Automatic 4WD |
| TOYOTA | PRADO | 05/2024 | - | Wagon | GDJ251 | 1GD-FTV | 2.8L | Hybrid | D MHEV | 4WD |
Toyota Landcruiser (07/2021 - on)
| Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|---|
| TOYOTA | LANDCRUISER | 07/2021 | - | Wagon | 300 | F33A-FTV | 3.3L | Diesel | LC300 | Auto/Manual 4WD |
| TOYOTA | LANDCRUISER | 07/2021 | - | Wagon | 300R | F33A-FTV | 3.3L | Diesel | LC300 | Automatic 4WD |
| TOYOTA | LANDCRUISER | 07/2021 | - | Wagon | FJA300 | F33A-FTV | 3.3L | Diesel | TTD | AWD |
