TAG Direct Fit Wiring Harness Solution for your Ford Transit VO VM Series
The TAG Direct Fit Wiring Harness (BR-712255) is a high-performance CAN-Bus electrical integration kit developed in collaboration with Brink® Towbars. Specifically engineered for Ford Transit models produced between 2016 and 2024, this plug-n-play APAC harness provides a sophisticated power solution for your trailer or caravan. It is designed to integrate seamlessly with your vehicle's modern safety architecture, ensuring features like Trailer Stability Programming (TSP) and Lane Collision Avoidance systems remain fully functional while towing. This kit is essential for vehicles equipped with the Black CAN Connector, offering a safe and reliable connection without compromising complex onboard electronics.
Main Features:
- Black CAN Connector Compatibility: Specifically designed for Transit models featuring the factory Black CAN interface.
- Safety System Optimized: Full compatibility with Trailer Stability Programming (TSP), Lane Collision Avoidance, and Park Distance Controls (PDC).
- Intelligent Automatic Cut-off: Features automatic deactivation for both fog lights and reverse sensors when a trailer is detected.
- Plug-and-Play Installation: Efficient 120-minute setup with no special tools, wire cutting, or soldering required.
- ADR Rated: Bench tested and certified to Australian Design Rules standards for total peace of mind.

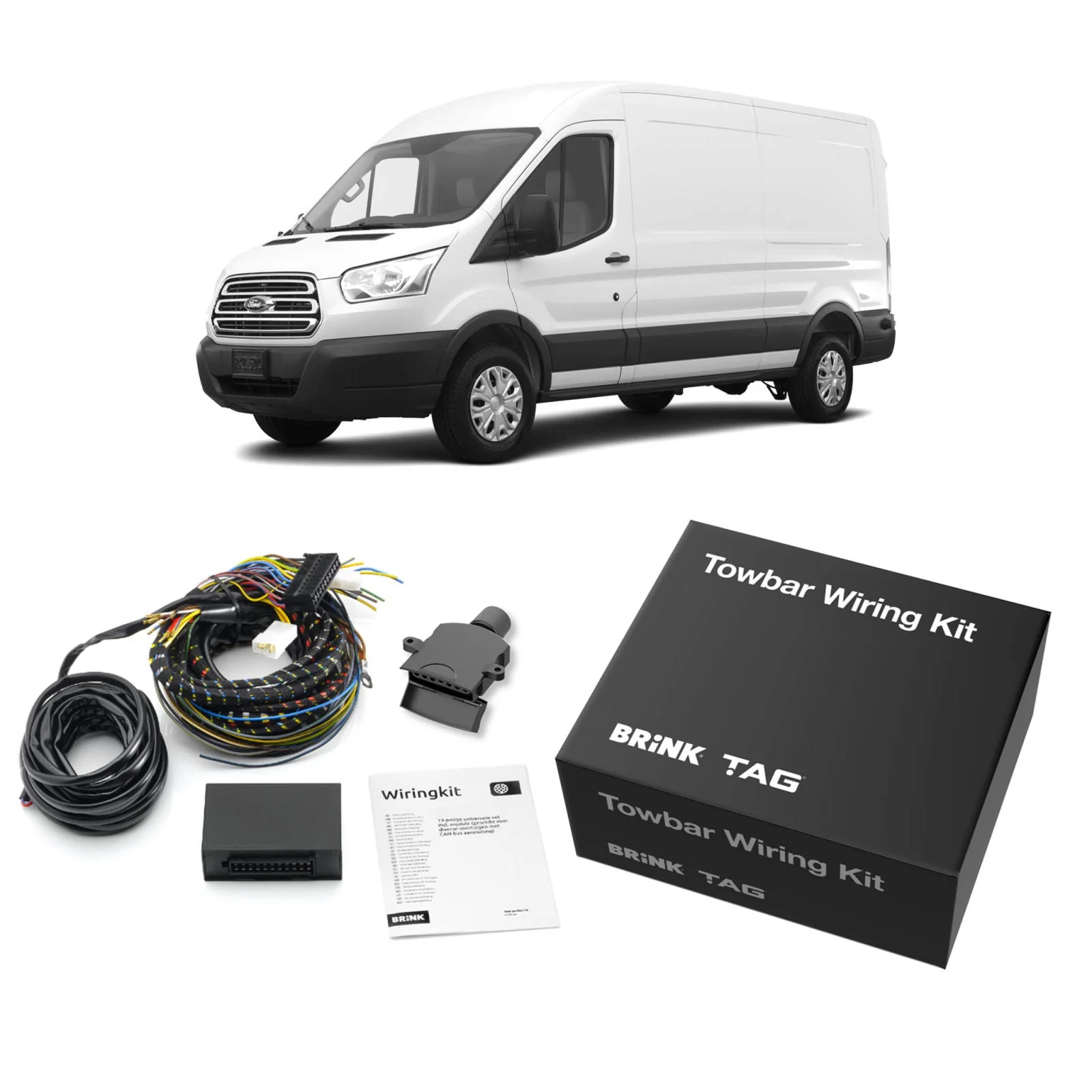

- Comprehensive Kit: Includes vehicle-specific harness, high-tech ECU module, and complete connection guides.
*Important Note: This harness requires the UNT032RS 7-Pin flat socket (normally closed circuits) for full functionality.
Specifications:
- Part Number: BR-712255
- Wiring Option: Direct Fit CAN-Bus Harness (Black CAN Connector Only)
- Fitting Time: 120 Minutes
- Reverse Sensor Cut Off: Automatic
- Fog Cut Off: Automatic
- Diagnostic Coding: Not Required
- Plug Connection: 7 Pin Flat Socket (Sold Separately - UNT032RS Required)
Important Information
- The image shown may not reflect the actual product
- Shipping times may vary depending on destination and stock availability
Vehicle Applications
| Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|---|
| FORD | TRANSIT | 06/2016 | 02/2024 | Bus | VO | BLHA | 2.0L | Diesel | EcoBlue | RWD |
| FORD | TRANSIT | 06/2016 | 02/2024 | Cab Chassis | VO | BLHA | 2.0L | Diesel | EcoBlue | RWD |
| FORD | TRANSIT | 06/2016 | 02/2024 | Van | VO | BLRA | 2.0L | Diesel | EcoBlue | FWD |
| FORD | TRANSIT | 06/2016 | 02/2024 | Van | VO | BLRA | 2.0L | Diesel | EcoBlue | RWD |
| FORD | TRANSIT | 06/2016 | 02/2024 | Van | Electric | RWD | ||
| FORD | TRANSIT | 06/2016 | 02/2024 | Van | . | ELEC | 0.0L | Electric | 420L BEV | Automatic FWD |
| FORD | TRANSIT | 06/2016 | 02/2024 | Van | VO | BLHA | 2.0L | Diesel | 350L | Automatic RWD |
| FORD | TRANSIT | 06/2016 | 02/2024 | Bus | VO | BLFB | 2.0L | Diesel | 410L | Automatic RWD |
| FORD | TRANSIT | 06/2016 | 02/2024 | Cab Chassis | VO | BKFB | 2.0L | Diesel | Manual RWD | |
| FORD | TRANSIT | 06/2016 | 02/2024 | Cab Chassis | VO | BLFB | 2.0L | Diesel | 350L | Automatic RWD |
| FORD | TRANSIT | 06/2016 | 02/2024 | Cab Chassis | VO | BLFB | 2.0L | Diesel | 430E | Automatic RWD |
| FORD | TRANSIT | 06/2016 | 02/2024 | Cab Chassis | VO | BLFB | 2.0L | Diesel | 470E | Manual RWD |
| FORD | TRANSIT | 06/2016 | 02/2024 | Van | VO | BLFB | 2.0L | Diesel | 430E | Automatic RWD |
| FORD | TRANSIT | 06/2016 | 02/2024 | Van | VM | M1FA | 1.0L | Hybrid (Petrol) | TOURNEO PHEV | Automatic/Manual FWD |
| FORD | TRANSIT | 06/2016 | 02/2024 | Cab Chassis | VO | BLRA | 2.0L | Diesel | 470E | Manual RWD |
| FORD | TRANSIT | 06/2016 | 02/2024 | Van | VO | BLFB | 2.0L | Diesel | 350E | Manual RWD |
| FORD | TRANSIT | 06/2016 | 02/2024 | Van | VO | BLFB | 2.0L | Diesel | 350L | Manual RWD |
| FORD | TRANSIT | 06/2016 | 02/2024 | Van | VO | YNR6 | 2.0L | Diesel | 470E | Manual RWD |
| FORD | TRANSIT | 06/2016 | 02/2024 | Van | VO | YNR6 | 2.0L | Diesel | 470E LWB Jumbo | Manual RWD |
| FORD | TRANSIT | 06/2016 | 02/2024 | Van | VO | YNF6 | 2.0L | Diesel | TDCi | RWD |
| FORD | TRANSIT | 06/2016 | 02/2024 | Van | VO | YNF6 | 2.0L | Diesel | 350L LWB | Automatic/Manual FWD |
| FORD | TRANSIT | 06/2016 | 02/2024 | Van | VO | YNR6 | 2.0L | Diesel | 350L LWB | Automatic/Manual RWD |
| FORD | TRANSIT | 06/2016 | 02/2024 | Van | VO | YNF6 | 2.0L | Diesel | TDCi | FWD |
| FORD | TRANSIT | 06/2016 | 02/2024 | Cab Chassis | VO | YNF6 | 2.0L | Diesel | Automatic FWD | |
| FORD | TRANSIT | 06/2016 | 02/2024 | Van | VO | CVRC | 2.2L | Diesel | Cargo | Manual RWD |
| FORD | TRANSIT | 06/2016 | 02/2024 | Van | VM | 2.0DT | 2.0L | Diesel | TOURNEO TREND | Automatic/Manual RWD |
| FORD | TRANSIT | 06/2016 | 02/2024 | Van | VO | BLHA | 2.0L | Diesel | 350E | Automatic RWD |
| FORD | TRANSIT | 06/2016 | 02/2024 | Van | VO | BLFB | 2.0L | Diesel | 350L | Automatic/Manual FWD |
| FORD | TRANSIT | 06/2016 | 02/2024 | Cab Chassis | VO | YNR6 | 2.0L | Diesel | 470E | Manual RWD |
