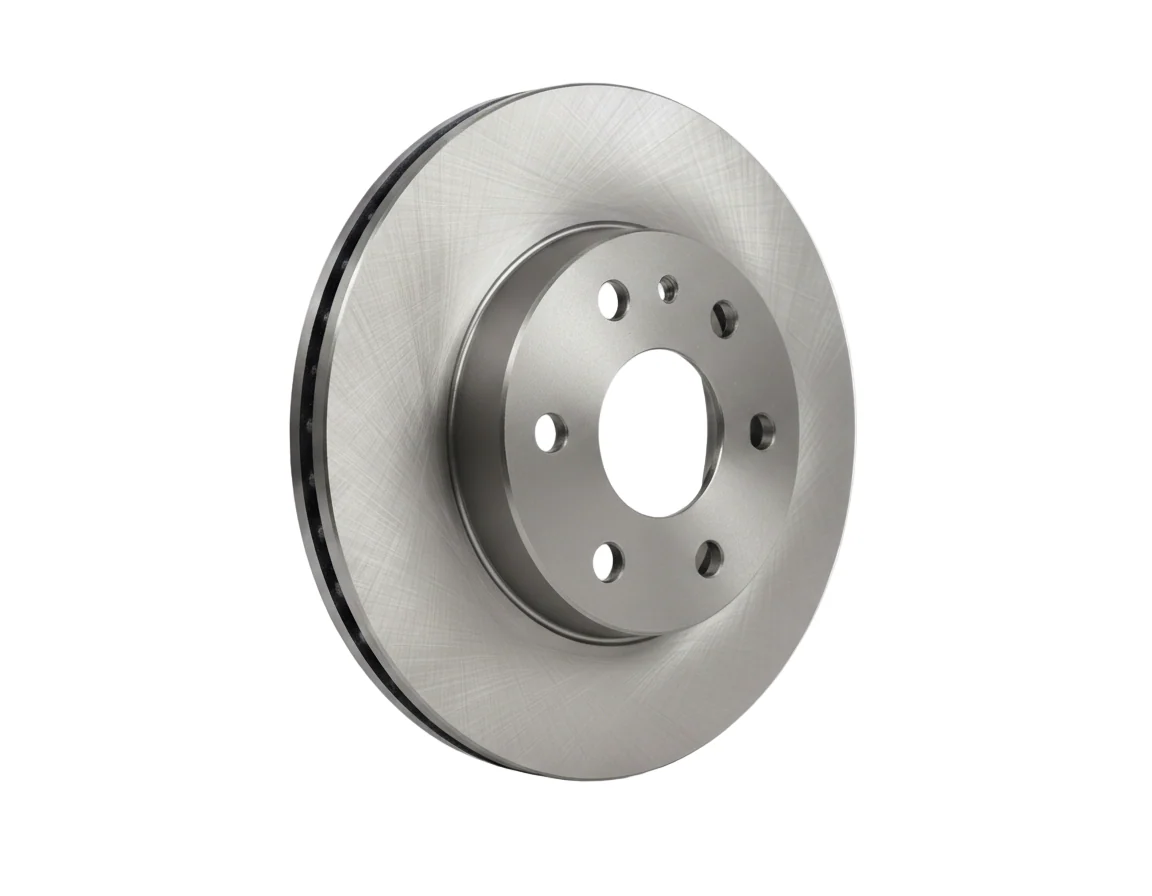

Ultima Front Vented Brake Disc Rotor (Single) for Mazda 3 BK SP23 2003–2009

The Ultima Front Vented Brake Disc Rotor (AAP2956) is a direct, high-performance replacement engineered specifically for the Mazda 3 SP23 (BK Series). With its Vented 300mm design, this rotor provides exceptional cooling and thermal stability under heavy braking, ensuring reliable, fade-free stopping power that meets or exceeds the vehicle's original equipment (OE) specifications.

Warranty

1 year / 20,000 km

Why Ultima?

Ultima braking components are manufactured using high-quality cast iron and precision engineering to deliver consistent and dependable performance. The AAP2956 Vented design maximizes air circulation, rapidly dissipating heat to prevent brake fade and prolong the life of your pads and rotors. This rotor is factory-balanced and finished for smooth, quiet operation and a seamless, direct-fit installation.

Key Features:

• Application: Front Vented Brake Disc Rotor for Mazda 3 SP23
• Design: Vented 300mm disc for superior heat dissipation and high-performance stability
• Material: Premium cast iron construction provides strength and resistance to warping
• Quality: Precision ground and dynamically balanced to minimize vibration and enhance brake pedal feel
• Fitment: Direct OE replacement, perfectly matching the larger front brake system on the SP23
• Unit of Measure: Sold individually (1 piece)

Technical Specifications (OE Spec)

• Brand: Ultima
• Part Number (SKU): AAP2956
• System Type: Front Brake Disc Rotor (Vented)
• Diameter (OD): 300 mm
• Thickness (New): 25 mm
• Minimum Thickness: 23 mm
• Centre Hole Diameter: 72 mm
• Bolt Holes: 5
• Position: Front
• Vehicle Model: Mazda 3
• Series: BK (SP23)
• Years: 2003–2009

Vehicle Fitment Information

Make	Model	Series	Engine	Years	Position
Mazda	3	BK SP23	2.3L (Hatch & Sedan)	2003–2009	Front
Mazda	3	BK	2.0L (Hatch & Sedan)*	2004–2009	Front
*Note: Fits vehicles with the 300mm front brake option. Many standard 2.0L models may use a smaller 278mm or 274mm rotor. Please confirm your existing disc diameter before ordering.

Important Information

• The image shown may not reflect the actual product
• Shipping times may vary depending on destination and stock availability
