XForce Split Dump Pipe & 100-Cell High-Flow Cat Kit - Nissan S14 & S15 200SX - E4-NS01-KITB

Optimize your turbocharger's efficiency with the XForce Split Dump Pipe and High-Flow Catalytic Converter kit, specifically designed for SR20DET-powered Nissan Silvia S14 and S15 models. This high-performance front-end kit replaces the restrictive factory dump pipe and catalytic converter. The split dump design features a 2.5" outlet that separates wastegate gases from the main turbine flow, significantly reducing turbulence and backpressure at the turbocharger exit. Combined with a 3" 100-cell metallic high-flow catalytic converter, this kit allows for faster turbo spool-up, improved throttle response, and increased power and torque across the entire rev range.

What's in the Box?

• 1x Split Dump Pipe (2.5" Outlet)
• 1x 3" 100-Cell High-Flow Metallic Catalytic Converter
• Installation Gaskets & Hardware

Features:

This product offers the following high-performance features:

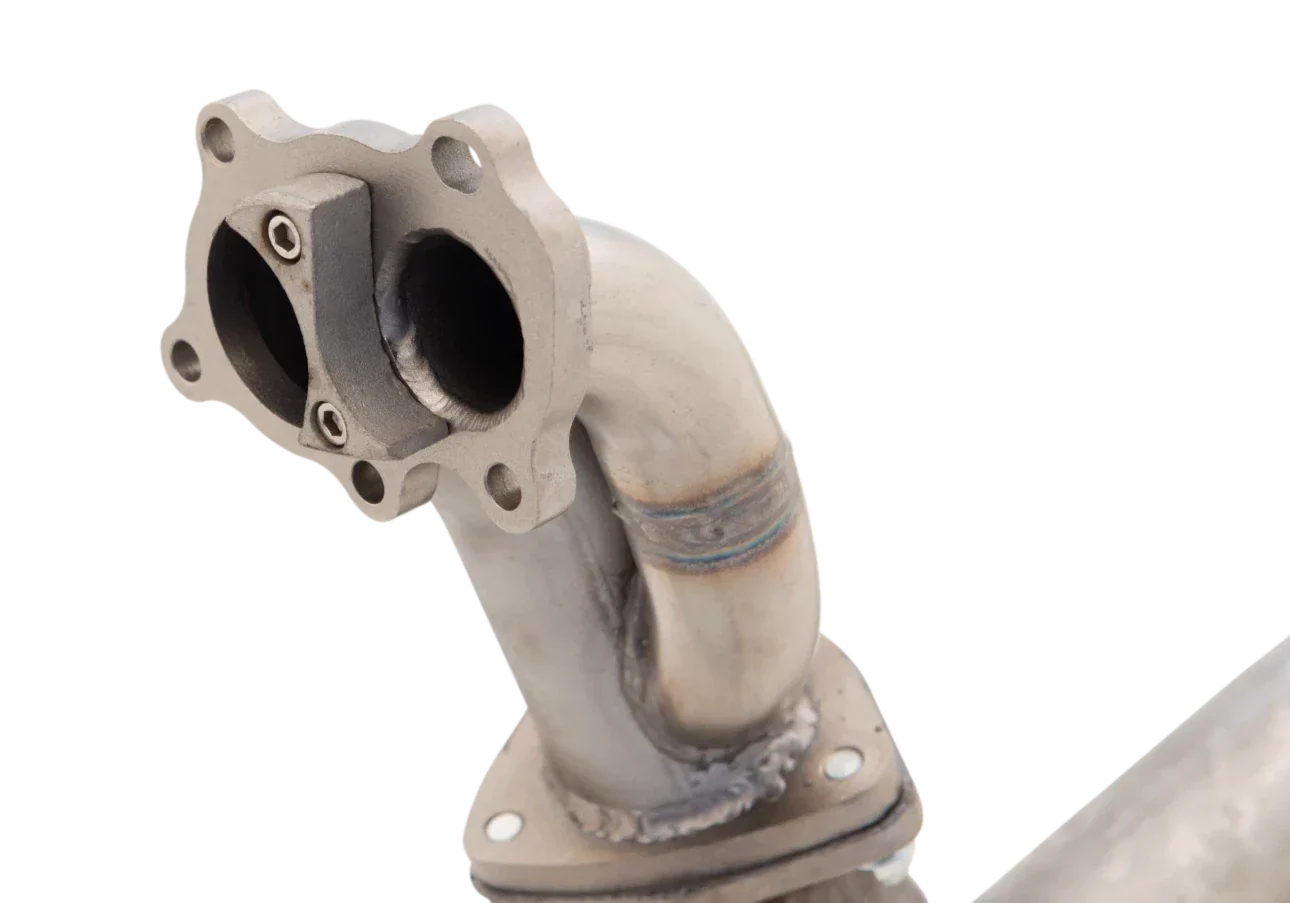

• Split Dump Design: Effectively isolates internal wastegate gases to prevent exhaust turbulence, resulting in smoother flow and quicker boost response.
• 100-Cell Metallic High-Flow Cat: Features a high-efficiency race-style substrate that maximizes exhaust gas velocity while providing significantly less restriction than factory units.
• Raw 409 Stainless Steel: Manufactured from industrial-grade 409 stainless steel for superior heat resistance and long-term durability in high-performance applications.
• 3" Main Pipework: The catalytic converter section features full 3-inch mandrel-bent piping to maintain consistent flow into your cat-back system.
• Bolt-On Performance: Designed to bolt directly to the factory turbocharger and line up with aftermarket 3-inch cat-back exhaust systems.

Specifications:

Important Information

• The image shown may not reflect the actual product
• Shipping times may vary depending on destination and stock availability
• Tuning: An ECU re-tune is highly recommended after installation to ensure optimal engine safety and performance.

Vehicle Applications:
