TAG Adjustable Heavy Duty Tow Ball Mount Solution for your Vehicle

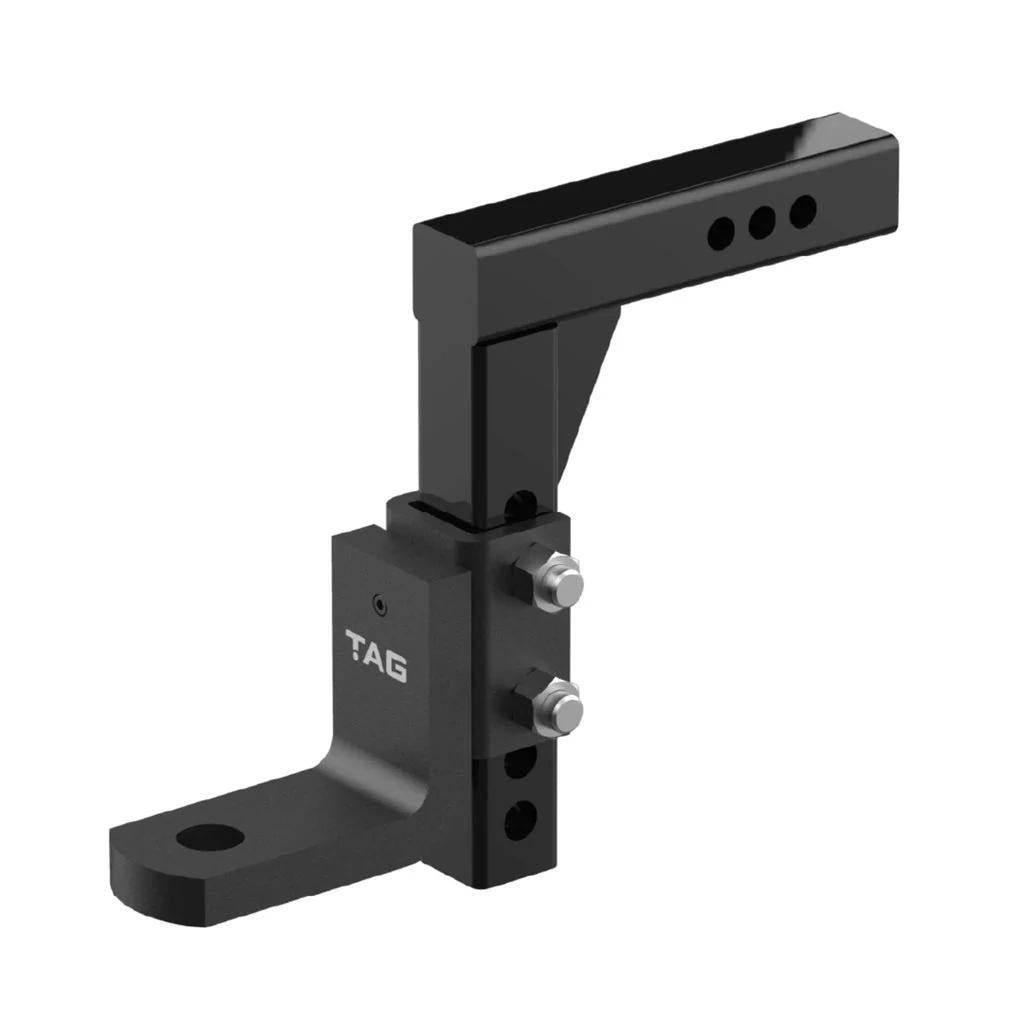

The TAG Adjustable Heavy Duty Tow Ball Mount (UNTTBM10) is engineered for vehicles requiring maximum height correction. Featuring an extra-long shank, this mount offers a massive 310mm drop or 335mm rise, ensuring your trailer remains perfectly level regardless of vehicle lift or trailer height. Built from solid steel with a durable powder-coated finish, it provides a professional-grade solution for heavy-duty towing up to 3500kg.
This Kit Includes:
- TAG Adjustable Tow Ball Mount Extra-Long Shank (50mm Square)
- 90° Adjustable Tongue Face
- Reducer Bush (Suits 50mm or 70mm Towballs)
- High-Tensile Nuts, Bolts, and Washers
TAG adjustable hitches are built for extreme versatility and long-term durability, featuring:

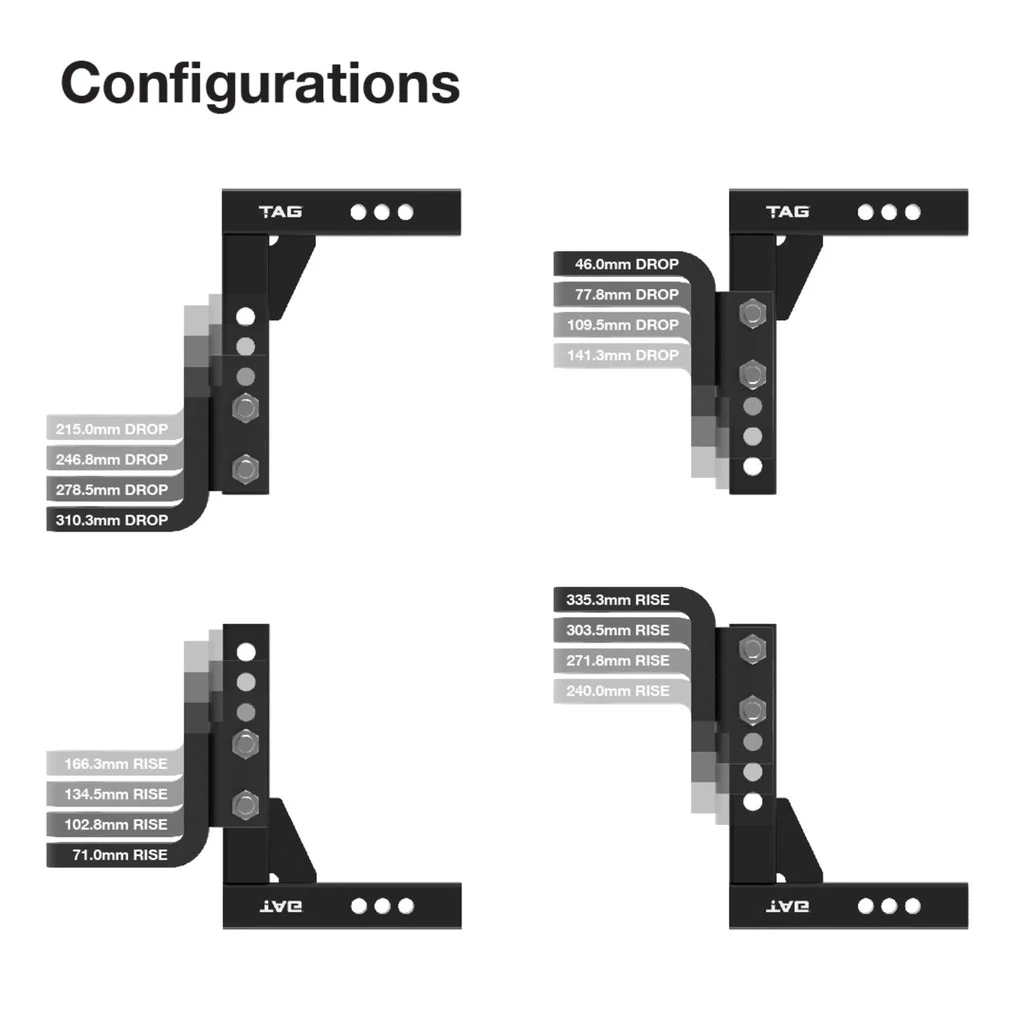

- Maximum Height Adjustment: The 90° separate tongue face offers four positions, providing a deep 310mm drop or a 335mm rise.
- Heavy-Duty 50mm Shank: Solid steel construction designed for Class 4 receivers and demanding towing conditions.
- 3.5T Towing Capacity: Rated for 3500kg Gross Trailer Weight and 350kg Ball Weight.
- ADR 62/02 Compliant: Fully tested to meet Australian Design Rules for total peace of mind on the road.
- Durable Protection: Powder-coated finish resists rust, corrosion, and chipping (note: finish may vary slightly between head and shank).
- Flexible Orientation: Easily switch between Drop and Rise modes to suit your specific towing requirements.
Please Note: Tow Ball, R-Clip, and Hitch Pin are sold separately. Always check your vehicle and towbar's maximum towing capacity. The attachment bolts require a torque specification of 441Nm for safe operation.
Specifications:
- Tow Ball Mount Class: Heavy Duty (Class 4)
- Hitch Type: 50mm Square
- Gross Trailer Weight [kg]: 3500
- Ball Weight [kg]: 350

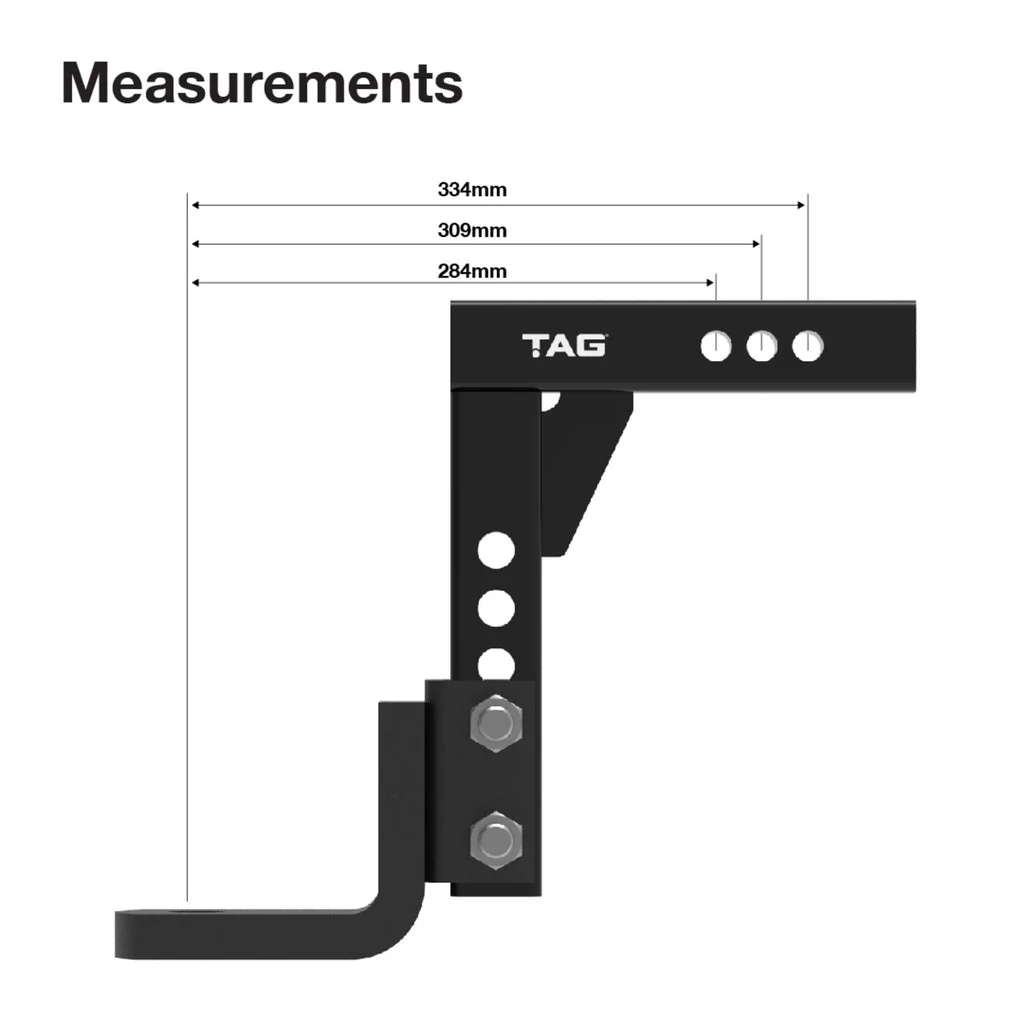

- Max Drop [mm]: 310
- Max Rise [mm]: 335
- Tongue Face: 90° Adjustable
- Torque Spec: 441Nm
- Warranty: TAG Limited Lifetime Warranty
