TAG | Heavy Duty Tow Ball Mount | 208mm Long 18mm Drop 50mm Square Hitch | L4045
TAG Heavy Duty Product Type/Name Solution for your 50mm Square Hitch Receiver

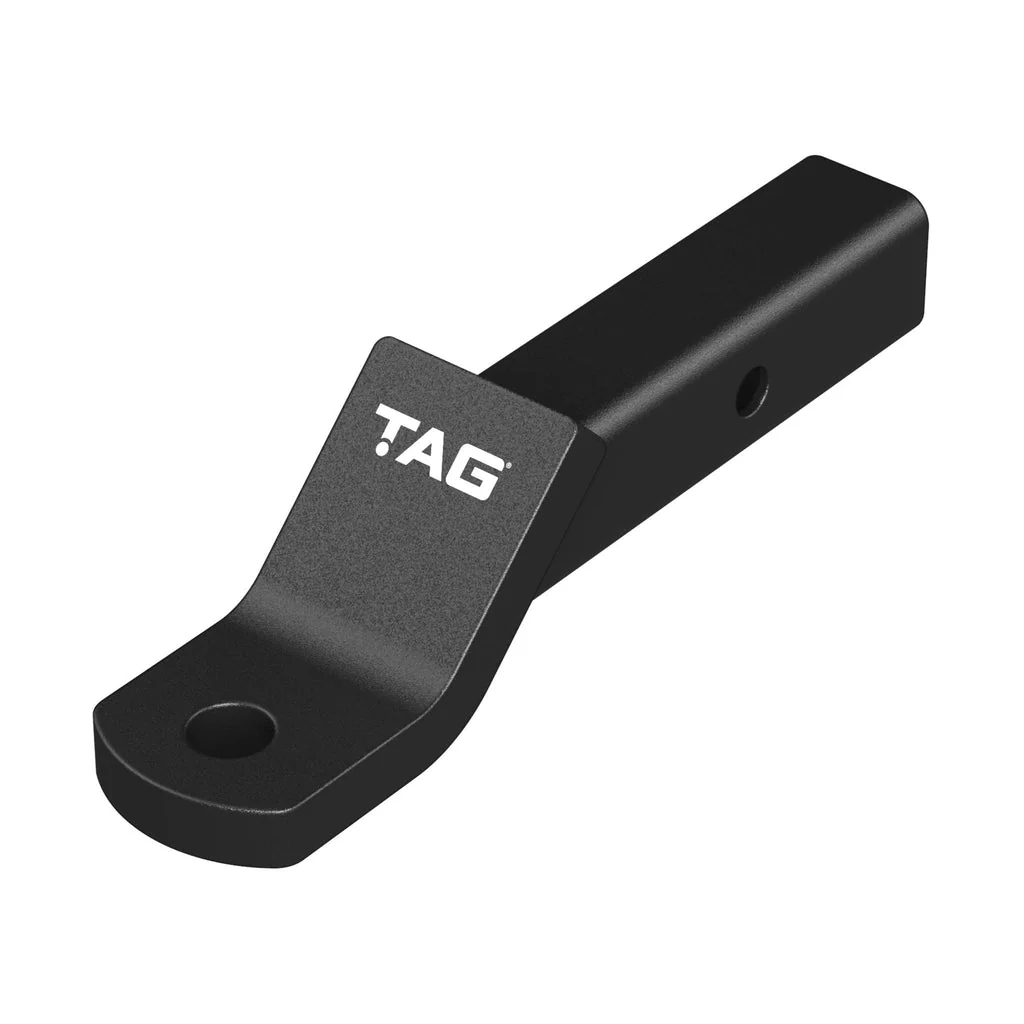

The TAG Tow Ball Mount (L4045) is a high-capacity, heavy-duty towing essential engineered for maximum reach and reliability. Precision-manufactured from drop-forged steel and robotically welded, this mount is designed to fit standard 50mm Square Hitch Receivers, making it a perfect match for heavy-duty towing applications.
Heavy-Duty Strength & Precision Reach
Boasting a massive 3500kg Gross Trailer Weight capacity, the L4045 is built for the most demanding tasks. Its unique 135° tongue face and extended 208mm length provide the necessary clearance for vehicles with rear-mounted spare tires or bulky bumpers, while the reversible design allows for an 18mm drop or rise to maintain a perfectly level trailer.
- Extreme Towing Capacity: Rated for a 3500kg Gross Trailer Weight and a 350kg Ball Weight, ideal for heavy caravans, boats, and trailers.
- Extended Length: A 208mm reach from the hitch pin hole to the tow ball hole provides extra clearance for vehicle accessories.
- Reversible Drop/Rise: Can be mounted in either Drop or Rise mode to provide an 18mm height adjustment for optimal trailer leveling.
- Superior Build: Manufactured using drop-forged steel, CNC milled, and robotically welded for absolute precision and strength.
- ADR Compliant: Fully compliant with ADR 62/02 safety standards and batch-marked for quality assurance.
- Durable Coating: Finished with a premium black powder coat to provide excellent resistance against corrosion and road wear.

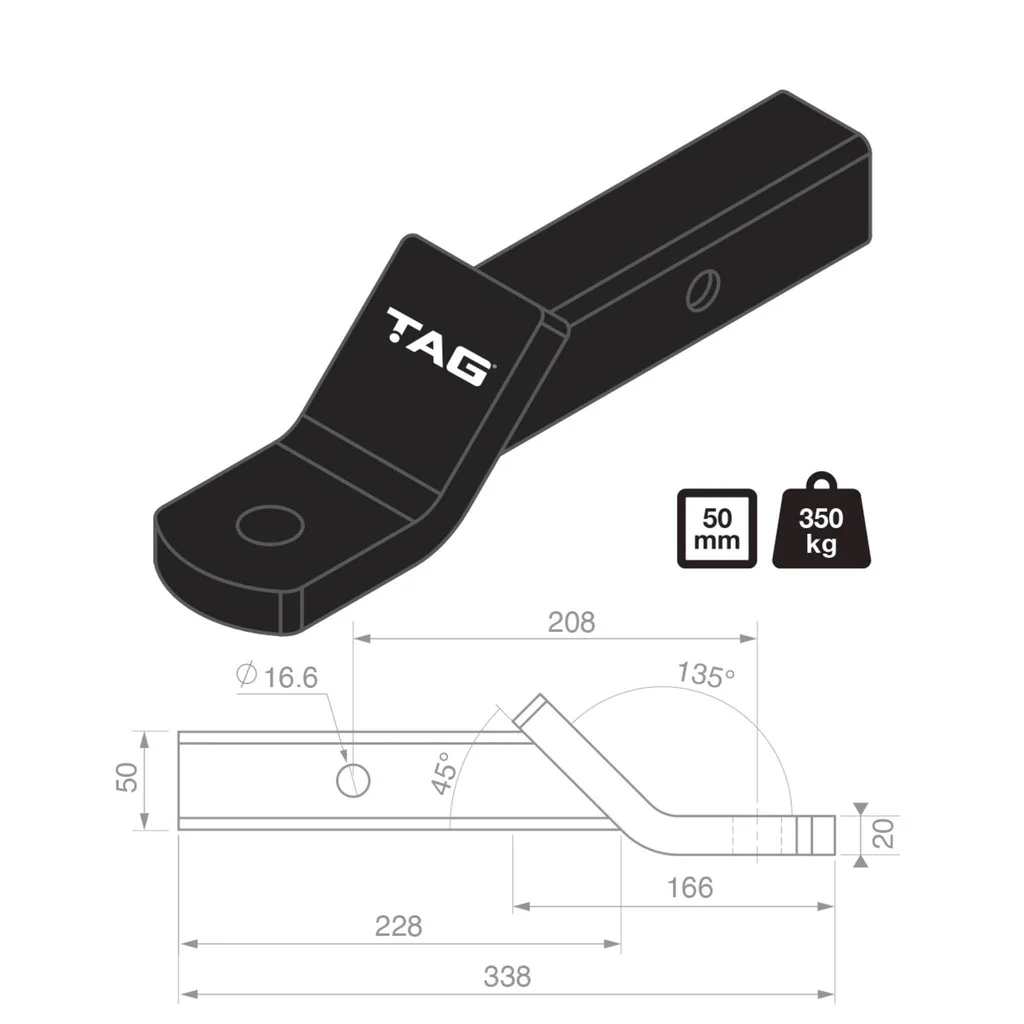

Specifications:
- Gross Trailer Weight [kg]: 3500
- Ball Weight [kg]: 350
- Drop/Rise: 18mm
- Length (Pin to Ball Hole): 208mm
- Hitch Type: 50mm Square Hitch (Class 4)
- Tongue Face: 135°
- Coating: Black Powder Coated
Important Information
- The image shown may not reflect the actual product
- Shipping times may vary depending on destination and stock availability
- Note: Tow Ball, R-Clip, and Hitch Pin are sold separately.
